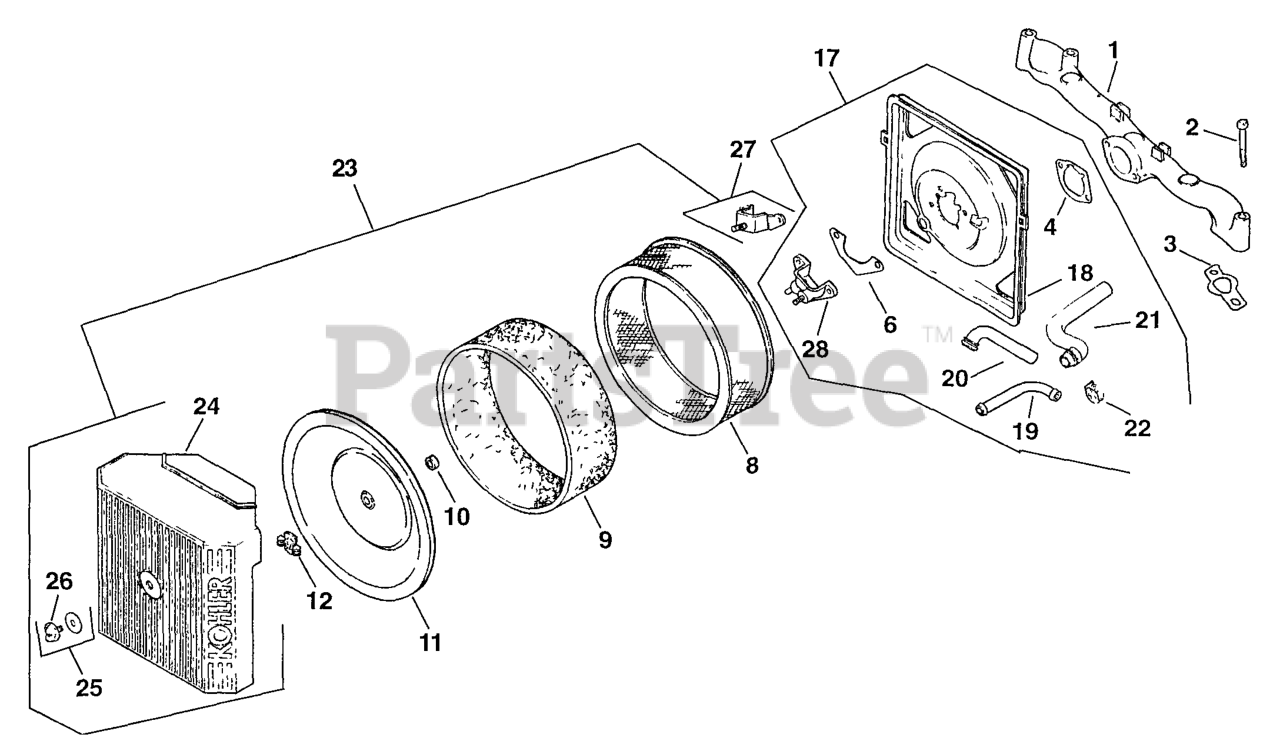

CV18-61526 - Kohler Command PRO Engine, Made for Toro, 18hp, 13.4kW Air Intake - Style B 10-24-402 (TP-2461) Rev 10/10/2006 Parts Diagram

Command PRO Engine, Made for Toro, 18hp, 13.4kW

Air Intake - Style B 10-24-402 (TP-2461) Rev 10/10/2006 Parts Diagram

  • Title

1

Kohler 24 164 06-S

MANIFOLD, INTAKE

$221.99

$

Usually ships in 2-5 days

0

2

Kohler M-0651055

Screw, hex. flange M6x1.0x55
(Superseded to 25 086 766-S)

$1.99

$

In Stock, Qty 20+

0

3

Kohler 24 041 01-S

GASKET, INTAKE MANIFOLD USE 24 041 79-S
(Superseded to 24 041 79-S)

$2.99

$

In Stock, Qty 9

0

4

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 9

0

6

Kohler 24 041 13-S

GASKET, FUEL SPITBACK CUP

$5.99

$

In Stock, only 1 left!

0

8

Kohler 47 083 03-S

ELEMENT, AIR CLEANER - Also available Retail Packaged 47 883 03-S1 Air Filter Kit

$23.99

$

In Stock, Qty 20+

0

9

Kohler 24 083 02-S

ELEMENT, PRECLEANER (LOW)

$6.99

$

Usually ships in 2-5 days

0

10

Kohler 24 032 03-S

SEAL, INNER AIR CLEANER

$4.99

$

In Stock, Qty 9

0

11

Kohler 24 096 01-S

COVER, INNER AIR CLEANER

$16.99

$

Usually ships in 2-5 days

0

12

Kohler 12 100 01-S

NUT, WING

$3.99

$

In Stock, only 4 left!

0

17

Kohler 24 755 86-S

KIT, AIR CLEANER BASE

Note: Includes 4,6,18-22,28. Use before Serial No. 25233000017; after Serial No. 2523300007 or after installation of kit, individual kit components may be ordered for replacement

$140.99

$

Usually ships in 2-5 days

0

18

Kohler 24 094 14

BASE - USE 24 094 19
(Superseded to 24 094 86-S)

Note: Use after Serial No. 25233300007

$81.99

$

Usually ships in 2-5 days

0

19

Kohler 24 294 06-S

FITTING

$13.99

$

In Stock, only 1 left!

0

20

Kohler 24 326 13-S

HOSE, BREATHER-USE 24 326 86-S
(Superseded to 24 326 86-S)

$8.99

$

In Stock, only 1 left!

0

21

Kohler 24 326 14-S

HOSE, BREATHER-USE 24 326 87-S
(Superseded to 24 326 87-S)

$10.99

$

In Stock, only 1 left!

0

22

Kohler X-426-9-S

CLAMP, HOSE 1/2" USE 25 237 14-S
(Superseded to 25 237 14-S)

$4.99

$

In Stock, only 3 left!

0

23

Kohler 24 743 05-S

KIT, AIR CLEANER COVER

Note: Includes 24-27

$89.99

$

In Stock, only 1 left!

0

24

Kohler 24 096 24-S

USE 24 096 67-S A/C COVER
(Superseded to 24 096 67-S)

$47.99

$

In Stock, only 1 left!

0

25

Kohler 24 755 91

KIT - USE 54 755 01
(Superseded to 54 755 01)

Note: Includes 26

$9.49

$

In Stock, Qty 6

0

26

Kohler 25 341 02

KNOB - USE 25 341 03
(Superseded to 25 341 03)

$8.49

$

In Stock, only 2 left!

0

28

Kohler 24 109 06

CUP - USE 24 109 10
(Superseded to 24 109 26-S)

Note: 24.5 mm stud CV18-22. Use after Serial No. 2523300007

$21.99

$

In Stock, only 2 left!

0
