CV17-72513 - Kohler Command PRO Engine, Made for Kubota, 17hp, 12.7kW Air Intake/Filtration 10-24-159 Parts Diagram

Command PRO Engine, Made for Kubota, 17hp, 12.7kW

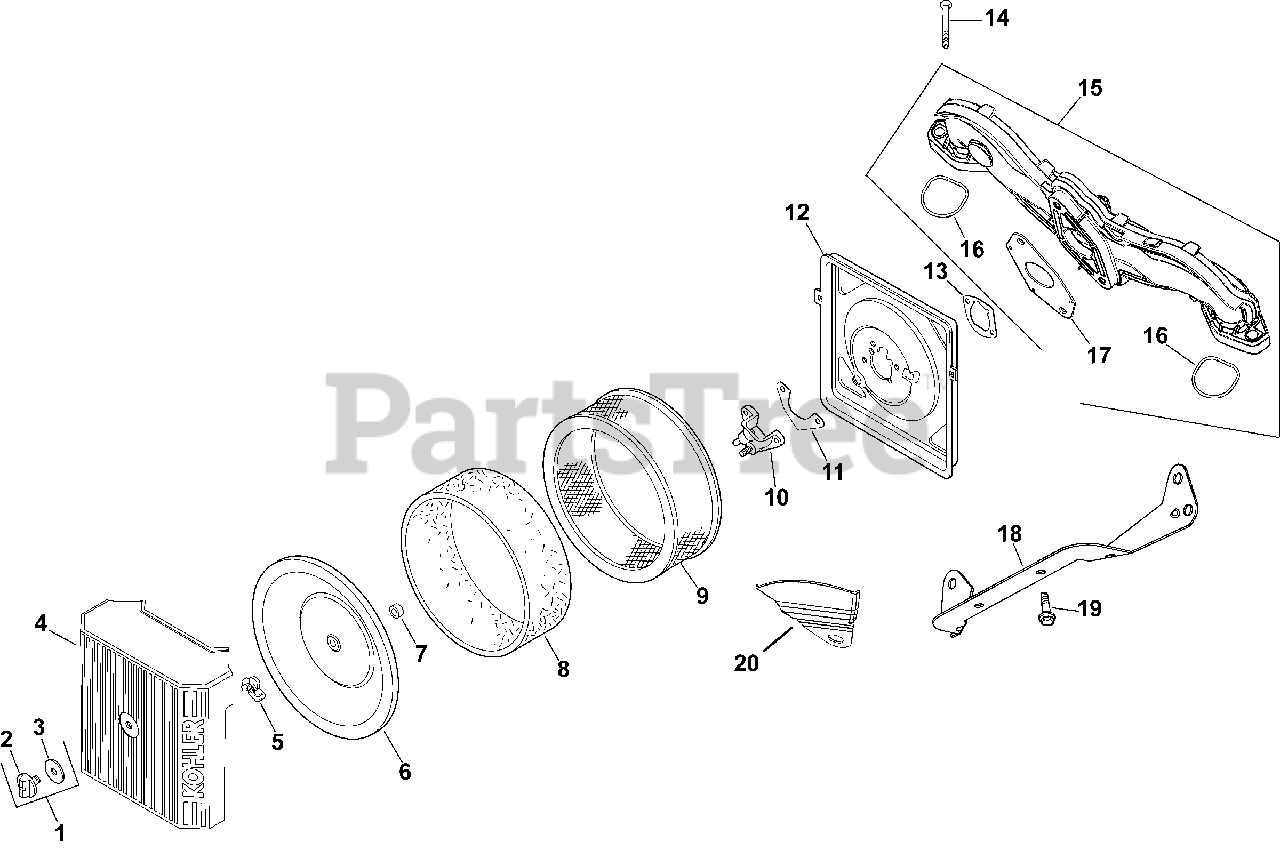

Air Intake/Filtration 10-24-159 Parts Diagram

  • Title

1

Kohler 54 755 01-S

KIT, KNOB W/SEAL

Note: (Includes 2,3)

$9.49

$

In Stock, Qty 6

0

2

Kohler 20 341 01-S

KNOB, AIR CLEANER COVER-USE 25 341 04-S
(Superseded to 25 341 04-S)

$7.99

$

Usually ships in 2-5 days

0

3

Kohler 24 153 20-S

O-RING

$2.49

$

In Stock, Qty 10

0

4

Kohler 24 096 70-S

COVER, AIR CLEANER

$51.99

$

Usually ships in 2-5 days

0

5

Kohler 12 100 01-S

NUT, WING

$3.99

$

In Stock, only 4 left!

0

6

Kohler 24 096 01-S

COVER, INNER AIR CLEANER

$16.99

$

In Stock, only 1 left!

0

7

Kohler 24 032 03-S

SEAL, INNER AIR CLEANER

$4.99

$

In Stock, Qty 9

0

8

Kohler 24 083 02-S

ELEMENT, PRECLEANER (LOW)

$6.99

$

Usually ships in 2-5 days

0

9

Kohler 47 083 03-S

ELEMENT, AIR CLEANER - Also available Retail Packaged 47 883 03-S1 Air Filter Kit

$23.99

$

In Stock, Qty 20+

0

10

Kohler 24 109 10-S

CUP, SPITBACK W/STUD-USE 24 109 26-S
(Superseded to 24 109 26-S)

$22.99

$

In Stock, only 2 left!

0

11

Kohler 24 041 13-S

GASKET, FUEL SPITBACK CUP

$5.99

$

In Stock, only 1 left!

0

12

Kohler 24 094 33-S

BASE, AIR CLEANER-USE 24 094 87-S
(Superseded to 24 094 87-S)

$85.99

$

Usually ships in 2-5 days

0

13

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 9

0

14

Kohler M-651040-S

SCREW, FLG M6X1.0X40

$2.49

$

In Stock, Qty 12

0

15

Kohler 24 164 51-S

MANIFOLD, INTAKE - PLASTIC-USE 24 164 91
(Superseded to 24 164 91-S)

Note: (Includes 16,17)

$184.99

$

In Stock, only 1 left!

0

16

Kohler 24 153 27-S

O-RING, INTAKE PORT

$3.99

$

In Stock, Qty 8

0

17

Kohler 24 041 52-S

GASKET, CARBURETOR
(Superseded to 24 041 91-S)

$5.49

$

In Stock, Qty 8

0

18

Kohler 24 126 130-S

BRACKET, AIR CLEANER BASE

$10.99

$

In Stock, only 4 left!

0

19

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 3 left!

0

20

Kohler 24 063 51-S

BAFFLE, SPIT-BACK CUP-USE 24 063 105-S
(Superseded to 24 063 105-S)

$8.99

$

Usually ships in 2-5 days

0
