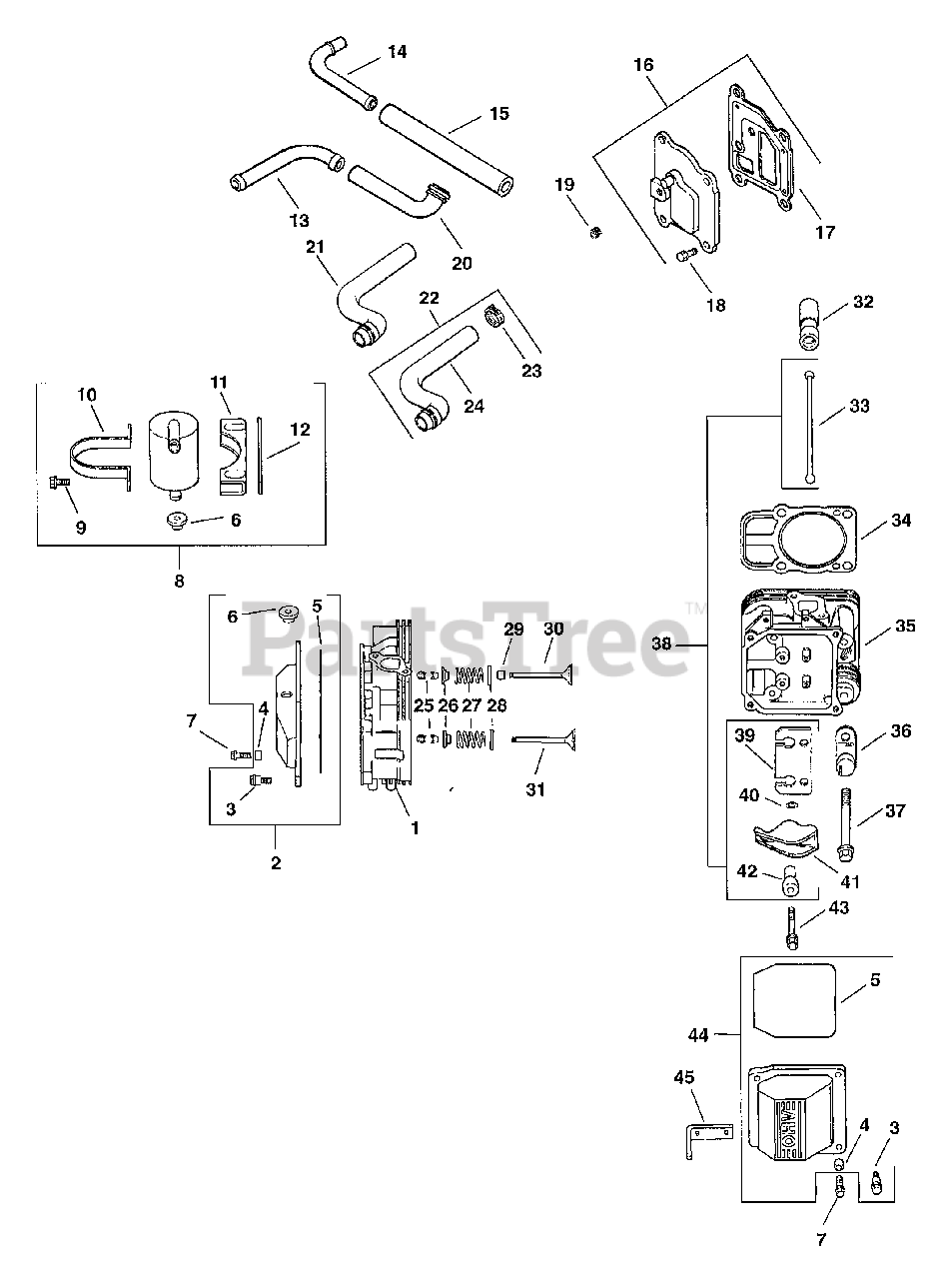

CV17-72510 - Kohler Command PRO Engine, Made for Rich Mfg., 17hp, 12.7kW Head/Valve/Breather - Style "A" 4-24-29 (TP-2461) Rev 10/11/2006 Parts Diagram

Command PRO Engine, Made for Rich Mfg., 17hp, 12.7kW

Head/Valve/Breather - Style "A" 4-24-29 (TP-2461) Rev 10/11/2006 Parts Diagram

  • Title

1

Kohler 24 318 11-S

USE 24 318 67-S CYL HEAD ASSY
(Superseded to 24 318 67-S)

$240.99

$

Usually ships in 2-5 days

0

2

Kohler 24 755 76-S

VALVE COVER KIT-USE 24 755 142-S
(Superseded to 24 755 142-S)

Note: Includes 3,4[qty 4],5,6

$38.99

$

In Stock, only 1 left!

0

3

Kohler 24 086 32-S

SCREW, SHOULDER

$2.99

$

In Stock, Qty 11

0

4

Kohler 24 112 08-S

SPACER

$4.49

$

Usually ships in 2-5 days

0

5

Kohler 24 153 12

O-RING - USE 24 153 16
(Superseded to 24 153 16)

$18.99

$

In Stock, only 2 left!

0

6

Kohler 25 313 02-S

USE 25 313 03-S GROMMET
(Superseded to 25 313 03-S)

$11.99

$

In Stock, only 3 left!

0

7

Kohler M-0651030

SCREW - USE M-651030
(Superseded to M-651030-S)

$

$

Not available

8

Kohler 24 755 57-S

KIT, BREATHR SEPARATR-(#24755241S)
(Superseded to 24 755 241-S)

Note: Includes 6,9-12

$90.99

$

In Stock, Qty 7

0

9

Kohler M-0545016

SCREW - USE M-545016
(Superseded to M-545016)

Note: Use Before Serial No. 241390017

$2.49

$

In Stock, Qty 15

0

9

Kohler 24 086 27

SCREW - USE M-449020
(Superseded to 24 086 18-S)

Note: Use After Serial No. 2413900007

$2.49

$

Usually ships in 2-5 days

0

10

Kohler 24 445 02-S

STRAP, BREATHER - USE 24 755 241-S
(Superseded to 24 755 241-S)

$90.99

$

In Stock, Qty 7

0

11

Kohler 24 126 44-S

BRACKET, BREATHER SEPARATOR

$5.49

$

Usually ships in 2-5 days

0

12

Kohler 24 112 12-S

SPACER
(Superseded to 24 755 241-S)

$90.99

$

In Stock, Qty 7

0

14

Kohler 24 294 01-S

FITTING

$24.99

$

Usually ships in 2-5 days

0

15

Kohler 24 326 03-S

HOSE, BREATHER (WAWB)-USE 24 326 63-S
(Superseded to 24 326 63-S)

$6.99

$

In Stock, only 2 left!

0

16

Kohler 24 033 03-S

KIT, BREATHER COVER W/GASKET

Note: Includes 17

$32.99

$

In Stock, only 1 left!

0

17

Kohler 24 041 23-S

USE 24 041 50-S BREATHR GASKET
(Superseded to 24 041 67-S)

$13.99

$

In Stock, Qty 9

0

18

Kohler M-0645020

SCREW - USE M-645020
(Superseded to M-645020)

$2.49

$

In Stock, only 1 left!

0

25

Kohler 12 755 03-S

KIT, RETAINER

$5.99

$

In Stock, only 2 left!

0

26

Kohler 12 173 01-S

RETAINER, VALVE SPRING - USE 25 173 28-S
(Superseded to 25 173 28-S)

$8.49

$

In Stock, Qty 5

0

27

Kohler 24 089 02-S

SPRING, VALVE

$7.99

$

In Stock, only 2 left!

0

28

Kohler 235011-S

RETAINER, SPRING

$6.49

$

In Stock, only 2 left!

0

29

Kohler 24 032 05-S

USE 66 032 05-S SEAL
(Superseded to 66 032 05-S)

$11.99

$

In Stock, only 2 left!

0

30

Kohler 24 017 01-S

VALVE, INTAKE (STD)

$30.99

$

In Stock, Qty 17

0

30

Kohler 24 017 02-S

VALVE, INTAKE (.25)

$

$

Not available

31

Kohler 24 016 01-S

VALVE, EXHAUST (STD) - USE 32 016 01-S
(Superseded to 32 016 01-S)

$15.99

$

In Stock, only 4 left!

0

31

Kohler 24 016 02-S

VALVE, EXHAUST (.25)
(Superseded to 32 016 02-S)

$15.99

$

In Stock, only 3 left!

0

32

Kohler 12 351 01

LIFTER - USE 12 351 02
(Superseded to 12 351 02)

$23.99

$

In Stock, only 4 left!

0

33

Kohler 24 411 04

KIT - USE 24 755 66
(Superseded to 24 755 66)

$45.99

$

In Stock, only 3 left!

0

34

Kohler 24 041 08-S

USE 24 841 01-S KIT
(Superseded to 24 841 01-S)

$45.99

$

Usually ships in 2-5 days

0

35

Kohler 24 318 12-S

USE 24 318 70-S CYL HEAD ASSY
(Superseded to 24 318 70-S)

$240.99

$

Usually ships in 2-5 days

0

37

Kohler 12 086 16-S

SCREW - USE 62 086 08-S
(Superseded to 62 086 08-S)

$5.99

$

In Stock, Qty 5

0

38

Kohler 24 755 61

KIT - USE 24 755 66
(Superseded to 24 755 66)

Note: Includes 33,39-42. Use before Serial No. 2424400017; after Serial No. 2424400007 or after installation of kit, individual marked* parts may be ordered for replacement.

$45.99

$

In Stock, only 3 left!

0

39

Kohler 24 146 09

KIT - USE 24 755 66
(Superseded to 24 755 66)

Note: Use after Serial No. 2424400007

$45.99

$

In Stock, only 3 left!

0

41

Kohler 24 186 03

ROCKER ARM - SEE PARTS BULLETINS 182 FOR TWINS AND 200 FOR SINGLES
(Superseded to 12 755 74-S)

Note: Use after Serial No. 2424400007

$47.99

$

Usually ships in 2-5 days

0

42

Kohler 24 194 03

KIT - USE 24 755 66
(Superseded to 24 755 66)

$45.99

$

In Stock, only 3 left!

0

43

Kohler M-0640034

Screw, hex. flange M6x1.0x34

$

$

Not available

44

Kohler 24 755 74-S

ROCKER COVER KIT-USE 24 755 141-S
(Superseded to 24 755 141-S)

Note: Includes 3,4[qty 4],5,6

$35.99

$

In Stock, only 2 left!

0

45

Kohler 24 445 01-S

STRAP, LIFTING-USE 25 445 03-S
(Superseded to 25 445 03-S)

$

$

Not available
