CV16-43530 - Kohler Command PRO Engine, Made for Fhp, 16hp, 11.9kW Oil Pan/Lubrication 3-27-119 Parts Diagram

Command PRO Engine, Made for Fhp, 16hp, 11.9kW

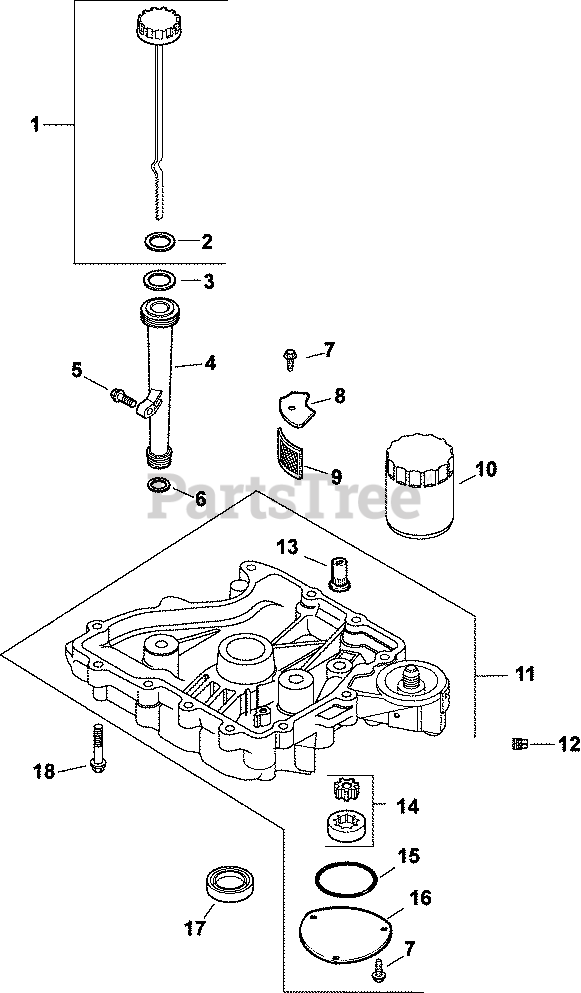

Oil Pan/Lubrication 3-27-119 Parts Diagram

  • Title

1

Kohler 12 038 01-S

DIPSTICK/CAP ASSY (BLACK)

Note: (INCLUDES 2)

$24.99

$

In Stock, only 2 left!

0

2

Kohler 25 153 02-S

O-RING, DIPSTICK

$2.49

$

In Stock, only 1 left!

0

3

Kohler 12 153 02-S

O-RING, UPPER OIL FILL TUBE

$2.49

$

In Stock, Qty 8

0

4

Kohler 12 123 04-S

TUBE, OIL FILL USE 25 123 07-S
(Superseded to 25 123 07-S)

$16.99

$

In Stock, only 1 left!

0

5

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

6

Kohler 12 153 01-S

O-RING, LOWER OIL FILL TUBE

$4.99

$

In Stock, Qty 17

0

7

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

8

Kohler 12 096 03-S

COVER

$13.99

$

In Stock, only 1 left!

0

9

Kohler 25 162 07-S

SCREEN, OIL-USE 24 162 26-S
(Superseded to 24 162 26-S)

$17.99

$

In Stock, only 1 left!

0

10

Kohler 12 050 01-S

OIL FILTER

$13.99

$

In Stock, Qty 20+

0

11

Kohler 12 199 56-S

OIL PAN - DISCONTINUED

$

$

Not available

12

Kohler 25 139 57-S

PLUG, SQ HD PIPE 3/8"

$2.49

$

In Stock, only 3 left!

0

13

Kohler 25 462 09-S

VALVE, OIL PRESSURE RELIEF

$13.99

$

In Stock, only 1 left!

0

14

Kohler 12 393 01-S

PUMP ASSEMBLY, OIL - DISCONTINUED

$

$

Not available

15

Kohler 12 153 06-S

O-RING (2.5" DIA)

$3.99

$

In Stock, only 4 left!

0

16

Kohler 12 096 34-S

COVER, OIL PUMP

$14.99

$

In Stock, only 1 left!

0

17

Kohler 12 032 03-S

SEAL, OIL

$9.99

$

Usually ships in 2-5 days

0

18

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.49

$

In Stock, Qty 5

0
