CV16-43526 - Kohler Command PRO Engine, Made for John Deere, 16hp, 11.9kW Fuel System 8-27-181 Parts Diagram

Command PRO Engine, Made for John Deere, 16hp, 11.9kW

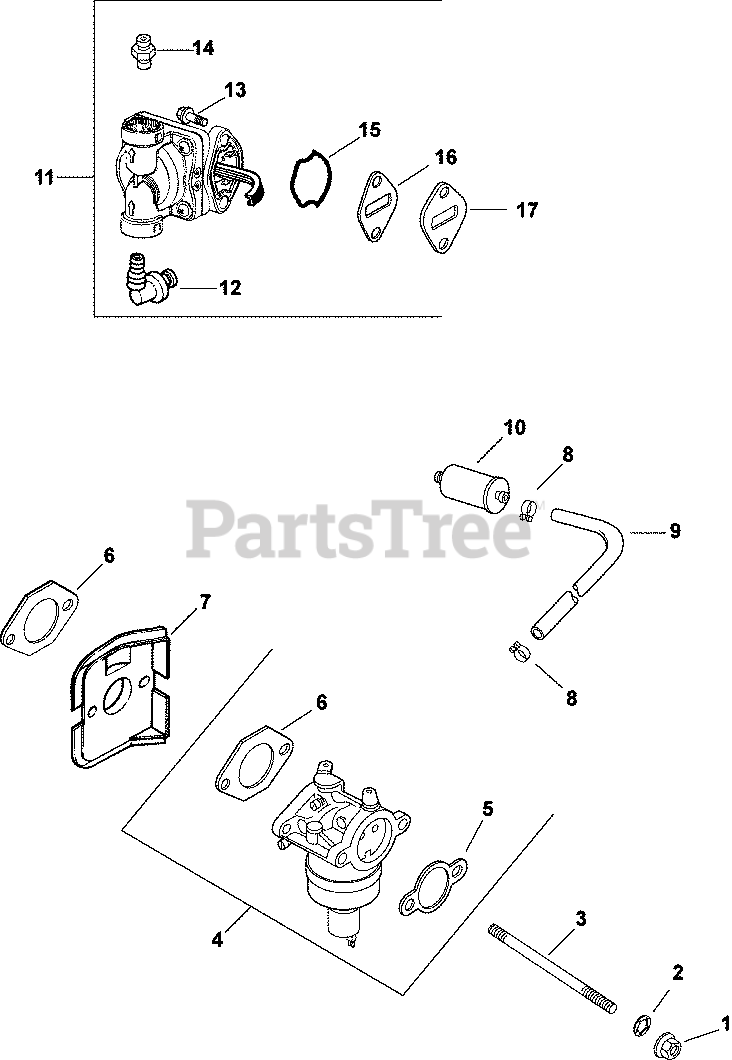

Fuel System 8-27-181 Parts Diagram

  • Title
1

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 6

0

2

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

$2.49

$

In Stock, only 3 left!

0

3

Kohler M-629116-S

STUD,M6X1.0X116

$3.49

$

In Stock, only 2 left!

0

4

Kohler 42 853 03-S

KIT, CARBURETOR W/GASKETS

Note: (includes 5,6, 25 452 20-S & 12 454 03-S)

$348.99

$

In Stock, only 1 left!

0

5

Kohler 12 041 02-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 5

0

6

Kohler 12 041 01-S

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 14

0

7

Kohler 12 265 08-S

DEFLECTOR, HEAT

$9.49

$

In Stock, only 2 left!

0

8

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

9

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, only 4 left!

0

10

Kohler 25 050 21-S

FILTR,FUEL 75 MICRON (GRAVTY FEED)

$8.99

$

In Stock, Qty 20+

0

NI

Kohler 12 755 92-S

KIT, HIGH ALTITUDE (+10,000 FT)

$15.99

$

Usually ships in 2-5 days

0

NI

Kohler 12 757 02-S

KIT, REPAIR FLOAT

$13.99

$

In Stock, only 3 left!

0

NI

Kohler 12 757 08-S

KIT, CHOKE REPAIR

$36.99

$

Usually ships in 2-5 days

0

NI

Kohler 12 757 33-S

KIT, REPAIR SOLENOID

$135.99

$

In Stock, only 1 left!

0

1245403-S

Kohler 12 454 03-S

TIE, CABLE

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

2545403-S

Kohler 25 454 03-S

TIE, WIRE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

M-561010-S

Kohler M-561010-S

SCREW, THRD FRM M5X0.8X10

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2514106-S

Kohler 25 141 06-S

TOOL, INSTALLATION (SNAP RING)

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2545220-S

Kohler 25 452 20-S

TERMINAL

Note: NOT ILLUSTRATED

$4.99

$

Usually ships in 2-5 days

0

1252104-S

Kohler 12 521 04-S

KIT, INLET SEAT (PRESSURE) CMD

Note: NOT ILLUSTRATED

$60.99

$

In Stock, only 1 left!

0

NI

Kohler 12 757 03-S

KIT, REPAIR CARB (PUMP FEED)

$35.99

$

In Stock, Qty 7

0
