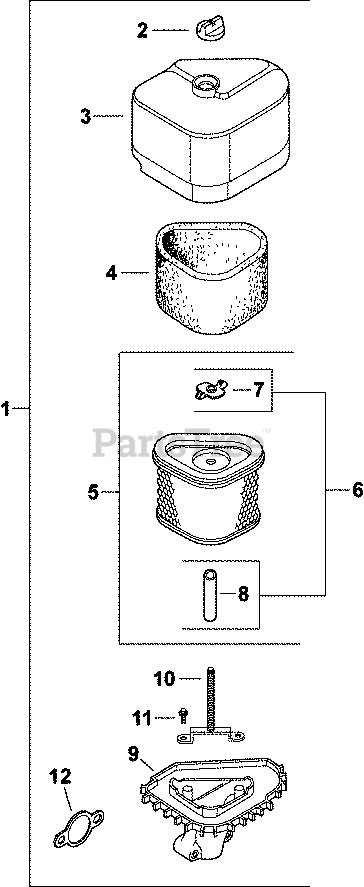

CV16-43518 - Kohler Command PRO Engine, Made for John Deere, 16hp, 11.9kW Air Intake/Filtration 10-27-39 Parts Diagram

Command PRO Engine, Made for John Deere, 16hp, 11.9kW

Air Intake/Filtration 10-27-39 Parts Diagram

  • Title

1

Kohler 12 743 04-S

KIT, AIR CLEANER

Note: (includes 2-12 & 12 281 02-S)

$

$

Not available

2

Kohler 25 341 04-S

KNOB, COVER

$7.99

$

Usually ships in 2-5 days

0

3

Kohler 12 096 44-S

COVER, AIR CLEANER

$

$

Not available

4

Kohler 12 083 08-S

PRE-CLEANER

$6.99

$

In Stock, Qty 10

0

5

Kohler 12 083 05-S

ELEMENT W/SEAL KIT - Also available Retail Packaged 12 883 05-S1 Air Filter Kit

$19.99

$

In Stock, Qty 6

0

6

Kohler 12 743 11-S

KIT, AIR CLEANER SEAL

Note: (includes 7,8)

$2.99

$

Usually ships in 2-5 days

0

7

Kohler 12 100 01-S

NUT, WING

$3.99

$

In Stock, only 2 left!

0

8

Kohler 12 032 10-S

SEAL

$4.49

$

Usually ships in 2-5 days

0

9

Kohler 12 094 17-S

BASE, AIR CLEANER

$

$

Not available

10

Kohler 12 072 05-S

STUD, MOUNTING PLATE

$8.99

$

In Stock, only 1 left!

0

11

Kohler 12 086 01-S

SCREW, THD FRM #10 HI-LO

$4.49

$

In Stock, Qty 6

0

12

Kohler 12 041 02-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 5

0

1228102-S

Kohler 12 281 02-S

DUCT, AIR

Note: NOT ILLUSTRATED

$14.99

$

In Stock, only 1 left!

0
