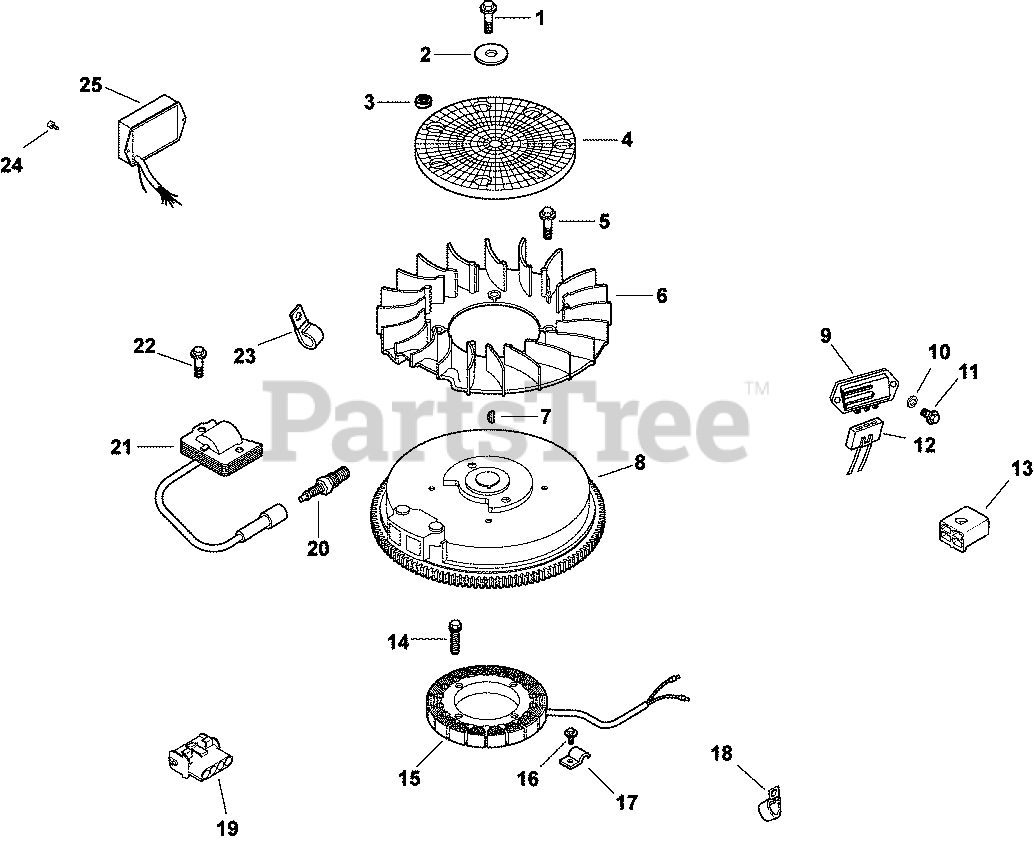

CV16-43514 - Kohler Command PRO Engine, Made for Fhp, 16hp, 11.9kW Ignition/Electrical 5-27-210 Parts Diagram

Command PRO Engine, Made for Fhp, 16hp, 11.9kW

Ignition/Electrical 5-27-210 Parts Diagram

  • Title

1

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

2

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

3

Kohler 24 018 03-S

RETAINER

$2.49

$

In Stock, only 4 left!

0

4

Kohler 24 162 03-S

SCREEN, GRASS

$

$

Not available

5

Kohler 25 086 47-S

BOLT, SHOULDER

$2.49

$

In Stock, Qty 7

0

6

Kohler 12 157 06-S

FAN

$

$

Not available

7

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 8

0

8

Kohler 12 025 35-S

FLYWHEEL - DISCONTINUED

$

$

Not available

9

Kohler 41 403 09-S

REG/RECT-15 AMP (KM)-USE 41 403 10-S
(Superseded to 41 403 10-S)

$

$

Not available

10

Kohler X-25-92-S

WASHER, FLAT 3/16"

$2.49

$

In Stock, only 2 left!

0

11

Kohler 12 086 42-S

SCREW, WSH HD TAP #8-18X1"-DISC.

$

$

Not available

12

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$24.99

$

In Stock, only 1 left!

0

13

Kohler 41 155 02-S

CONNECTOR

$2.99

$

Usually ships in 2-5 days

0

14

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$2.49

$

In Stock, only 2 left!

0

15

Kohler 12 085 01-S

STATOR - USE 12 085 09-S
(Superseded to 12 085 09-S)

$95.99

$

Usually ships in 2-5 days

0

16

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

17

Kohler X-728-1-S

CLIP

$2.49

$

Usually ships in 2-5 days

0

18

Kohler 12 154 07-S

CLIP, REGULATOR/RECTIFIER

$2.49

$

Usually ships in 2-5 days

0

19

Kohler 12 155 02-S

CONNECTOR

$

$

Not available

20

Kohler 12 132 02-S

PLUG, SPARK (STD)

$3.49

$

In Stock, Qty 20+

0

21

Kohler 12 584 17-S

MODULE, IGNITION

$112.99

$

In Stock, only 2 left!

0

22

Kohler 12 086 35-S

SCREW, SCKT THRD FRMM5X0.8X20 - DISCONTINUED

$

$

Not available

23

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

24

Kohler M-461013-S

SCREW, PHL THD FRM M4.2X13

$2.49

$

Usually ships in 2-5 days

0

25

Kohler 12 584 12-S

MODULE, DIGITAL SPD ADV-USE 12 707 01-S
(Superseded to 12 707 01-S)

$216.99

$

Usually ships in 2-5 days

0

1245202-S

Kohler 12 452 02-S

TERMINAL - DISCONTINUED

Note: NOT ILLUSTRATED

$

$

Not available

1212696-S

Kohler 12 126 96-S

BRACKET, GROUND STRAP

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

1217636-S

Kohler 12 176 36-S

HARNESS, WIRING

Note: NOT ILLUSTRATED

$14.99

$

Usually ships in 2-5 days

0

2551805-S

Kohler 25 518 05-S

LEAD

Note: NOT ILLUSTRATED

$4.99

$

Usually ships in 2-5 days

0
