CV16-43510 - Kohler Command PRO Engine, Made for Simplicity, 16hp, 11.9kW Blower Housing & Baffles 6-27-110 Parts Diagram

Command PRO Engine, Made for Simplicity, 16hp, 11.9kW

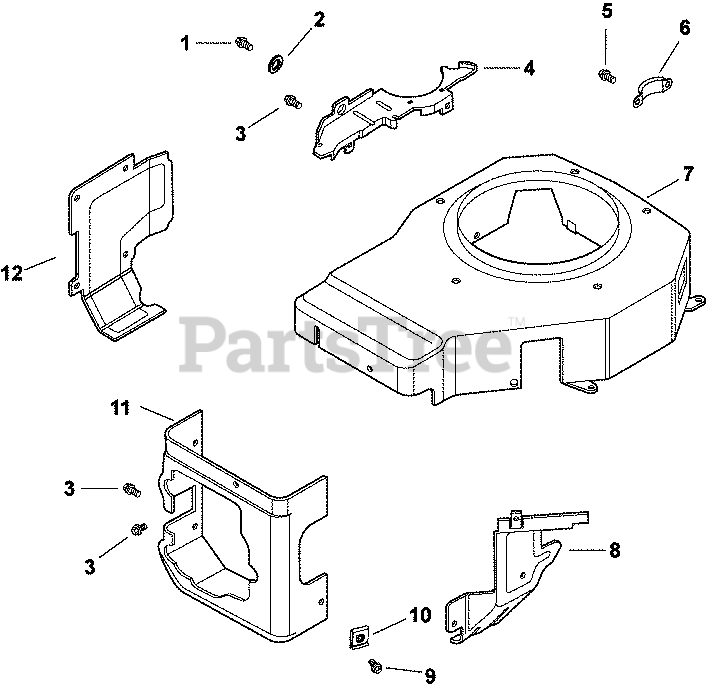

Blower Housing & Baffles 6-27-110 Parts Diagram

  • Title

1

Kohler M-561020-S

SCREW, THD FRM FLG 20mm - (#M545020S)
(Superseded to M-545020-S)

$2.49

$

In Stock, Qty 5

0

2

Kohler 24 468 10-S

WASHER, FLAT 7/32"

$2.49

$

In Stock, only 1 left!

0

3

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

4

Kohler 12 146 07-S

PLATE, BACKING

$9.49

$

Usually ships in 2-5 days

0

5

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 14

0

6

Kohler 24 096 05-S

COVER, PINION

$12.99

$

Usually ships in 2-5 days

0

7

Kohler 12 027 54-S

KIT, BLOWER HOUSING

Note: (includes 41 037 10-S)

$113.99

$

Usually ships in 2-5 days

0

8

Kohler 12 063 10-S

BAFFLE, INTAKE SIDE

$47.99

$

Usually ships in 2-5 days

0

9

Kohler M-550010-S

SCREW, HVY FLG M5X.8X10

$3.99

$

In Stock, only 1 left!

0

10

Kohler 25 154 02-S

CLIP, MOUNTING-USE 25 154 13-S
(Superseded to 25 154 37-S)

$2.49

$

In Stock, Qty 12

0

11

Kohler 12 063 08-S

BAFFLE, CYLINDER HEAD

$48.99

$

Usually ships in 2-5 days

0

12

Kohler 12 063 19-S

BAFFLE, CYLINDER - DISCONTINUED

$

$

Not available

1208637-S

Kohler 12 086 37-S

SCREW, CPTV WASHER

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

4103710-S

Kohler 41 037 10-S

NAMEPLATE, SERVICE

Note: NOT ILLUSTRATED

$8.99

$

In Stock, only 4 left!

0
