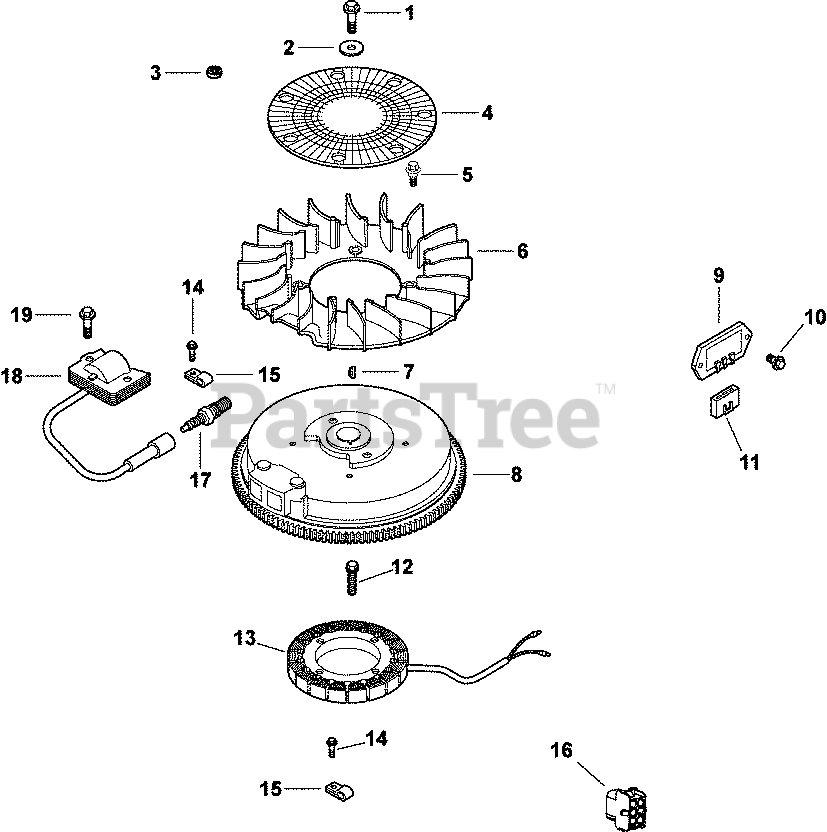

CV15-41615 - Kohler Command PRO Engine, Made for John Deere, 15hp, 11.2kW Ignition/Electrical 5-27-288 Parts Diagram

Command PRO Engine, Made for John Deere, 15hp, 11.2kW

Ignition/Electrical 5-27-288 Parts Diagram

  • Title
1

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

2

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

3

$2.49

$

In Stock, only 4 left!

0

4

Kohler 24 162 03-S

SCREEN, GRASS

$

$

Not available

5

Kohler 25 086 47-S

BOLT, SHOULDER

$2.49

$

In Stock, Qty 7

0

$

$

Not available

7

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 8

0

8

Kohler 12 025 56-S

FLYWHEEL - USE 12 025 72-S
(Superseded to 12 025 72-S)

$393.99

$

Usually ships in 2-5 days

0

9

Kohler 41 403 09-S

REG/RECT-15 AMP (KM)-USE 41 403 10-S
(Superseded to 41 403 10-S)

$

$

Not available

10

Kohler 24 086 18-S

SCREW, PHL HD #11-16X7/8"

$2.49

$

Usually ships in 2-5 days

0

11

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$24.99

$

In Stock, only 1 left!

0

12

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$2.49

$

In Stock, only 2 left!

0

13

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

Note: (includes 25 452 01-S)

$149.99

$

In Stock, Qty 15

0

14

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

$2.49

$

Usually ships in 2-5 days

0

16

Kohler 12 155 09-S

CONNECTOR - DISCONTINUED

$

$

Not available

17

Kohler 12 132 02-S

PLUG, SPARK (STD)

$3.49

$

In Stock, Qty 20+

0

18

Kohler 12 584 04-S

MODULE, IGNITION

$33.99

$

In Stock, only 1 left!

0

19

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 6

0

1251810-S

Kohler 12 518 10-S

LEAD

Note: NOT ILLUSTRATED

$4.49

$

Usually ships in 2-5 days

0

1251811-S

Kohler 12 518 11-S

LEAD

Note: NOT ILLUSTRATED

$25.99

$

Usually ships in 2-5 days

0

1212696-S

Kohler 12 126 96-S

BRACKET, GROUND STRAP

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2546807-S

Kohler 25 468 07-S

WASHER, FLAT 7/32"

$2.49

$

Usually ships in 2-5 days

0

2545201-S

Kohler 25 452 01-S

TERMINAL

Note: NOT ILLUSTRATED

$5.49

$

In Stock, only 1 left!

0
