CV15-41600 - Kohler Command PRO Engine, Made for Husqvarna, 15hp, 11.2kW Starting System 7-27-59 Parts Diagram

Command PRO Engine, Made for Husqvarna, 15hp, 11.2kW

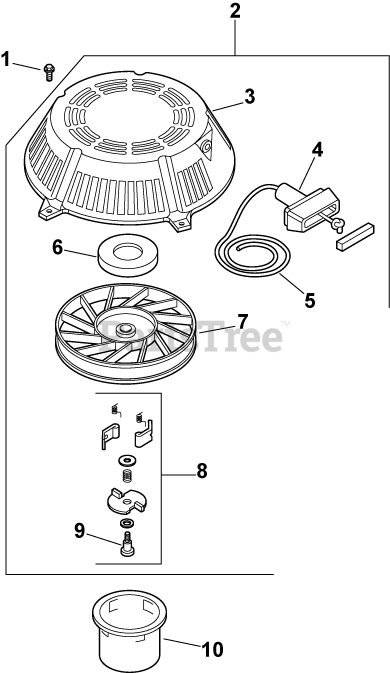

Starting System 7-27-59 Parts Diagram

  • Title

1

Kohler M-550010-S

SCREW, HVY FLG M5X.8X10

$3.99

$

In Stock, only 1 left!

0

2

Kohler 12 165 01-S

STARTER ASSY,RETRACTABLE-USE 12 165 03-S
(Superseded to 24 165 02-S)

Note: (Includes 3-9)

$76.99

$

In Stock, only 2 left!

0

3

Kohler 12 081 01-S

HOUSING - DISCONTINUED

$

$

Not available

4

Kohler 25 166 01-S

HANDLE, RECOIL STARTER

$15.99

$

In Stock, Qty 10

0

5

Kohler 12 160 01-S

ROPE - DISCONTINUED

$

$

Not available

6

Kohler 12 089 06-S

SPRING & KEEPER - (#DSC)

$

$

Not available

7

Kohler 12 093 01-S

PULLEY - (#DSC)

$

$

Not available

8

Kohler 12 757 06-S

KIT, DOG REPAIR - (#DSC)

Note: (Includes 9)

$

$

Not available

9

Kohler 41 086 09-S

SCREW - DISCONTINUED

$

$

Not available

10

Kohler 15 109 01-S

CUP

$21.99

$

In Stock, only 1 left!

0

1211307-S

Kohler 12 113 07-S

DECAL, STARTING - DISCONTINUED

Note: NOT ILLUSTRATED

$

$

Not available

1211325-S

Kohler 12 113 25-S

DECAL, HYD. LIFTER

Note: NOT ILLUSTRATED

$8.99

$

Usually ships in 2-5 days

0
