CV15-41594 - Kohler Command PRO Engine, Made for John Deere, 15hp, 11.2kW Starting System 7-27-64 Parts Diagram

Command PRO Engine, Made for John Deere, 15hp, 11.2kW

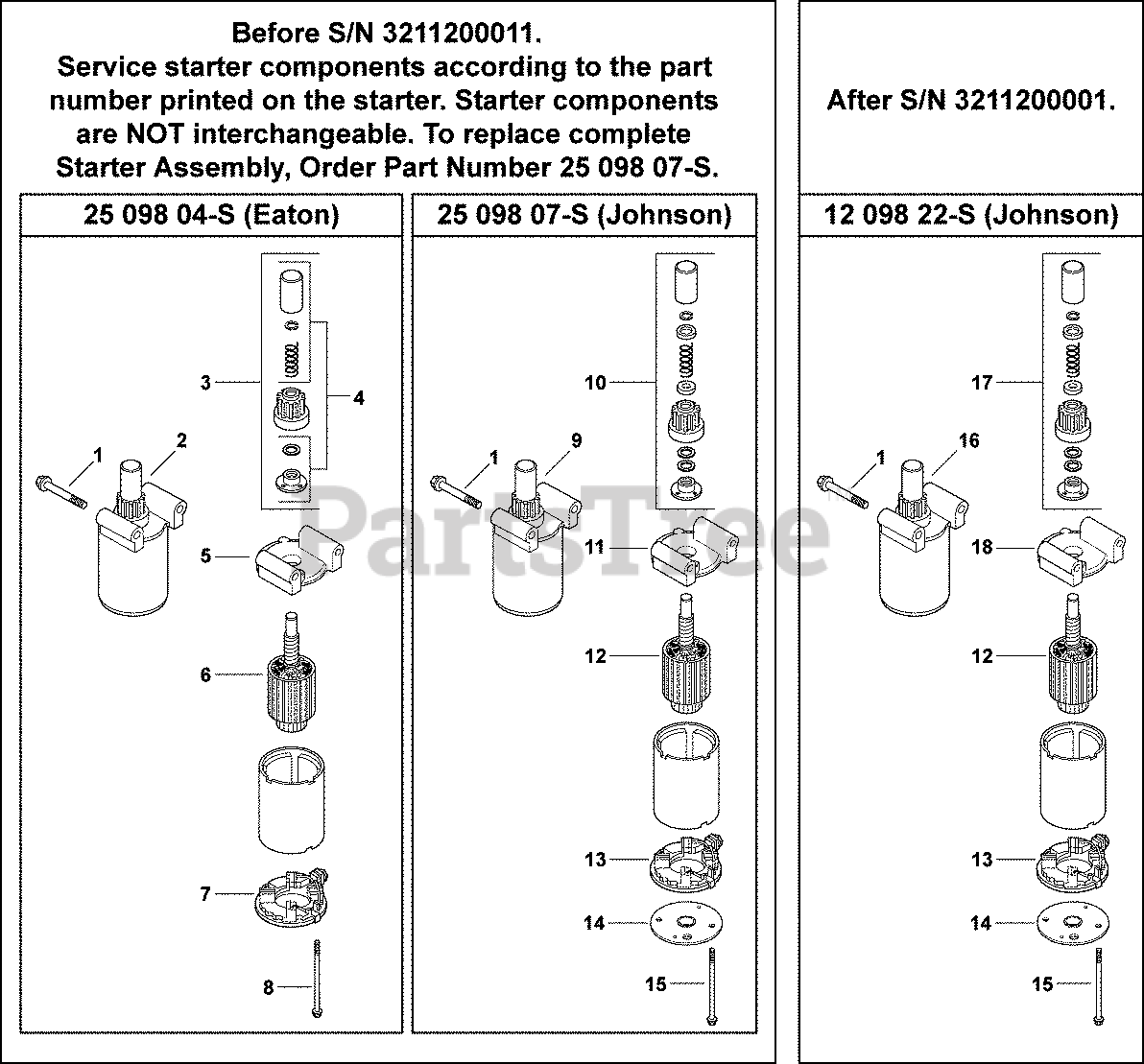

Starting System 7-27-64 Parts Diagram

  • Title

1

Kohler M-839070-S

SCREW, FLG M8X1.25X70

$9.49

$

Usually ships in 2-5 days

0

2

Kohler 25 098 04-S

USE 25 098 07-S STARTER
(Superseded to 25 098 07-S)

$268.99

$

Usually ships in 2-5 days

0

3

Kohler 12 755 39-S

KIT,DR W/GEAR (FASCO/V.WEISE/W&G)(#DSC)

$

$

Not available

4

Kohler 12 755 38-S

KIT, DR PTS(FASCO/V.WEISE/W&G) - DISC.

$

$

Not available

5

Kohler 12 227 03-S

CAP, DRIVE END - DISCONTINUED

$

$

Not available

6

Kohler 12 170 04-S

ARMATURE - (#DSC)

$

$

Not available

7

Kohler 12 243 04-S

BRUSH ASSY (FASCO/V.WEISE/W&G)-DISC.

$

$

Not available

8

Kohler 12 086 20-S

SCREW - DISCONTINUED

$

$

Not available

9

Kohler 25 098 07-S

ELECTRIC STARTER-BENDIX DRIVE

Note: (includes 10-15)

$268.99

$

Usually ships in 2-5 days

0

10

Kohler 12 755 54-S

KIT, DRIVE

$124.99

$

Usually ships in 2-5 days

0

11

Kohler 12 227 18-S

CAP, DRIVE END - (#DSC)

$

$

Not available

12

Kohler 12 170 05-S

ARMATURE - DISCONTINUED

$

$

Not available

13

Kohler 12 221 01-S

BRUSH KIT - (#DSC)

$

$

Not available

14

Kohler 12 227 13-S

CAP - DISCONTINUED

$

$

Not available

15

Kohler 12 211 01-S

BOLT, THRU #10-24X4 13/32" - DISCONTINUED

$

$

Not available

16

Kohler 12 098 22-S

ELECTRIC STARTER-BENDIX DRIVE

Note: (includes 12-15,17,18)

$275.99

$

In Stock, only 1 left!

0

17

Kohler 12 755 53-S

KIT, DRIVE

$169.99

$

Usually ships in 2-5 days

0

18

Kohler 12 227 19-S

CAP, DRIVE END - (#DSC)

$

$

Not available
