CV15-41570 - Kohler Command PRO Engine, Made for Snapper, 15hp, 11.2kW Fuel System 8-27-152 Parts Diagram

Command PRO Engine, Made for Snapper, 15hp, 11.2kW

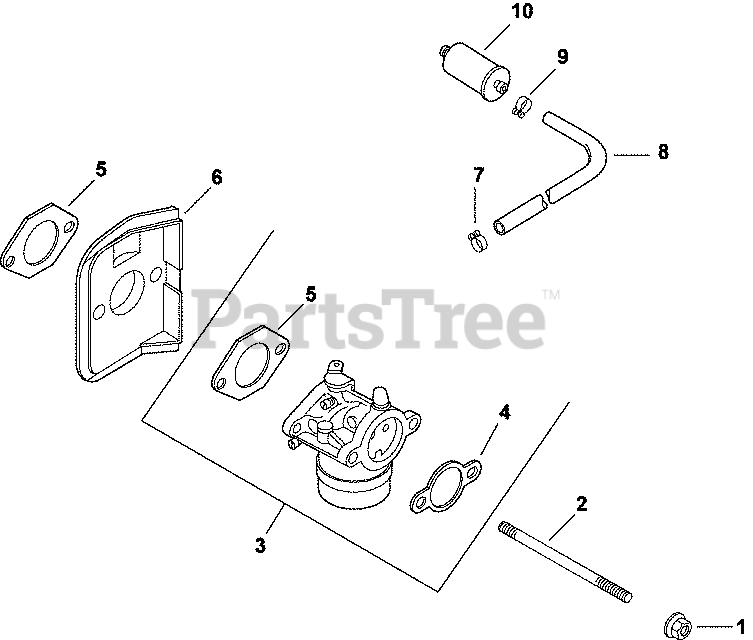

Fuel System 8-27-152 Parts Diagram

  • Title

1

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 9

0

2

Kohler M-629116-S

STUD,M6X1.0X116

$3.49

$

In Stock, only 2 left!

0

3

Kohler 12 853 159-S

KIT, CARB W/GASKETS - USE 12 853 177-S
(Superseded to 12 853 177-S)

Note: (includes 4,5)

$269.99

$

In Stock, only 1 left!

0

4

Kohler 12 041 02-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 5

0

5

Kohler 12 041 01-S

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 14

0

6

Kohler 12 265 08-S

DEFLECTOR, HEAT

$9.49

$

In Stock, only 2 left!

0

7

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

8

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 6

0

9

Kohler 25 237 08-S

CLAMP, BAND SPRING HOSE-(#2523737S)
(Superseded to 25 237 37-S)

$2.49

$

In Stock, Qty 11

0

10

Kohler 25 050 21-S

FILTR,FUEL 75 MICRON (GRAVTY FEED)

$8.99

$

In Stock, Qty 20+

0

1275737-S

Kohler 12 757 37-S

KIT, REPAIR BOWL REPLACEMENT

Note: NOT ILLUSTRATED

$16.99

$

In Stock, Qty 6

0

1275702-S

Kohler 12 757 02-S

KIT, REPAIR FLOAT

Note: NOT ILLUSTRATED

$13.99

$

In Stock, only 3 left!

0

1275703-S

Kohler 12 757 03-S

KIT, REPAIR CARBURETOR (PUMP FEED)

Note: NOT ILLUSTRATED

$35.99

$

In Stock, Qty 7

0

1275708-S

Kohler 12 757 08-S

KIT, CHOKE REPAIR

Note: NOT ILLUSTRATED

$36.99

$

Usually ships in 2-5 days

0

1275733-S

Kohler 12 757 33-S

KIT, REPAIR SOLENOID

Note: NOT ILLUSTRATED

$135.99

$

In Stock, only 1 left!

0

1252103-S

Kohler 12 521 03-S

KIT, INLET SEAT (GRAVITY) CMD

Note: NOT ILLUSTRATED

$62.99

$

In Stock, only 2 left!

0
