CV15-41565 - Kohler Command PRO Engine, Made for Fhp, 15hp, 11.2kW Engine Controls 9-27-49 Parts Diagram

Command PRO Engine, Made for Fhp, 15hp, 11.2kW

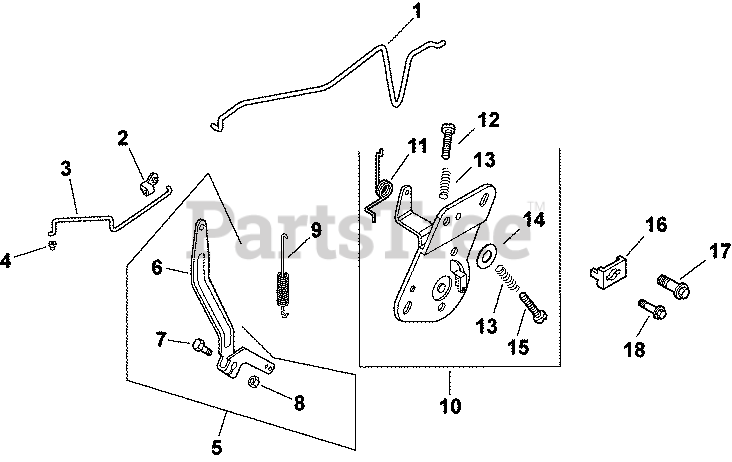

Engine Controls 9-27-49 Parts Diagram

  • Title

1

Kohler 12 079 07-S

LINKAGE, CHOKE

$7.99

$

In Stock, only 1 left!

0

2

Kohler 25 158 11-S

BUSHING, THROTTLE LINKAGE

$5.99

$

In Stock, only 2 left!

0

3

Kohler 12 079 01-S

LINKAGE, THROTTLE

$11.99

$

In Stock, only 1 left!

0

4

Kohler 25 158 08-S

BUSHING, LINKAGE RETAINING

$5.99

$

In Stock, Qty 18

0

5

Kohler 12 755 83-S

KIT, GOVERNOR LEVER

Note: (includes 6-8)

$6.49

$

In Stock, only 1 left!

0

6

Kohler 12 090 28-S

LEVER, GOVERNOR

$5.99

$

In Stock, only 1 left!

0

7

Kohler 52 211 04-S

BOLT, RD HD SQ NCK 1/4-20X1"

$4.99

$

Usually ships in 2-5 days

0

8

Kohler 12 100 07-S

NUT, FLANGE 1/4-20

$2.49

$

In Stock, only 2 left!

0

9

Kohler 12 089 24-S

SPRING, GOVERNOR - DISCONTINUED

$

$

Not available

10

Kohler 12 536 10-S

CONTROL, SPEED - DISCONTINUED

Note: (includes 11-15)

$

$

Not available

11

Kohler 12 089 23-S

SPRING

$10.99

$

In Stock, only 1 left!

0

12

Kohler M-443020-S

SCREW, SLOTTED PAN M4X0.7X20

$2.49

$

Usually ships in 2-5 days

0

13

Kohler 12 089 11-S

SPRING, SPEED CONTROL (SHORT)

$2.49

$

In Stock, only 4 left!

0

14

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, only 2 left!

0

15

Kohler 12 086 39-S

SCREW, PAN HEAD

$2.49

$

Usually ships in 2-5 days

0

16

Kohler 12 237 01-S

CLAMP, CABLE
(Superseded to 25 237 53-S)

$3.49

$

In Stock, Qty 5

0

17

Kohler M-664020-S

SCREW, LBD SKT M6x1.0x20-(#25086403S)
(Superseded to 25 086 403-S)

$2.49

$

In Stock, only 2 left!

0

18

Kohler 24 086 43-S

SCREW, LBD THD FRM M5x0.8x16 - USE 25 086 405-S
(Superseded to 25 086 405-S)

$2.49

$

In Stock, only 2 left!

0
