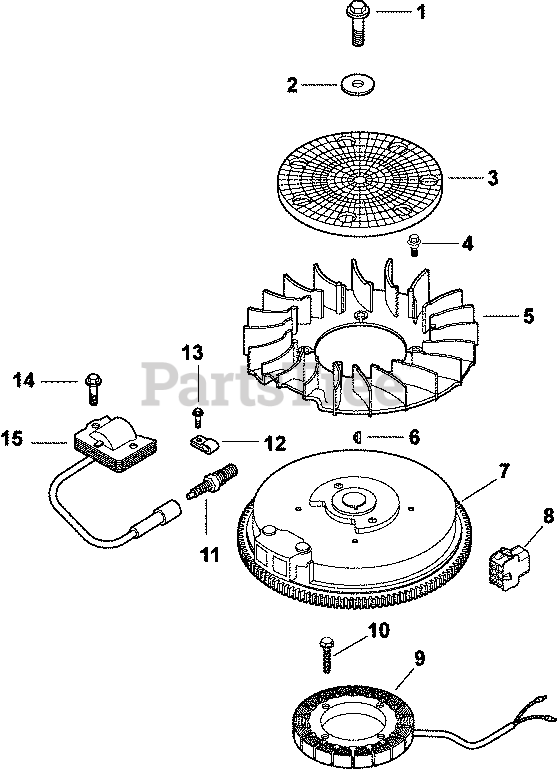

CV15-41562 - Kohler Command PRO Engine, Made for John Deere, 15hp, 11.2kW Ignition/Electrical 5-27-188 Parts Diagram

Command PRO Engine, Made for John Deere, 15hp, 11.2kW

Ignition/Electrical 5-27-188 Parts Diagram

  • Title

1

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

2

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

3

Kohler 24 162 03-S

SCREEN, GRASS

$

$

Not available

4

Kohler 25 086 47-S

BOLT, SHOULDER

$2.49

$

In Stock, Qty 7

0

5

Kohler 12 157 06-S

FAN

$

$

Not available

6

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 6

0

7

Kohler 12 025 37-S

FLYWHEEL - USE 12 025 93-S
(Superseded to 12 025 93-S)

$

$

Not available

8

Kohler 12 155 02-S

CONNECTOR

$

$

Not available

9

Kohler 12 085 07-S

STATOR, 3 AMP - USE 12 085 08-S Stator
(Superseded to 12 085 08-S)

$95.99

$

In Stock, only 1 left!

0

10

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$2.49

$

In Stock, only 2 left!

0

11

Kohler 12 132 02-S

PLUG, SPARK (STD)

$4.49

$

In Stock, Qty 20+

0

12

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 20+

0

13

Kohler X-728-1-S

CLIP

$2.49

$

Usually ships in 2-5 days

0

14

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 3 left!

0

15

Kohler 12 584 04-S

MODULE, IGNITION

$33.99

$

In Stock, only 1 left!

0

1251811-S

Kohler 12 518 11-S

LEAD

Note: NOT ILLUSTRATED

$25.99

$

Usually ships in 2-5 days

0
