CV15-41560 - Kohler Command PRO Engine, Made for Toro, 15hp, 11.2kW Exhaust 11-27-99 Parts Diagram

Command PRO Engine, Made for Toro, 15hp, 11.2kW

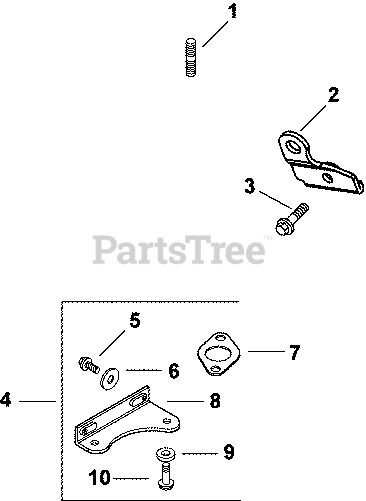

Exhaust 11-27-99 Parts Diagram

  • Title

1

Kohler 25 072 14-S

STUD, EXHAUST-USE 25 072 24-S
(Superseded to 25 072 24-S)

$3.99

$

In Stock, Qty 10

0

2

Kohler 12 126 87-S

BRACKET, LIFTING STRAP - DISCONTINUED

$

$

Not available

3

Kohler M-645020-S

SCREW,FLG THD FRM M6X1.0X20-(#25086396S)
(Superseded to 25 086 396-S)

$2.49

$

In Stock, only 1 left!

0

4

Kohler 12 755 30-S

KIT, BRACKET - DISCONTINUED

Note: (includes 5-10)

$

$

Not available

5

Kohler M-650012-S

SCREW, FLG M6X1.0X12

$3.49

$

In Stock, only 3 left!

0

6

Kohler X-25-52-S

WASHER, FLAT 1/4"

$3.99

$

In Stock, only 1 left!

0

7

Kohler 12 041 03-S

GASKET, EXHAUST MANIFOLD

$7.49

$

In Stock, Qty 9

0

8

Kohler 12 126 55-S

BRACKET, MUFFLER - DISCONTINUED

$

$

Not available

9

Kohler 12 086 13-S

SCREW, FLG M8X1.25X50
(Superseded to 25 086 618-S)

$2.99

$

Usually ships in 2-5 days

0

10

Kohler 12 468 01-S

WASHER, FLAT 11/32"

$2.99

$

Usually ships in 2-5 days

0
