CV15-41555 - Kohler Command PRO Engine, Made for Gazda, 15hp, 11.2kW Exhaust 11-27-118 Parts Diagram

Command PRO Engine, Made for Gazda, 15hp, 11.2kW

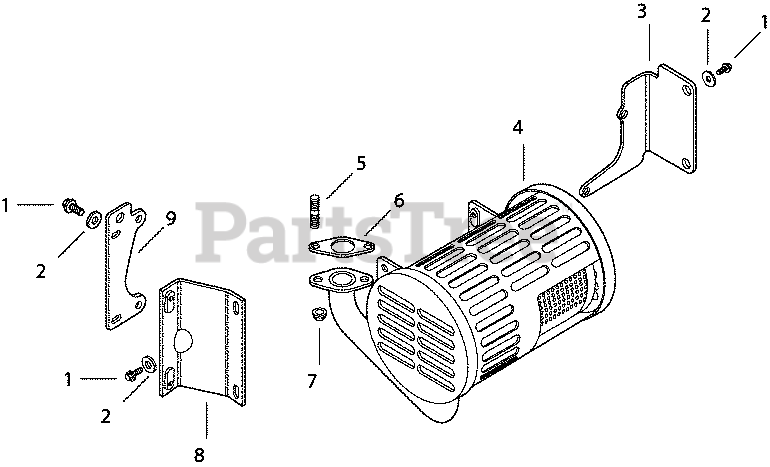

Exhaust 11-27-118 Parts Diagram

  • Title
1

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 13

0

2

Kohler X-25-52-S

WASHER, FLAT 1/4"

$3.99

$

In Stock, only 1 left!

0

3

Kohler 12 126 61-S

BRACKET, MUFFLER

$24.99

$

Usually ships in 2-5 days

0

4

$364.99

$

Usually ships in 2-5 days

0

5

Kohler 25 072 14-S

STUD, EXHAUST-USE 25 072 24-S
(Superseded to 25 072 24-S)

$3.99

$

In Stock, Qty 14

0

6

Kohler 12 041 03-S

GASKET, EXHAUST MANIFOLD

$7.49

$

In Stock, Qty 9

0

7

Kohler M-841080-S

NUT, FLG M8X1.25

$2.49

$

Usually ships in 2-5 days

0

8

Kohler 12 126 60-S

BRACKET, MUFFLER

$107.99

$

Usually ships in 2-5 days

0

9

Kohler 12 126 71-S

BRACKET, MUFFLER

$

$

Not available

1211220-S

Kohler 12 112 20-S

SPACER

Note: NOT ILLUSTRATED

$7.99

$

In Stock, only 1 left!

0

M-645025-S

Kohler M-645025-S

SCREW,FLG THD FRM M6X1.0X25-(#25086395S)
(Superseded to 25 086 395-S)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 2 left!

0
