CV15-41553 - Kohler Command PRO Engine, Made for Ransomes, 15hp, 11.2kW Ignition/Electrical 5-27-155 Parts Diagram

Command PRO Engine, Made for Ransomes, 15hp, 11.2kW

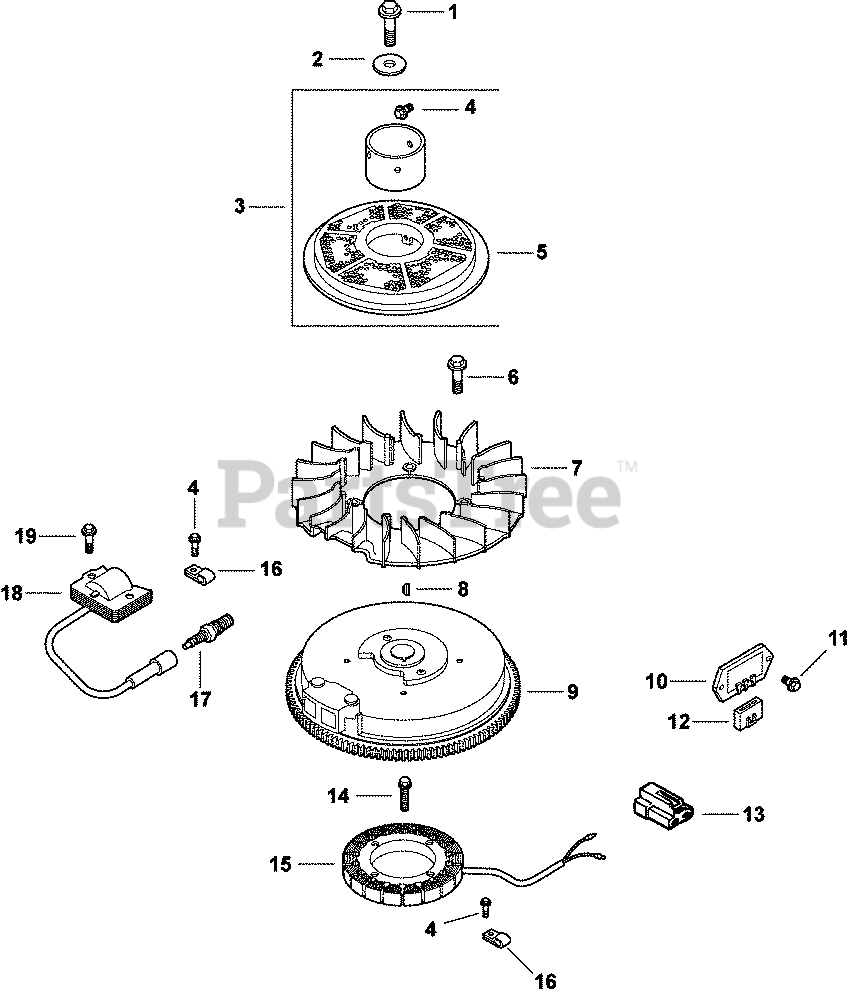

Ignition/Electrical 5-27-155 Parts Diagram

  • Title

1

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

2

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

3

Kohler 12 109 03-S

CUP W/SCREEN - DISCONTINUED

Note: (includes 4,5)

$

$

Not available

4

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

5

Kohler 12 162 09-S

SCREEN, GRASS (BLACK)

$40.99

$

Usually ships in 2-5 days

0

6

Kohler 25 086 47-S

BOLT, SHOULDER

$2.49

$

In Stock, Qty 7

0

7

Kohler 12 157 03-S

FAN - DISCONTINUED

$

$

Not available

8

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 7

0

9

Kohler 12 025 33-S

USE 12 025 72-S FLYWHEEL
(Superseded to 12 025 72-S)

$393.99

$

Usually ships in 2-5 days

0

10

Kohler 41 403 09-S

REG/RECT-15 AMP (KM)-USE 41 403 10-S
(Superseded to 41 403 10-S)

$

$

Not available

11

Kohler M-639016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, Qty 6

0

12

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$24.99

$

In Stock, only 1 left!

0

13

Kohler 236473-S

CONNECTOR

$7.49

$

Usually ships in 2-5 days

0

14

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$2.49

$

In Stock, only 2 left!

0

15

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

Note: (includes 25 452 01-S)

$149.99

$

In Stock, Qty 15

0

16

Kohler X-728-1-S

CLIP

$2.49

$

Usually ships in 2-5 days

0

17

Kohler 12 132 02-S

PLUG, SPARK (STD)

$3.49

$

In Stock, Qty 20+

0

18

Kohler 12 584 04-S

MODULE, IGNITION

$33.99

$

In Stock, only 1 left!

0

19

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 6

0

1251801-S

Kohler 12 518 01-S

LEAD

Note: NOT ILLUSTRATED

$19.99

$

In Stock, only 1 left!

0

2551805-S

Kohler 25 518 05-S

LEAD

Note: NOT ILLUSTRATED

$4.99

$

Usually ships in 2-5 days

0

2451812-S

Kohler 24 518 12-S

LEAD

Note: NOT ILLUSTRATED

$4.99

$

Usually ships in 2-5 days

0

2551824-S

Kohler 25 518 24-S

LEAD - DISCONTINUED

Note: NOT ILLUSTRATED

$

$

Not available

X-22-11-S

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 3 left!

0

1215401-S

Kohler 12 154 01-S

CLIP, TUBE & WIRING (KM)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 1 left!

0

2545201-S

Kohler 25 452 01-S

TERMINAL

Note: NOT ILLUSTRATED

$5.49

$

In Stock, only 1 left!

0

M-545016-S

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

Note: NOT ILLUSTRATED

$3.99

$

Usually ships in 2-5 days

0
