CV15-41552 - Kohler Command PRO Engine, Made for Ransomes, 15hp, 11.2kW Ignition/Electrical 5-27-156 Parts Diagram

Command PRO Engine, Made for Ransomes, 15hp, 11.2kW

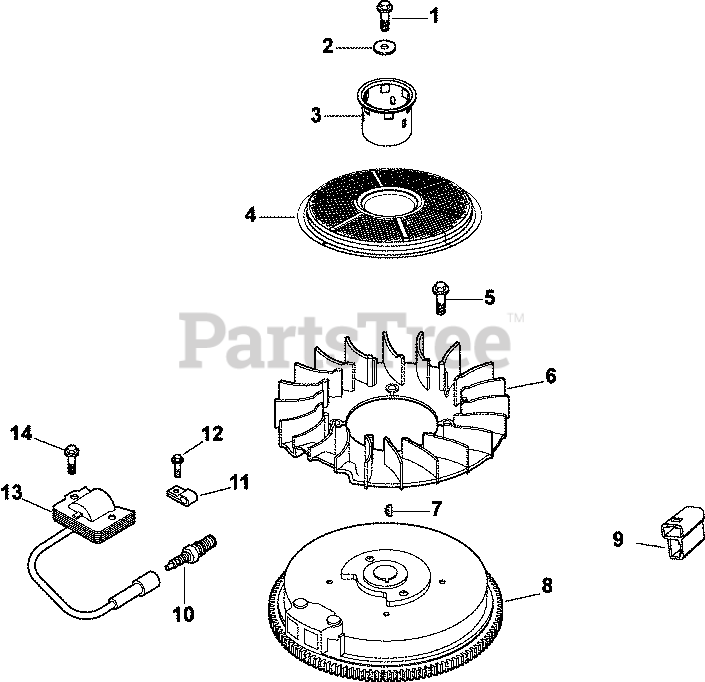

Ignition/Electrical 5-27-156 Parts Diagram

  • Title

1

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

2

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

3

Kohler 12 109 07-S

CUP, DRIVE STARTER - DISCONTINUED

$

$

Not available

4

Kohler 12 162 09-S

SCREEN, GRASS (BLACK)

$40.99

$

Usually ships in 2-5 days

0

5

Kohler 25 086 47-S

BOLT, SHOULDER

$2.49

$

In Stock, Qty 7

0

6

Kohler 12 157 03-S

FAN - DISCONTINUED

$

$

Not available

7

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 7

0

8

Kohler 12 025 66-S

FLYWHEEL - USE 12 025 65-S
(Superseded to 12 025 65-S)

$

$

Not available

9

Kohler 48 155 02-S

CONNECTOR

$13.99

$

Usually ships in 2-5 days

0

10

Kohler 12 132 02-S

PLUG, SPARK (STD)

$3.49

$

In Stock, Qty 20+

0

11

Kohler X-728-1-S

CLIP

$2.49

$

Usually ships in 2-5 days

0

12

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

13

Kohler 12 584 05-S

MODULE, IGNITION

$125.99

$

In Stock, only 1 left!

0

14

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 5

0

25086110-S

Kohler 25 086 110-S

SCREW, WSH HD TAP #10-32x9/16"

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

1251801-S

Kohler 12 518 01-S

LEAD

Note: NOT ILLUSTRATED

$19.99

$

In Stock, only 1 left!

0

2551824-S

Kohler 25 518 24-S

LEAD - DISCONTINUED

Note: NOT ILLUSTRATED

$

$

Not available

1215401-S

Kohler 12 154 01-S

CLIP, TUBE & WIRING (KM)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 1 left!

0

M-545016-S

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

Note: NOT ILLUSTRATED

$3.99

$

Usually ships in 2-5 days

0
