CV15-41526 - Kohler Command PRO Engine, Made for American Yard Products, 15hp, 11.2kW Fuel System 8-27-80 (TP-2351) Parts Diagram

Command PRO Engine, Made for American Yard Products, 15hp, 11.2kW

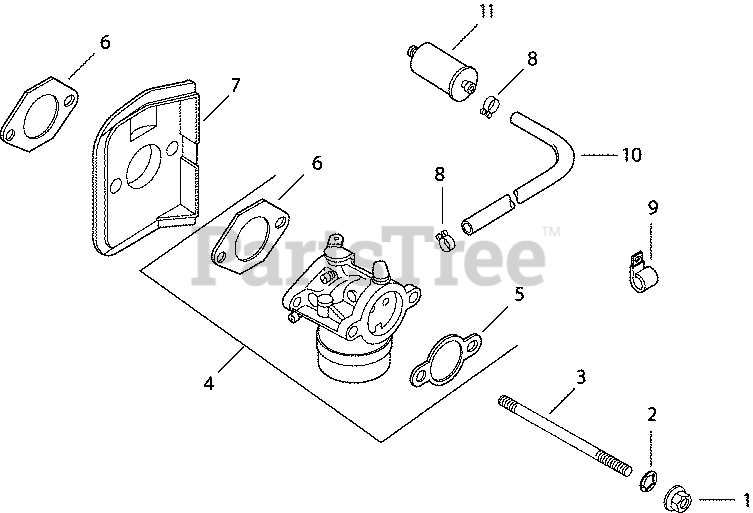

Fuel System 8-27-80 (TP-2351) Parts Diagram

  • Title
1

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 8

0

2

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

$2.49

$

In Stock, only 3 left!

0

3

Kohler M-629116-S

STUD,M6X1.0X116

$3.49

$

In Stock, only 2 left!

0

4

Kohler 12 853 94-S

KIT, CARB W/GASKETS - USE 42 853 03-S
(Superseded to 42 853 03-S)

Note: (includes 5,6)

$348.99

$

In Stock, only 1 left!

0

5

Kohler 12 041 02-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 5

0

6

Kohler 12 041 01-S

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 14

0

7

Kohler 12 265 08-S

DEFLECTOR, HEAT

$9.49

$

In Stock, only 2 left!

0

8

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

9

Kohler 25 154 09-S

CLIP, CABLE

$3.99

$

Usually ships in 2-5 days

0

10

Kohler 25 353 10-S

LINE, FLEXIBLE FUEL 9.0

$6.49

$

In Stock, only 1 left!

0

11

Kohler 25 050 21-S

FILTR,FUEL 75 MICRON (GRAVTY FEED)

$8.99

$

In Stock, Qty 20+

0

M-561010-S

Kohler M-561010-S

SCREW, THRD FRM M5X0.8X10

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

1275592-S

Kohler 12 755 92-S

KIT, HIGH ALTITUDE (+10,000 FT)

Note: NOT ILLUSTRATED

$15.99

$

Usually ships in 2-5 days

0

1275702-S

Kohler 12 757 02-S

KIT, REPAIR FLOAT

Note: NOT ILLUSTRATED

$13.99

$

In Stock, only 3 left!

0

1275703-S

Kohler 12 757 03-S

KIT, REPAIR CARBURETOR (PUMP FEED)

Note: NOT ILLUSTRATED

$35.99

$

In Stock, Qty 8

0

1275733-S

Kohler 12 757 33-S

KIT, REPAIR SOLENOID

Note: NOT ILLUSTRATED

$135.99

$

In Stock, only 1 left!

0

12755110-S

Kohler 12 755 110-S

KIT, REPAIR CHOKE

Note: NOT ILLUSTRATED

$14.99

$

Usually ships in 2-5 days

0

1245403-S

Kohler 12 454 03-S

TIE, CABLE

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

1251824-S

Kohler 12 518 24-S

LEAD

Note: NOT ILLUSTRATED

$4.49

$

In Stock, only 1 left!

0

2545403-S

Kohler 25 454 03-S

TIE, WIRE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0
