CV14-1491 - Kohler Command PRO Engine, Made for Snapper, 14hp Head/Valve/Breather (TP-2351) Parts Diagram

Command PRO Engine, Made for Snapper, 14hp

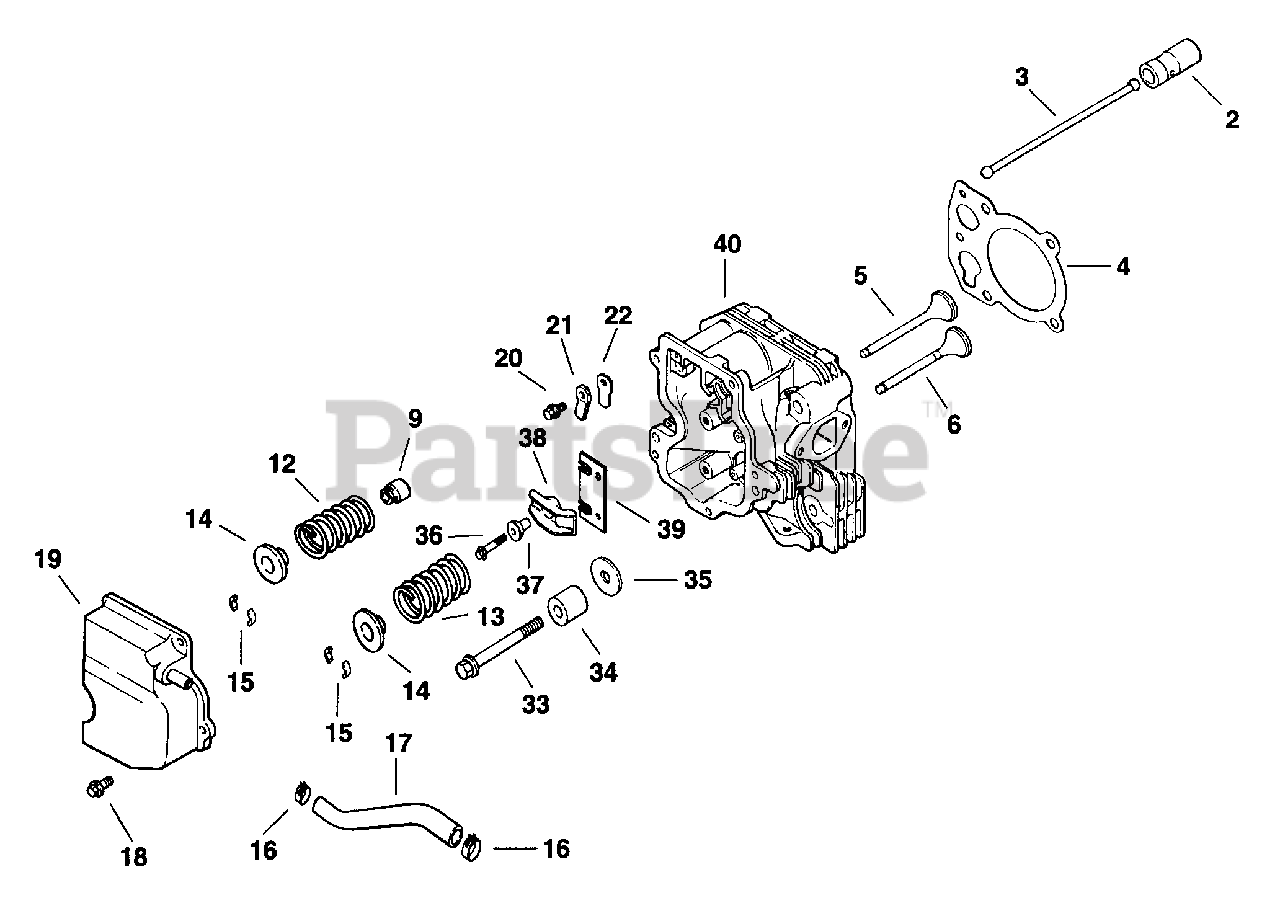

Head/Valve/Breather (TP-2351) Parts Diagram

  • Title

2

Kohler 12 351 01

LIFTER - USE 12 351 02
(Superseded to 12 351 02)

$23.99

$

In Stock, only 1 left!

0

3

Kohler 12 411 01-S

USE 12 411 04-S PUSH ROD
(Superseded to 12 411 04-S)

$4.49

$

In Stock, only 1 left!

0

4

Kohler 12 041 08-S

GASKET, CYLINDER HEAD

$20.99

$

Usually ships in 2-5 days

0

5

Kohler 12 017 01-S

VALVE, INTAKE

$32.99

$

Usually ships in 2-5 days

0

5

Kohler 12 017 02-S

VALVE, INTAKE (.25 MM)

$30.99

$

In Stock, only 1 left!

0

6

Kohler 12 016 01-S

VALVE, EXHAUST

$54.99

$

Usually ships in 2-5 days

0

6

Kohler 12 016 02-S

VALVE, EXHAUST (.25 MM)

$

$

Not available

12

Kohler 12 089 01-S

USE 12 089 34-S VALVE
(Superseded to 12 089 34-S)

Note: Free length of 48.69 mm

$10.99

$

In Stock, only 2 left!

0

13

Kohler 12 089 15-S

SPRING

Note: Free length of 55.8 mm

$

$

Not available

14

Kohler 12 173 01-S

RETAINER, VALVE SPRING - USE 25 173 28-S
(Superseded to 25 173 28-S)

$8.49

$

In Stock, only 3 left!

0

15

Kohler 12 755 03-S

KIT, RETAINER

$5.99

$

In Stock, Qty 7

0

16

Kohler X-426-9-S

CLAMP, HOSE 1/2" USE 25 237 14-S
(Superseded to 25 237 14-S)

$4.99

$

In Stock, only 3 left!

0

17

Kohler 12 326 03-S

HOSE

$10.99

$

In Stock, Qty 9

0

18

Kohler M-0645020

SCREW - USE M-645020
(Superseded to M-645020)

$2.49

$

In Stock, only 1 left!

0

19

Kohler 12 096 07-S

USE 12 755 102-S KIT
(Superseded to 12 755 102-S)

$86.99

$

Usually ships in 2-5 days

0

20

Kohler M-0545010

SCREW - USE M-545010
(Superseded to M-545010)

$4.49

$

In Stock, only 2 left!

0

21

Kohler 12 018 01-S

RETAINER - UE 66 018 04-S
(Superseded to 66 018 04-S)

$4.99

$

In Stock, only 4 left!

0

22

Kohler 24 402 03-S

REED, BREATHER
(Superseded to 24 402 06-S)

$3.49

$

In Stock, only 1 left!

0

33

Kohler 12 086 15-S

USE 20 086 02-S SCREW
(Superseded to 20 086 02-S)

$3.99

$

In Stock, Qty 12

0

34

Kohler 12 112 13-S

SPACER, HEAD BOLT EXHAUST PORT

$10.99

$

Usually ships in 2-5 days

0

35

Kohler 12 468 05-S

WASHER, FLAT 13/32"

$2.49

$

Usually ships in 2-5 days

0

36

Kohler M-0640034

Screw, hex. flange M6x1.0x34

$

$

Not available

37

Kohler 24 194 01

ROCKER ARM PIVOT - USE KIT 12 755 74
(Superseded to 12 755 74-S)

$47.99

$

Usually ships in 2-5 days

0

38

Kohler 24 186 03

ROCKER ARM - SEE PARTS BULLETINS 182 FOR TWINS AND 200 FOR SINGLES
(Superseded to 12 755 74-S)

$47.99

$

Usually ships in 2-5 days

0

39

Kohler 12 146 13

GUIDE PLATE - USE KIT 12 755 74
(Superseded to 12 755 74-S)

$47.99

$

Usually ships in 2-5 days

0

40

Kohler 12 318 05

HEAD - USE 12 318 19-S
(Superseded to 12 318 15)

$332.99

$

Usually ships in 2-5 days

0
