CV14-1458 - Kohler Command PRO Engine, Made for American Yard Products, 14hp Ignition/Electrical 5-27-76 Parts Diagram

Command PRO Engine, Made for American Yard Products, 14hp

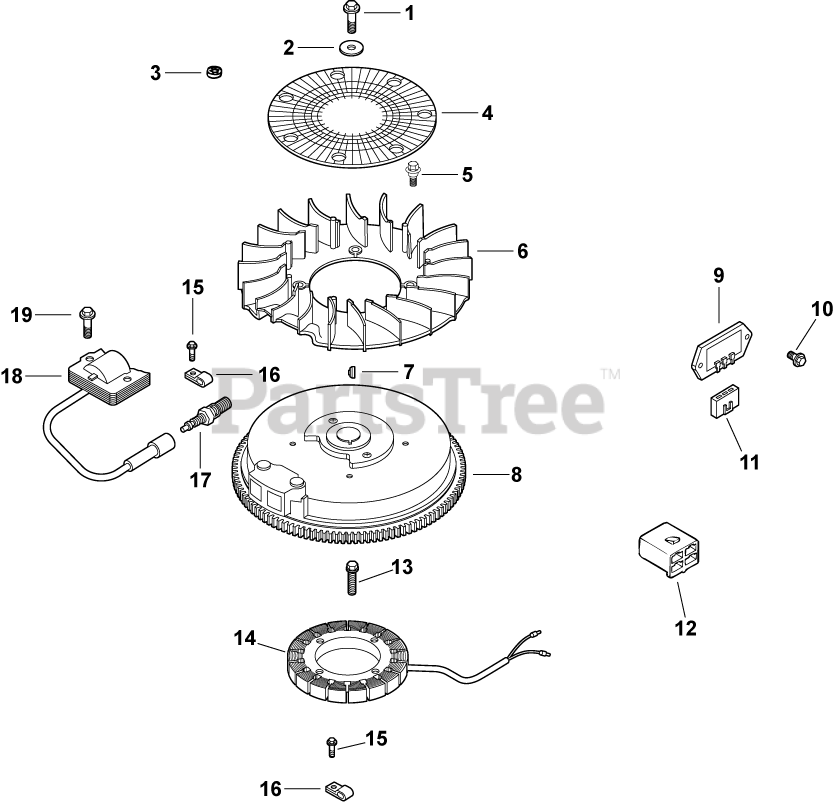

Ignition/Electrical 5-27-76 Parts Diagram

  • Title
1

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

2

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

3

$2.49

$

In Stock, only 4 left!

0

4

Kohler 24 162 03-S

SCREEN, GRASS

$

$

Not available

5

Kohler 25 086 47-S

BOLT, SHOULDER

$2.49

$

In Stock, Qty 7

0

$

$

Not available

7

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 8

0

8

Kohler 12 025 15-S

FLYWHEEL - USE 12 025 16-S
(Superseded to 12 025 16-S)

$328.99

$

Usually ships in 2-5 days

0

9

Kohler 41 403 09-S

REG/RECT-15 AMP (KM)-USE 41 403 10-S
(Superseded to 41 403 10-S)

$

$

Not available

10

Kohler 24 086 18-S

SCREW, PHL HD #11-16X7/8"

$2.49

$

Usually ships in 2-5 days

0

11

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$24.99

$

In Stock, only 1 left!

0

12

Kohler 41 155 02-S

CONNECTOR

$2.99

$

Usually ships in 2-5 days

0

13

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

Note: Use 2 After Serial No. 2411100004, or order according to design used on engine

$2.49

$

In Stock, only 2 left!

0

14

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

Note: Replaced by 24-085-01

$149.99

$

In Stock, Qty 15

0

15

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

$2.49

$

Usually ships in 2-5 days

0

17

Kohler 12 132 02-S

PLUG, SPARK (STD)

$3.49

$

In Stock, Qty 20+

0

18

Kohler 12 584 04-S

MODULE, IGNITION

$33.99

$

In Stock, only 1 left!

0

19

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 6

0

1212696-S

Kohler 12 126 96-S

BRACKET, GROUND STRAP

Note: Not Illustrated. 6" - 18 gauge - terminals: 2 insulated grip barrel eyelets

$2.49

$

Usually ships in 2-5 days

0

2551805-S

Kohler 25 518 05-S

LEAD

Note: Not Illustrated. 5" - 14 gauge - terminals: 2 uninsulated push on tabs

$4.99

$

Usually ships in 2-5 days

0

1251801-S

Kohler 12 518 01-S

LEAD

Note: Not Illustrated. 19" - 18 gauge - terminals: 1 uninsulated push on tab, 1 fully insulated push on tab

$19.99

$

In Stock, only 1 left!

0
