CV14-14108 - Kohler Command PRO Engine, Made for FHP, 14hp Fuel System 8-27-150 Parts Diagram

Command PRO Engine, Made for FHP, 14hp

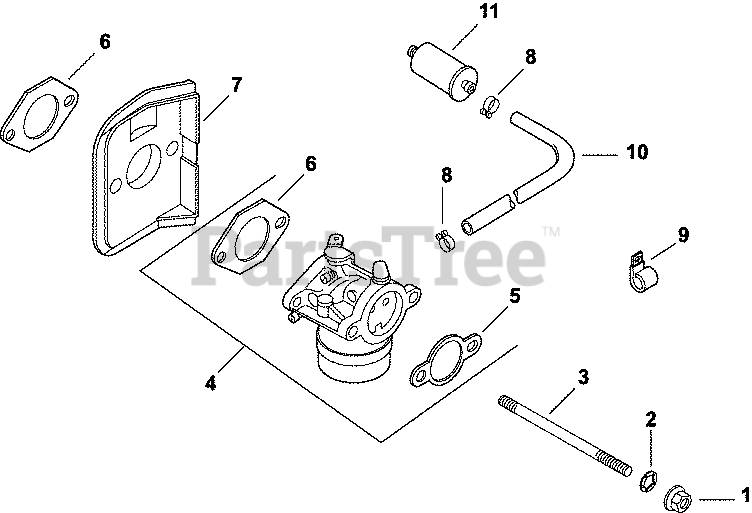

Fuel System 8-27-150 Parts Diagram

  • Title

1

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 8

0

2

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

$2.49

$

In Stock, only 3 left!

0

3

Kohler M-629116-S

STUD,M6X1.0X116

$3.49

$

In Stock, only 2 left!

0

4

Kohler 12 853 94-S

KIT, CARB W/GASKETS - USE 42 853 03-S
(Superseded to 42 853 03-S)

Note: (includes 5,6)

$348.99

$

In Stock, only 1 left!

0

5

Kohler 12 041 02-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 5

0

6

Kohler 12 041 01-S

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 14

0

7

Kohler 12 265 08-S

DEFLECTOR, HEAT

$9.49

$

In Stock, only 2 left!

0

8

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

9

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, only 4 left!

0

10

Kohler 25 353 10-S

LINE, FLEXIBLE FUEL 9.0

$6.49

$

In Stock, only 1 left!

0

11

Kohler 25 050 07-S

FILTER, FUEL

$10.99

$

In Stock, only 3 left!

0

1251824-S

Kohler 12 518 24-S

LEAD

Note: NOT ILLUSTRATED

$4.49

$

In Stock, only 1 left!

0

M-561010-S

Kohler M-561010-S

SCREW, THRD FRM M5X0.8X10

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

1252103-S

Kohler 12 521 03-S

KIT, INLET SEAT (GRAVITY) CMD

Note: NOT ILLUSTRATED

$62.99

$

In Stock, only 1 left!

0
