CV14-14107 - Kohler Command PRO Engine, Made for Simplicity, 14hp Fuel System 8-27-146 Parts Diagram

Command PRO Engine, Made for Simplicity, 14hp

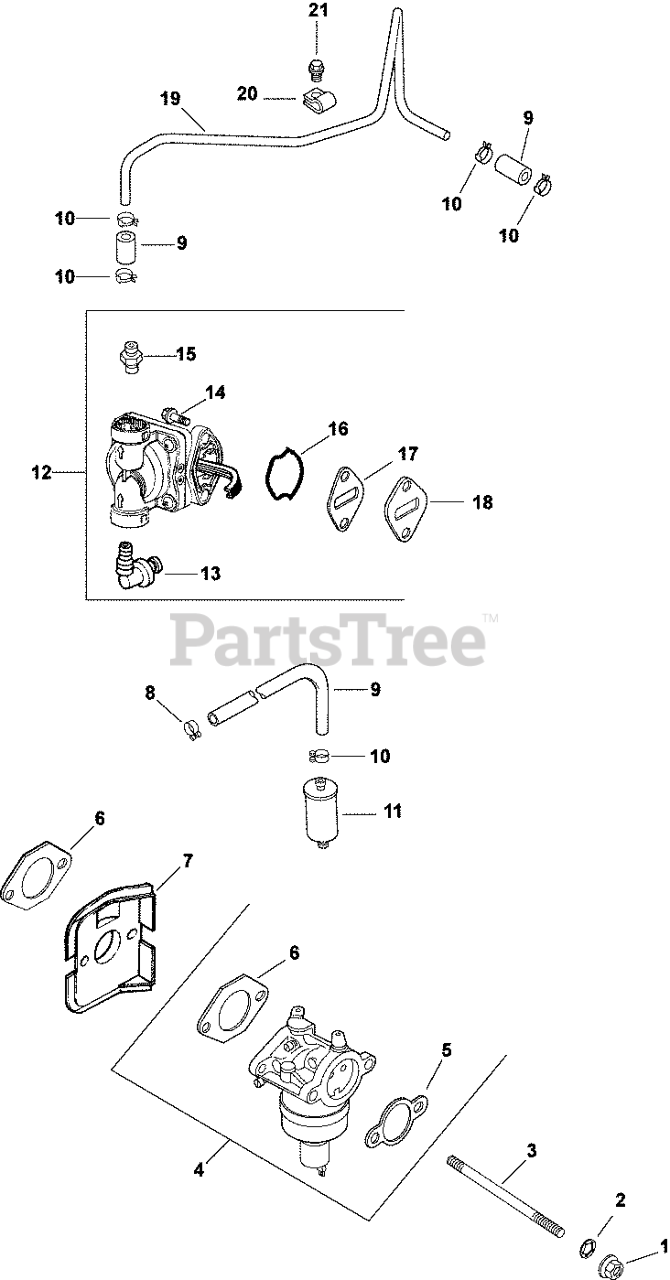

Fuel System 8-27-146 Parts Diagram

  • Title

1

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 11

0

2

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

$2.49

$

In Stock, only 3 left!

0

3

Kohler M-629116-S

STUD,M6X1.0X116

$3.49

$

In Stock, only 2 left!

0

4

Kohler 12 853 93-S

KIT, CARBURETOR

Note: (includes 5,6)

$269.99

$

In Stock, only 1 left!

0

5

Kohler 12 041 02-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 7

0

6

Kohler 12 041 01-S

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 15

0

7

Kohler 12 265 08-S

DEFLECTOR, HEAT

$9.49

$

In Stock, only 2 left!

0

8

Kohler 25 237 08-S

CLAMP, BAND SPRING HOSE-(#2523737S)
(Superseded to 25 237 37-S)

$2.49

$

In Stock, Qty 11

0

9

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 7

0

10

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 2 left!

0

11

Kohler 25 050 21-S

FILTR,FUEL 75 MICRON (GRAVTY FEED)

$8.99

$

In Stock, Qty 20+

0

12

Kohler 12 559 02-S

KIT, FUEL PUMP

Note: (includes 13-18, 25 141 06-S, M-645020-S)

$48.99

$

In Stock, Qty 7

0

13

Kohler 12 294 13-S

CONNECTOR, 90 DEG. HOSE

$6.49

$

In Stock, only 1 left!

0

14

Kohler M-664020-S

SCREW, LBD SKT M6x1.0x20-(#25086403S)
(Superseded to 25 086 403-S)

$2.49

$

In Stock, only 2 left!

0

15

Kohler 25 294 09-S

KIT, STRAIGHT FITTING

$6.49

$

In Stock, only 1 left!

0

16

Kohler 25 153 04-S

O-RING, FUEL PUMP

$2.99

$

In Stock, only 2 left!

0

17

Kohler 25 041 10-S

GASKET, FUEL PUMP

$3.49

$

In Stock, only 1 left!

0

18

Kohler 12 112 05-S

SPACER, FUEL PUMP

$7.49

$

In Stock, only 2 left!

0

19

Kohler 12 123 19-S

LINE, FUEL

$16.99

$

In Stock, only 2 left!

0

20

Kohler 12 154 01-S

CLIP, TUBE & WIRING (KM)

$2.49

$

In Stock, only 1 left!

0

21

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 3 left!

0

M-561010-S

Kohler M-561010-S

SCREW, THRD FRM M5X0.8X10

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

1275592-S

Kohler 12 755 92-S

KIT, HIGH ALTITUDE (+10,000 FT)

Note: NOT ILLUSTRATED

$15.99

$

Usually ships in 2-5 days

0

1275702-S

Kohler 12 757 02-S

KIT, REPAIR FLOAT

Note: NOT ILLUSTRATED

$13.99

$

In Stock, only 3 left!

0

1275703-S

Kohler 12 757 03-S

KIT, REPAIR CARBURETOR (PUMP FEED)

Note: NOT ILLUSTRATED

$35.99

$

In Stock, Qty 8

0

1275708-S

Kohler 12 757 08-S

KIT, CHOKE REPAIR

Note: NOT ILLUSTRATED

$36.99

$

Usually ships in 2-5 days

0

1275733-S

Kohler 12 757 33-S

KIT, REPAIR SOLENOID

Note: NOT ILLUSTRATED

$135.99

$

In Stock, only 1 left!

0

1275737-S

Kohler 12 757 37-S

KIT, REPAIR BOWL REPLACEMENT

Note: NOT ILLUSTRATED

$16.99

$

In Stock, Qty 6

0

1245403-S

Kohler 12 454 03-S

TIE, CABLE

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

1251824-S

Kohler 12 518 24-S

LEAD

Note: NOT ILLUSTRATED (20" - 20 gauge - uninsulated push on and insulated socket terminals)

$4.49

$

In Stock, only 1 left!

0

2545403-S

Kohler 25 454 03-S

TIE, WIRE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2514106-S

Kohler 25 141 06-S

TOOL, INSTALLATION (SNAP RING)

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

M-645020-S

Kohler M-645020-S

SCREW,FLG THD FRM M6X1.0X20-(#25086396S)
(Superseded to 25 086 396-S)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 1 left!

0

1252104-S

Kohler 12 521 04-S

KIT, INLET SEAT (PRESSURE) CMD

Note: NOT ILLUSTRATED

$60.99

$

In Stock, only 1 left!

0
