CV14-14101 - Kohler Command PRO Engine, Made for WI Engineering, 14hp Fuel System 8-27-1 Parts Diagram

Command PRO Engine, Made for WI Engineering, 14hp

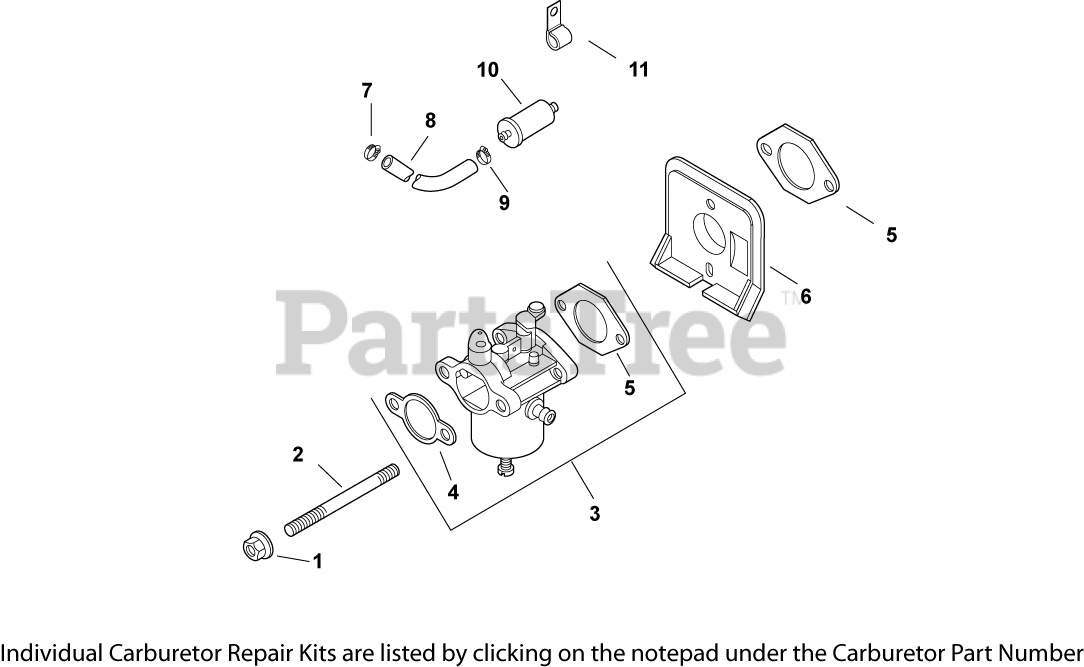

Fuel System 8-27-1 Parts Diagram

  • Title

1

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 8

0

2

Kohler M-629116-S

STUD,M6X1.0X116

$3.49

$

In Stock, only 2 left!

0

3

Kohler 12 853 140-S

KIT, CARBURETOR w/GASKETS

Note: (includes 4,5)

$269.99

$

In Stock, only 1 left!

0

4

Kohler 12 041 02-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 5

0

5

Kohler 12 041 01-S

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 14

0

6

Kohler 12 265 08-S

DEFLECTOR, HEAT

$9.49

$

In Stock, only 2 left!

0

7

Kohler 25 237 08-S

CLAMP, BAND SPRING HOSE-(#2523737S)
(Superseded to 25 237 37-S)

$2.49

$

In Stock, Qty 11

0

8

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 6

0

9

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

10

Kohler 25 050 21-S

FILTR,FUEL 75 MICRON (GRAVTY FEED)

$8.99

$

In Stock, Qty 20+

0

11

Kohler 25 154 09-S

CLIP, CABLE

$3.99

$

Usually ships in 2-5 days

0
