CV14-14100 - Kohler Command PRO Engine, Made for Kunz, 14hp Engine Controls 9-27-2 Parts Diagram

Command PRO Engine, Made for Kunz, 14hp

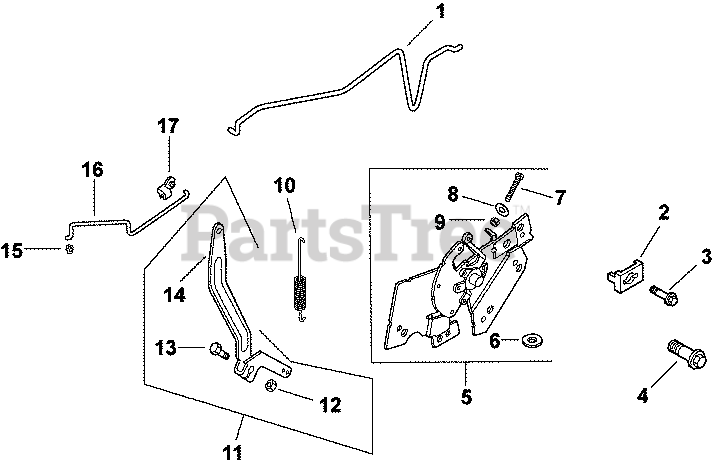

Engine Controls 9-27-2 Parts Diagram

  • Title

1

Kohler 12 079 07-S

LINKAGE, CHOKE

$7.99

$

In Stock, only 1 left!

0

2

Kohler 12 237 01-S

CLAMP, CABLE
(Superseded to 25 237 53-S)

$3.49

$

In Stock, Qty 5

0

3

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

4

Kohler M-664020-S

SCREW, LBD SKT M6x1.0x20-(#25086403S)
(Superseded to 25 086 403-S)

$2.49

$

In Stock, only 2 left!

0

5

Kohler 12 536 02-S

CONTROL, SPEED

Note: (includes 6-9)

$60.99

$

Usually ships in 2-5 days

0

6

Kohler 230293-S

SPACER

$7.49

$

Usually ships in 2-5 days

0

7

Kohler M-401030-S

SCREW, CAP M4X.7X30

$3.49

$

In Stock, Qty 9

0

8

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, only 2 left!

0

9

Kohler M-446030-S

NUT, M4X0.7

$2.49

$

In Stock, only 4 left!

0

10

Kohler 52 089 07-S

SPRING, GOVERNOR

$

$

Not available

11

Kohler 12 755 83-S

KIT, GOVERNOR LEVER

Note: (includes 12-14)

$6.49

$

In Stock, only 1 left!

0

12

Kohler 12 100 07-S

NUT, FLANGE 1/4-20

$2.49

$

In Stock, only 2 left!

0

13

Kohler 52 211 04-S

BOLT, RD HD SQ NCK 1/4-20X1"

$4.99

$

Usually ships in 2-5 days

0

14

Kohler 12 090 28-S

LEVER, GOVERNOR

$5.99

$

In Stock, only 1 left!

0

15

Kohler 25 158 08-S

BUSHING, LINKAGE RETAINING

$5.99

$

In Stock, Qty 19

0

16

Kohler 12 079 01-S

LINKAGE, THROTTLE

$11.99

$

In Stock, only 1 left!

0

17

Kohler 25 158 11-S

BUSHING, THROTTLE LINKAGE

$5.99

$

In Stock, Qty 13

0
