CV13-21538 - Kohler Command PRO Engine, Made for Scag, 13hp, 9.7kW Starting System 7-27-66 Parts Diagram

Command PRO Engine, Made for Scag, 13hp, 9.7kW

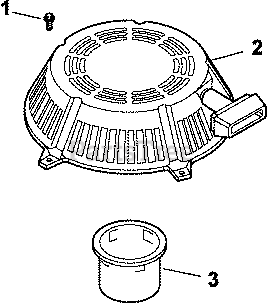

Starting System 7-27-66 Parts Diagram

  • Title

1

Kohler M-550010-S

SCREW, HVY FLG M5X.8X10

$3.99

$

In Stock, only 1 left!

0

2

Kohler 12 165 02-S

STARTER ASSY, RECOIL-USE (#12 165 04-S)
(Superseded to 24 165 02-S)

$76.99

$

In Stock, only 2 left!

0

3

Kohler 15 109 01-S

CUP

$21.99

$

In Stock, only 1 left!

0

1211307-S

Kohler 12 113 07-S

DECAL, STARTING - DISCONTINUED

Note: NOT ILLUSTRATED

$

$

Not available
