CV13-21513 - Kohler Command PRO Engine, Made for Allen Power, 13hp, 9.7kW Blower Housing & Baffles 6-27-56 Parts Diagram

Command PRO Engine, Made for Allen Power, 13hp, 9.7kW

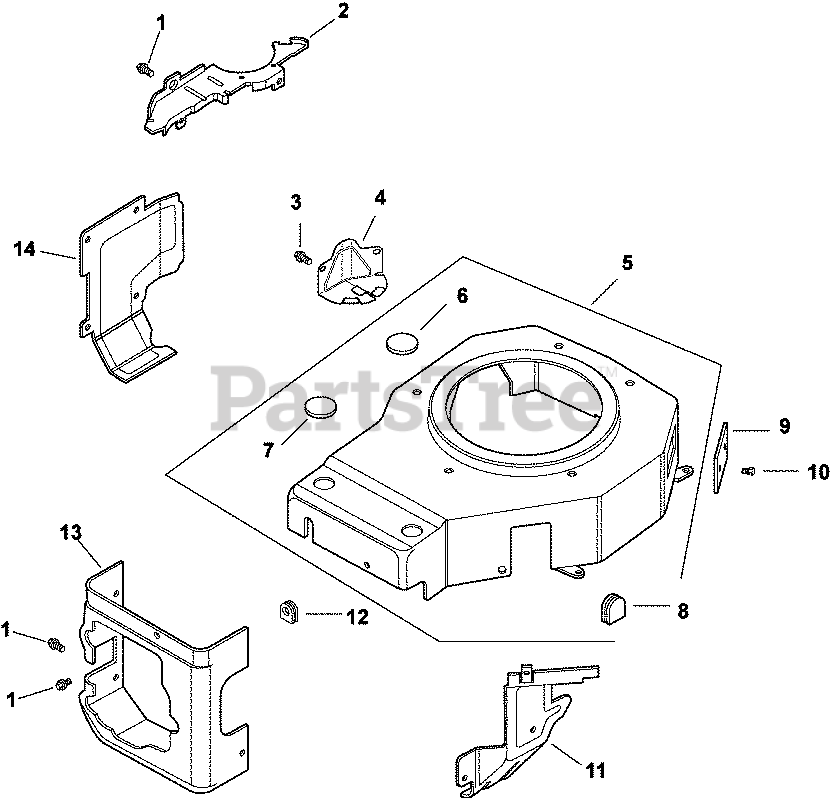

Blower Housing & Baffles 6-27-56 Parts Diagram

  • Title

1

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

2

Kohler 12 146 07-S

PLATE, BACKING

$9.49

$

Usually ships in 2-5 days

0

3

Kohler M-550010-S

SCREW, HVY FLG M5X.8X10

$3.99

$

In Stock, only 1 left!

0

4

Kohler 12 096 29-S

COVER, STARTER MOTOR

$12.99

$

Usually ships in 2-5 days

0

5

Kohler 12 027 68-S

KIT, BLOWER HOUSING

Note: (includes 6-8, 41 037 10-S)

$220.99

$

Usually ships in 2-5 days

0

6

Kohler 25 139 17-S

PLUG, BUTTON 1/2

$2.49

$

Usually ships in 2-5 days

0

7

Kohler 25 139 16-S

PLUG, BUTTON 9/16

$4.49

$

Usually ships in 2-5 days

0

8

Kohler 12 313 05-S

GROMMET

$21.99

$

Usually ships in 2-5 days

0

9

Kohler 12 096 27-S

COVER, REG/RECTIFIER - DISCONTINUED

$

$

Not available

10

Kohler M-639016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, Qty 6

0

11

Kohler 12 063 10-S

BAFFLE, INTAKE SIDE

$47.99

$

Usually ships in 2-5 days

0

12

Kohler 12 313 03-S

GROMMET

$

$

Not available

13

Kohler 12 063 08-S

BAFFLE, CYLINDER HEAD

$48.99

$

Usually ships in 2-5 days

0

14

Kohler 12 063 19-S

BAFFLE, CYLINDER - DISCONTINUED

$

$

Not available

M-561016-S

Kohler M-561016-S

SCREW - USE M-545016-S
(Superseded to M-545016-S)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, Qty 15

0

4103710-S

Kohler 41 037 10-S

NAMEPLATE, SERVICE

Note: NOT ILLUSTRATED

$8.99

$

In Stock, only 4 left!

0
