CV12.5-1284 - Kohler Command PRO Engine, Made for Bunton, 12.5hp Ignition/Electrical 5-27-56 Parts Diagram

Command PRO Engine, Made for Bunton, 12.5hp

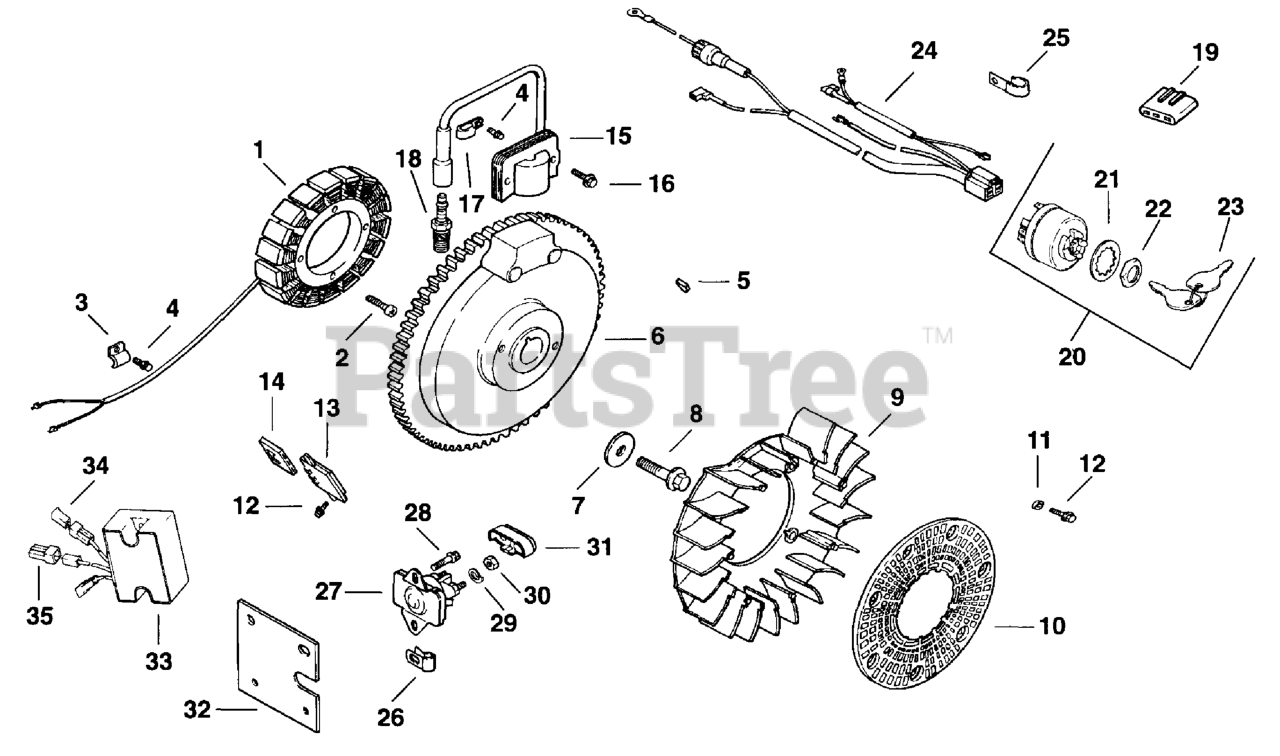

Ignition/Electrical 5-27-56 Parts Diagram

  • Title

2

Kohler X-67-98-S

SCREW, WSH HD TAP #10-32x9/16" USE 25 086 110-S
(Superseded to 25 086 110-S)

Note: Use 4 Before Serial No. 2411100014 or order according to design used on engine

$3.49

$

Usually ships in 2-5 days

0

2

Kohler X-67-98-S

SCREW, WSH HD TAP #10-32x9/16" USE 25 086 110-S
(Superseded to 25 086 110-S)

Note: Use 2 After Serial No. 2411100004 or order according to design used on engine

$3.49

$

Usually ships in 2-5 days

0

4

Kohler M-0545010

SCREW - USE M-545010
(Superseded to M-545010)

$4.49

$

In Stock, only 2 left!

0

5

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 6

0

6

Kohler 12 025 17

FLYWHEEL - USE 12 025 29
(Superseded to 12 025 29)

$

$

Not available

7

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

8

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

9

Kohler 12 157 02

FAN - USE 12 157 03
(Superseded to 12 157 03-S)

$

$

Not available

10

Kohler 12 162 03-S

SCREEN

$12.99

$

Usually ships in 2-5 days

0

11

Kohler 12 112 01

BOLT - USE 25 086 47
(Superseded to 25 086 47)

$2.49

$

In Stock, Qty 7

0

12

Kohler M-0639016

SCREW - USE M-639016
(Superseded to M-639016)

$2.49

$

In Stock, Qty 6

0

15

Kohler 12 584 02

MODULE - USE 12 584 05
(Superseded to 12 584 05)

$125.99

$

In Stock, only 1 left!

0

16

Kohler SM-0545020

Screw, hex. flange M5x0.8x20
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 20+

0

17

Kohler X-728-1-S

CLIP

$2.49

$

Usually ships in 2-5 days

0

18

Kohler 12 132 02-S

PLUG, SPARK (STD)

$4.49

$

In Stock, Qty 20+

0

19

Kohler 277563-S

CONNECTOR (1 CONTACT)

$6.49

$

Usually ships in 2-5 days

0

1251801-S

Kohler 12 518 01-S

LEAD

Note: 19" - 18 gauge - terminals: 1 fully insulated push on tab, 1 uninsulated push on tab; Not illustrated

$19.99

$

In Stock, only 1 left!

0
