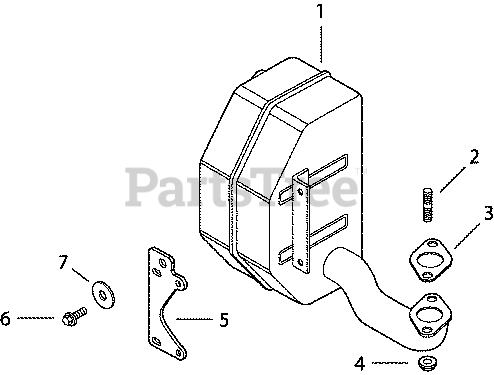

CV12.5-1279 - Kohler Command PRO Engine, Made for Snapper, 12.5hp Exhaust 11-27-78 Parts Diagram

Command PRO Engine, Made for Snapper, 12.5hp

Exhaust 11-27-78 Parts Diagram

  • Title

1

Kohler 12 068 01-S

MUFFLER

$328.99

$

Usually ships in 2-5 days

0

2

Kohler 25 072 04-S

STUD, EXHAUST (KM)-USE 25 072 24-S
(Superseded to 25 072 24-S)

$3.99

$

In Stock, only 3 left!

0

3

Kohler 12 041 03-S

GASKET, EXHAUST MANIFOLD

$7.49

$

In Stock, Qty 10

0

4

Kohler M-841080-S

NUT, FLG M8X1.25

$2.49

$

In Stock, only 1 left!

0

5

Kohler 12 126 71-S

BRACKET, MUFFLER

$

$

Not available

6

Kohler M-639016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, Qty 6

0

7

Kohler X-25-52-S

WASHER, FLAT 1/4"

$3.99

$

In Stock, only 1 left!

0

1211220-S

Kohler 12 112 20-S

SPACER

Note: NOT ILLUSTRATED

$7.99

$

In Stock, only 1 left!

0

M-645025-S

Kohler M-645025-S

SCREW,FLG THD FRM M6X1.0X25-(#25086395S)
(Superseded to 25 086 395-S)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 3 left!

0
