CV12.5-1210 - Kohler Command PRO Engine, Made for Cub Cadet, 12.5hp Head/Valve/Breather 4-27-206 (TP-2351) Rev 9/6/2006 Parts Diagram

Command PRO Engine, Made for Cub Cadet, 12.5hp

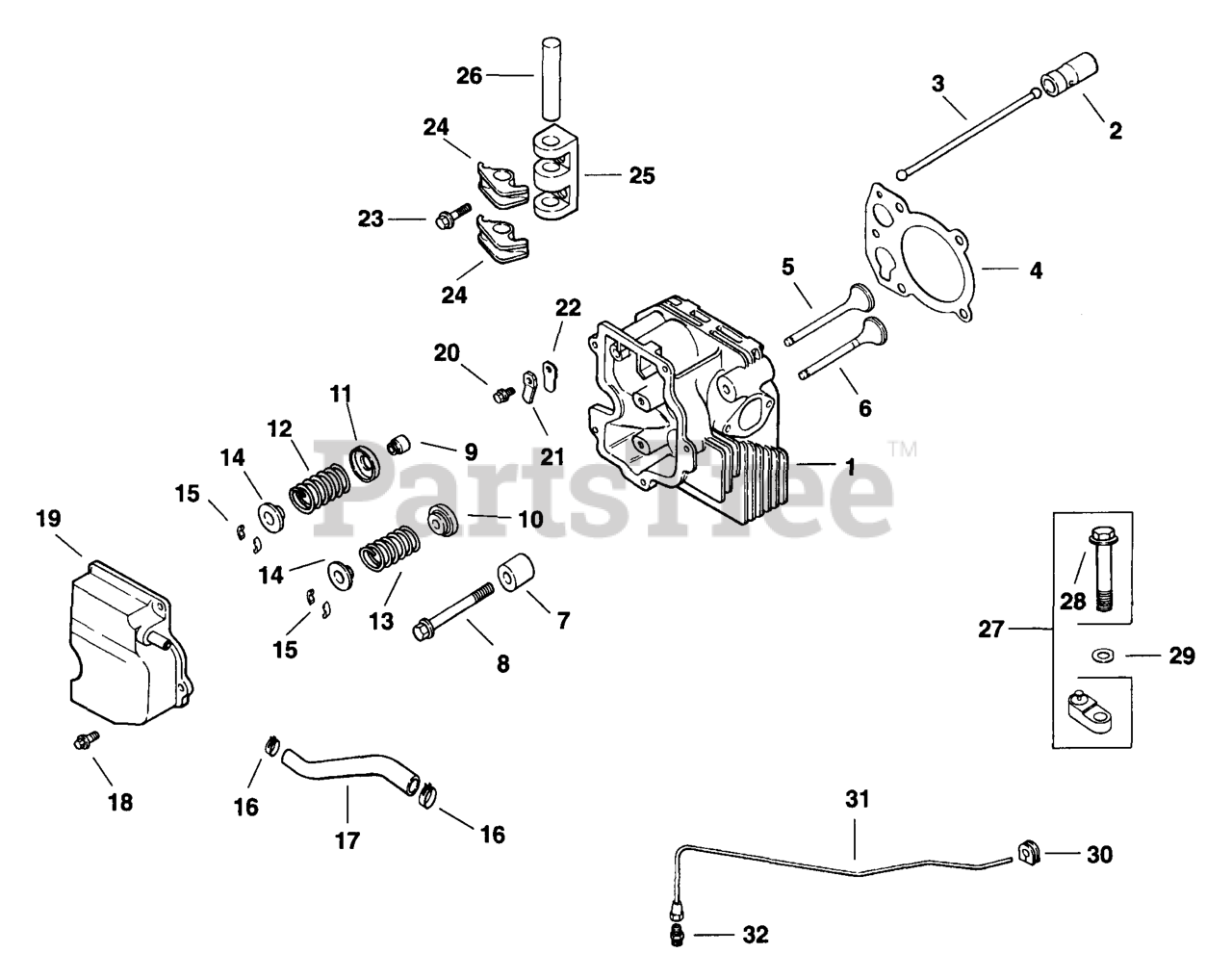

Head/Valve/Breather 4-27-206 (TP-2351) Rev 9/6/2006 Parts Diagram

  • Title

1

Kohler 12 318 01

KIT - USE 12 755 51
(Superseded to 12 755 81-S)

Note: Replaced by 12-755-58

$487.99

$

Usually ships in 2-5 days

0

2

Kohler 12 351 01

LIFTER - USE 12 351 02
(Superseded to 12 351 02)

$23.99

$

In Stock, only 1 left!

0

3

Kohler 12 411 01-S

USE 12 411 04-S PUSH ROD
(Superseded to 12 411 04-S)

$4.49

$

In Stock, only 1 left!

0

4

Kohler 12 041 08-S

GASKET, CYLINDER HEAD

$20.99

$

Usually ships in 2-5 days

0

5

Kohler 12 017 01-S

VALVE, INTAKE

$32.99

$

Usually ships in 2-5 days

0

5

Kohler 12 017 02-S

VALVE, INTAKE (.25 MM)

$30.99

$

In Stock, only 1 left!

0

6

Kohler 12 016 01-S

VALVE, EXHAUST

$54.99

$

Usually ships in 2-5 days

0

6

Kohler 12 016 02-S

VALVE, EXHAUST (.25 MM)

$

$

Not available

7

Kohler 12 112 04

KIT - USE 12 755 22
(Superseded to 12 755 22)

Note: Replaced by 12-755-22

$49.99

$

Usually ships in 2-5 days

0

8

Kohler M-1040080

SCREW - USE 12 086 15
(Superseded to 12 086 15)

$3.99

$

In Stock, Qty 12

0

9

Kohler 12 032 02

SEAL - USE 24 032 05
(Superseded to 24 032 05)

Note: Replaced by 24-032-05

$11.99

$

In Stock, Qty 20+

0

10

Kohler 12 413 01-S

ROTATOR - DISCONTINUED

Note: Before Serial No. 1933503554

$

$

Not available

11

Kohler 52 018 01

RETAINER - USE 235011
(Superseded to 235011)

Note: Before Serial No. 1933503554

$6.49

$

In Stock, only 2 left!

0

11

Kohler 235011-S

RETAINER, SPRING

Note: After Serial No. 1933503554

$6.49

$

In Stock, only 2 left!

0

12

Kohler 12 089 01-S

USE 12 089 34-S VALVE
(Superseded to 12 089 34-S)

Note: Free length of 48.69 mm. Before Serial No. 1933503554

$10.99

$

In Stock, only 2 left!

0

12

Kohler 12 089 01-S

USE 12 089 34-S VALVE
(Superseded to 12 089 34-S)

Note: Free length of 48.69 mm. After Serial No. 1933503544

$10.99

$

In Stock, only 2 left!

0

13

Kohler 12 089 15-S

SPRING-(#DSC)

Note: Free length of 55.8 mm. Use after Serial No. 1933503544

$

$

Not available

14

Kohler 12 173 01-S

RETAINER, VALVE SPRING - USE 25 173 28-S
(Superseded to 25 173 28-S)

$8.49

$

In Stock, only 3 left!

0

15

Kohler 12 755 03-S

KIT, RETAINER

$5.99

$

In Stock, Qty 7

0

16

Kohler X-426-9-S

CLAMP, HOSE 1/2" USE 25 237 14-S
(Superseded to 25 237 14-S)

$4.99

$

In Stock, only 3 left!

0

17

Kohler 12 326 03-S

HOSE

$10.99

$

In Stock, Qty 9

0

18

Kohler M-0645020

SCREW - USE M-645020
(Superseded to M-645020)

$2.49

$

In Stock, only 1 left!

0

19

Kohler 12 096 07-S

USE 12 755 102-S KIT
(Superseded to 12 755 102-S)

$86.99

$

Usually ships in 2-5 days

0

20

Kohler M-0545010

SCREW - USE M-545010
(Superseded to M-545010)

$4.49

$

In Stock, only 2 left!

0

21

Kohler 12 018 01-S

RETAINER - UE 66 018 04-S
(Superseded to 66 018 04-S)

$4.99

$

In Stock, only 4 left!

0

22

Kohler 12 402 01

REED - USE 12 402 02
(Superseded to 24 402 03)

Note: Replaced by 24-402-03

$3.49

$

In Stock, only 1 left!

0

23

Kohler M-0642025

Screw, hex. flange M6x1.0x25

$

$

Not available

24

Kohler 12 186 01-S

ARM - DISCONTINUED

$

$

Not available

25

Kohler 12 126 05-S

BRACKET

$36.99

$

Usually ships in 2-5 days

0

26

Kohler 12 144 03-S

SHAFT - (#DSC)

$

$

Not available

1275522-S

Kohler 12 755 22-S

KIT, HEAD GASKET

Note: Not Illustrated. Includes 4,33-35, velstud fastener 12-290-01 qty. 5. For part replacement after installation of kit, order corresponding Style "B" components.

$49.99

$

Usually ships in 2-5 days

0
