CV11-1111 - Kohler Command PRO Engine, Made for Pioneer Eclipse, 11hp, 8.2kW Fuel System (Cont.) 8-27-83 (TP-2351) Parts Diagram

Command PRO Engine, Made for Pioneer Eclipse, 11hp, 8.2kW

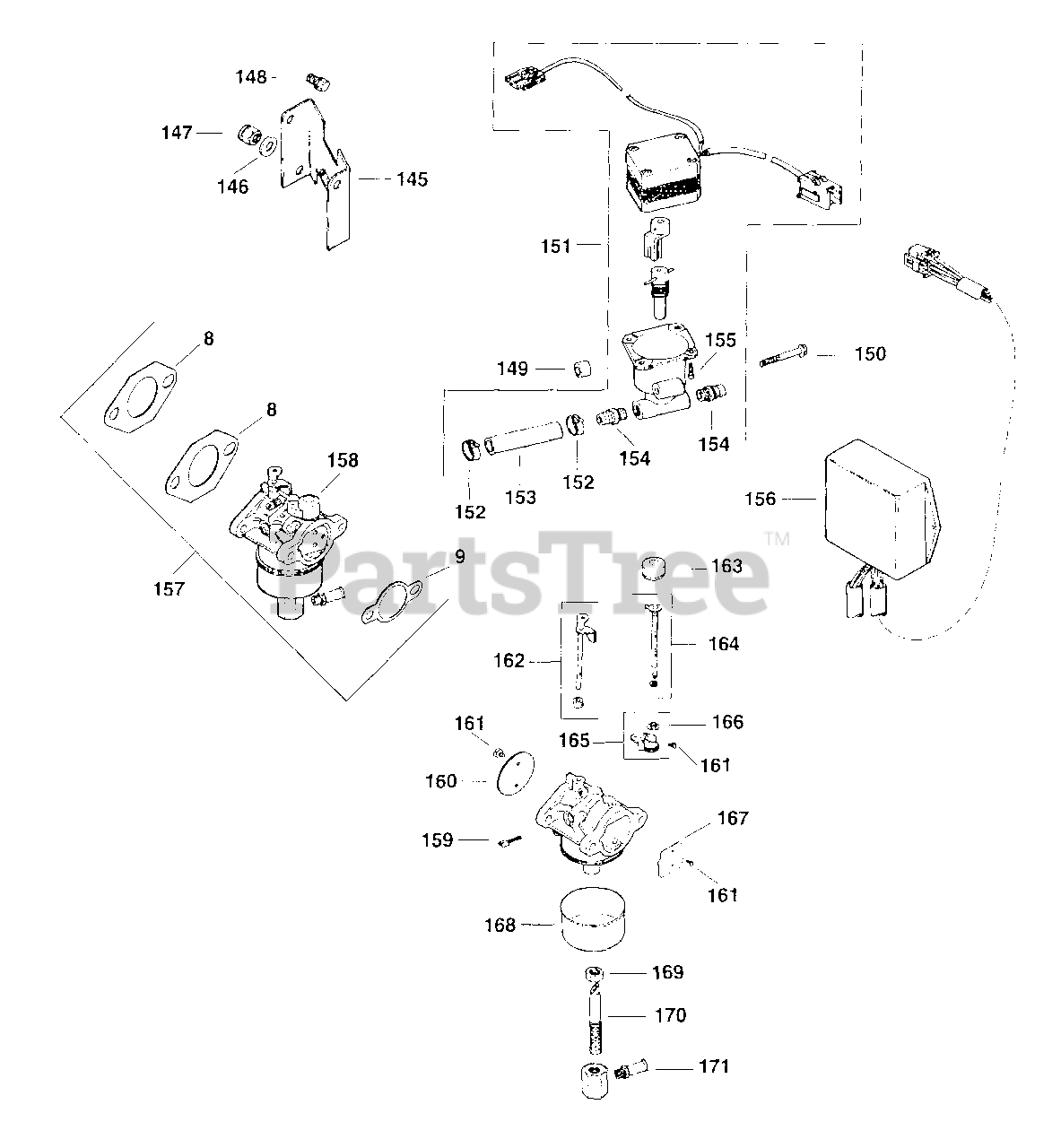

Fuel System (Cont.) 8-27-83 (TP-2351) Parts Diagram

  • Title

8

Kohler 12 041 01-S

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 14

0

9

Kohler 12 041 02-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 5

0

145

Kohler 12 126 48-S

BRACKET - DISCONTINUED

$

$

Not available

146

Kohler X-25-53-S

WASHER, FLAT 1/4" (O.D. 5/8")

$3.49

$

Usually ships in 2-5 days

0

147

Kohler M-0641060

NUT - USE M-641060
(Superseded to M-641060)

$4.49

$

In Stock, Qty 6

0

148

Kohler M-0545010

SCREW - USE M-545010
(Superseded to M-545010)

$4.49

$

In Stock, only 2 left!

0

149

Kohler 265861-S

SPACER

$30.99

$

Usually ships in 2-5 days

0

150

Kohler M-0639045

Screw, hex. flange M6x1.0x45
(Superseded to M-639045-S)

$

$

Not available

151

Kohler 12 462 08-S

VALVE, FUEL METERING

$604.99

$

Usually ships in 2-5 days

0

152

Kohler X-426-9-S

CLAMP, HOSE 1/2" USE 25 237 14-S
(Superseded to 25 237 14-S)

$4.99

$

In Stock, only 3 left!

0

153

Kohler 25 353 20-S

LINE, FLEXIBLE FUEL - DISC.

$

$

Not available

154

Kohler 12 294 06-S

FITTING, BARBED - USE 25 294 16-S
(Superseded to 25 294 16-S)

$

$

Not available

155

Kohler 25 086 44-S

SCREW, HEX SOCKET HEAD - DISCONTINUED

$

$

Not available

156

Kohler 12 526 01

CONTROL - USE 12 526 02
(Superseded to 12 526 02-S)

$

$

Not available

157

Kohler 12 853 34-S

KIT, CARBURETOR W/GASKET LPG - DISC.

Note: Includes 8,9,158, Carburetor assembly 12-053-38.

$

$

Not available

158

Kohler 12 053 38

USE 12 853 34

Note: Includes 159-171, carburetor repair 12-757-13

$

$

Not available

159

Kohler 12 086 04-S

SCREW

$4.49

$

In Stock, only 2 left!

0

160

Kohler 12 146 03-S

PLATE

$10.99

$

Usually ships in 2-5 days

0

161

Kohler 25 086 27-S

SCREW, VALVE

$4.49

$

Usually ships in 2-5 days

0

162

Kohler 12 144 09-S

SHAFT, THROTTLE

$14.99

$

In Stock, only 2 left!

0

163

Kohler 12 173 06-S

CAP, CHOKE LEVER

$5.99

$

In Stock, only 2 left!

0

164

Kohler 12 144 20-S

SHAFT, CHOKE

$28.99

$

Usually ships in 2-5 days

0

165

Kohler 12 757 12

KIT, CHOKE LEVER REPAIR - USE 12 757 32-S
(Superseded to 12 757 32-S)

Note: Includes 161,166

$13.99

$

In Stock, only 1 left!

0

166

Kohler 12 158 01-S

BUSHING, CHOKE

$12.99

$

Usually ships in 2-5 days

0

167

Kohler 12 146 12-S

PLATE, CHOKE

$4.49

$

Usually ships in 2-5 days

0

168

Kohler 12 104 01-S

BOWL

$7.49

$

In Stock, only 1 left!

0

169

Kohler 12 100 03-S

NUT, 3/8-24 JAM, GRADE 2 - DISC.

$

$

Not available

170

Kohler 12 462 07-S

VALVE, METERING - DISCONTINUED

$

$

Not available

171

Kohler 12 294 04-S

FITTING, HOSE TO PIPE

$29.99

$

Usually ships in 2-5 days

0

1275701-S

Kohler 12 757 01-S

KIT, CARBURETOR REPAIR (GRAVITY FEED)

Note: Not Illustrated. Includes carburetor gasket, air filter base gasket, fuel bowl gasket, bowl screw gasket, welch plug, inlet needle valve, valve inlet seat, solenoid seal

$27.99

$

Usually ships in 2-5 days

0

1275703-S

Kohler 12 757 03-S

KIT, REPAIR CARBURETOR (PUMP FEED)

Note: Not Illustrated. Includes carburetor gasket, air filter base gasket, fuel bowl gasket, bowl screw gasket, welch plug, inlet needle valve, valve inlet seat, solenoid seal

$35.99

$

In Stock, Qty 7

0

1275509

Kohler 12 755 09

KIT - USE 12 755 68
(Superseded to 12 755 68-S)

Note: Not Illustrated. Includes carburetor gasket, air filter base gasket, fuel bowl gasket, bowl screw gasket, main jet

$

$

Not available

1275536-S

Kohler 12 755 36-S

KIT USE 12 755 68-S
(Superseded to 12 755 68-S)

Note: Not Illustrated. Includes carburetor gasket, air filter base gasket, fuel bowl gasket, bowl screw gasket, main jet

$

$

Not available

1275708-S

Kohler 12 757 08-S

KIT, CHOKE REPAIR

Note: Not Illustrated. Includes choke lever, choke shaft assembly, choke plate, choke bushing, choke lever cap, valve screw

$36.99

$

Usually ships in 2-5 days

0

1275711-S

Kohler 12 757 11-S

KIT, CHOKE REPAIR

Note: Not Illustrated. Includes choke lever, choke shaft assembly, choke plate, choke bushing, choke lever cap, valve screw

$45.99

$

Usually ships in 2-5 days

0

1275713-S

Kohler 12 757 13-S

KIT, CHOKE REPAIR

Note: Not Illustrated. Includes choke lever, choke shaft assembly, choke plate, choke bushing, choke lever cap, valve screw

$47.99

$

Usually ships in 2-5 days

0
