CV 54 (970465101) - RedMax 54" Stand-On Mower, Kawasaki FX (2020-02) FRAME Parts Diagram

54" Stand-On Mower, Kawasaki FX

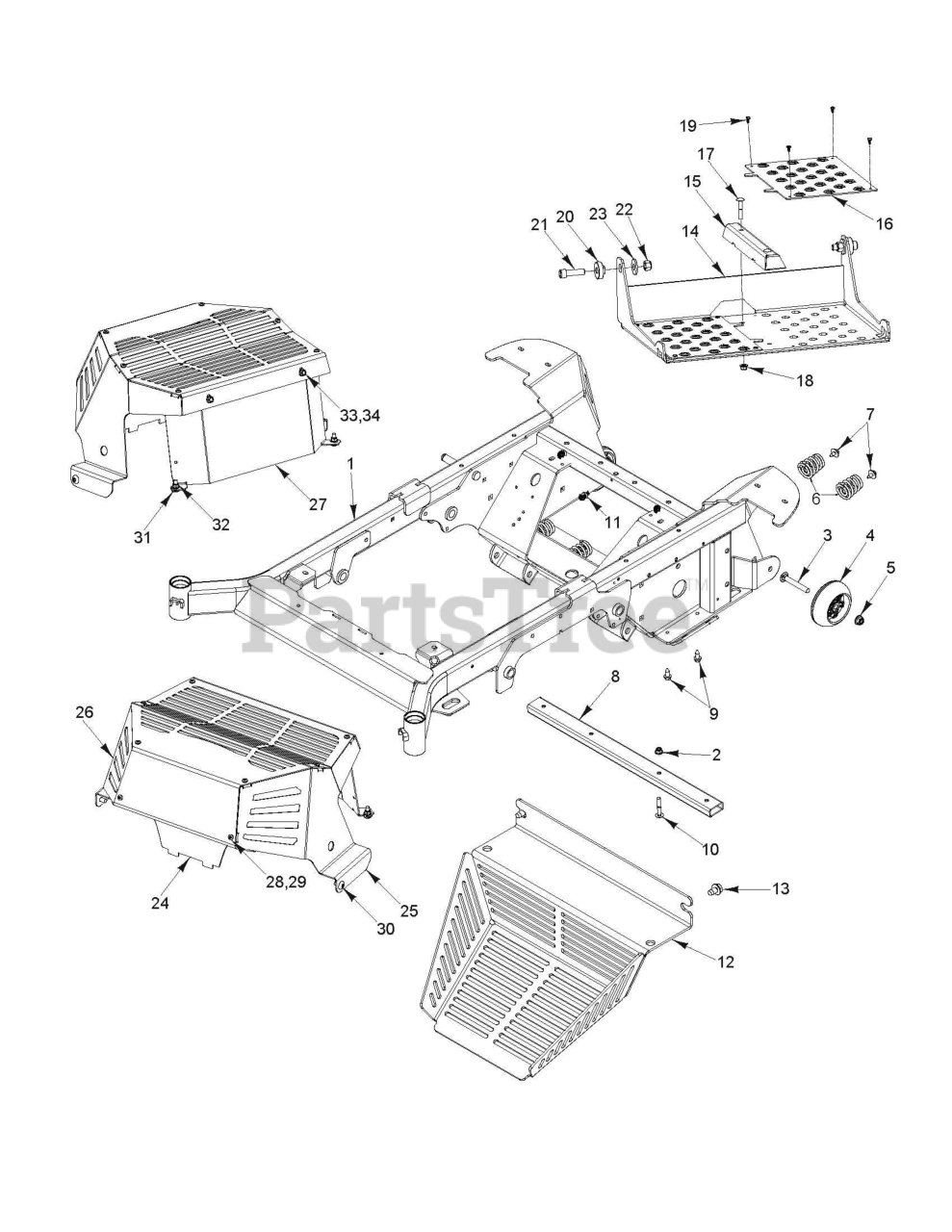

FRAME Parts Diagram

  • Title

1

RedMax 599352502

Frames

Note: Frame

$1595.99

$

Usually ships in 3-10 days

0

2

RedMax 521996502

GSPW Nuts

Note: "Nut, 3/8-16 Hex Flange Nyloc"

$3.99

$

In Stock, Qty 20+

0

3

RedMax 596584202

Screws

Note: "Screw, RHSNB 1/2-13"

$6.49

$

Usually ships in 3-10 days

0

4

RedMax 589527401

WHEEL.GAUGE.RALLY.NARROW

Note: "Wheel, Gauge"

$11.99

$

In Stock, Qty 10

0

5

RedMax 521991102

NUT 1/2-13 HEX FLANGE NYLOK CL

Note: "Nut, 1/2-13 Hex Flange Nylok"

$4.99

$

In Stock, Qty 7

0

6

RedMax 589483501

SPRING.COMPRESS.SEAT.TAPERED

Note: "Spring, Compression, Seat, Tapered"

$9.49

$

In Stock, only 2 left!

0

7

RedMax 532171877

BOLT, 5/16-18 X 1 3/4

Note: "Bolt, 5/16-18 Hex Flange"

$7.49

$

In Stock, Qty 5

0

8

RedMax 590782303

Tubes

Note: "Tube, Skidplate"

$37.99

$

Usually ships in 3-10 days

0

9

RedMax 817000616

SCREW 3/8-16X1

Note: "Screw, 3/8-16 Hex Flange"

$7.49

$

In Stock, only 3 left!

0

10

RedMax 595901401

Bolts

Note: Bolt 3/8-16 x 2 Gr. 5

$3.99

$

In Stock, only 4 left!

0

11

RedMax 592857401

CABLE, 1/4 BLACK FIR TREE

Note: "Clip, Cable"

$3.99

$

Usually ships in 3-10 days

0

12

RedMax 590742704

Covers

Note: "Cover, PTO"

$103.99

$

Usually ships in 3-10 days

0

13

RedMax 596030701

Screws

Note: "Screw 5/16-18 x 1/2"""

$3.99

$

In Stock, only 2 left!

0

14

RedMax 590742903

Plates

Note: "Plate, Operator Stand"

$227.99

$

Usually ships in 3-10 days

0

15

RedMax 595317603

Brackets

Note: "Bracket, Angle Operator Stand"

$13.99

$

Usually ships in 3-10 days

0

16

RedMax 590782904

Footrests

Note: "Footplate, Operator Stand"

$54.99

$

Usually ships in 3-10 days

0

17

RedMax 586306501

Bolts

Note: Bolt 5/16-18 x 1-3/4

$2.49

$

Usually ships in 3-10 days

0

18

RedMax 594944401

NUT HEXAGON FLANGE 5/16-18 ST

Note: Nut 5/16-18 Nyloc

$6.99

$

In Stock, Qty 20+

0

19

RedMax 596584701

Screws

Note: Screw 10-24 x .325

$2.49

$

Usually ships in 3-10 days

0

20

RedMax 586701702

Spacers

Note: Spacer

$6.99

$

Usually ships in 3-10 days

0

21

RedMax 592857901

BOLT 1/2-13 X 1.75 CAP

Note: Bolt 1/2-13 x 1.75

$4.99

$

Usually ships in 3-10 days

0

22

RedMax 596135601

GSPW NUTS

Note: Nut

$4.99

$

In Stock, Qty 20+

0

23

RedMax 595316401

Washers

Note: Washer

$3.99

$

In Stock, Qty 20+

0

24

RedMax 599206802

Covers

Note: "Cover, Pump, Center Panel"

$91.99

$

Usually ships in 3-10 days

0

25

RedMax 599206903

Covers

Note: "Cover, Pump, Side Panel LH"

$39.99

$

Usually ships in 3-10 days

0

26

RedMax 599206904

Covers

Note: "Cover, Pump, Side Panel RH"

$39.99

$

Usually ships in 3-10 days

0

27

RedMax 599207002

Baffles

Note: "Baffle, Pump"

$34.99

$

Usually ships in 3-10 days

0

28

RedMax 599372301

Screws

Note: Screw 1/4"-10 x .75 T30

$2.49

$

Usually ships in 3-10 days

0

29

RedMax 582478602

NUT FLG, NYLOCK, 1/4-20 GR G C

Note: Nut 1/4-20

$2.49

$

In Stock, Qty 20+

0

30

RedMax 592858201

SCREW

Note: Screw 3/8-16 x .625 Torx

$5.99

$

Usually ships in 3-10 days

0

31

RedMax 596435701

Bolts

Note: "Bolt 5/16-18 x 1.02"""

$3.99

$

In Stock, Qty 6

0

32

RedMax 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

Note: Nut 5/16-11 Flange Nyloc

$6.99

$

In Stock, Qty 20+

0

33

RedMax 592858702

Bolts

Note: Bolt 5/16-18 x .75

$4.99

$

Usually ships in 3-10 days

0

34

RedMax 539104763

U-CLIP 5/16-18 NUT RETAINER

Note: """U"" Clip 5/16-18 Nut Retainer"

$6.49

$

In Stock, Qty 9

0
