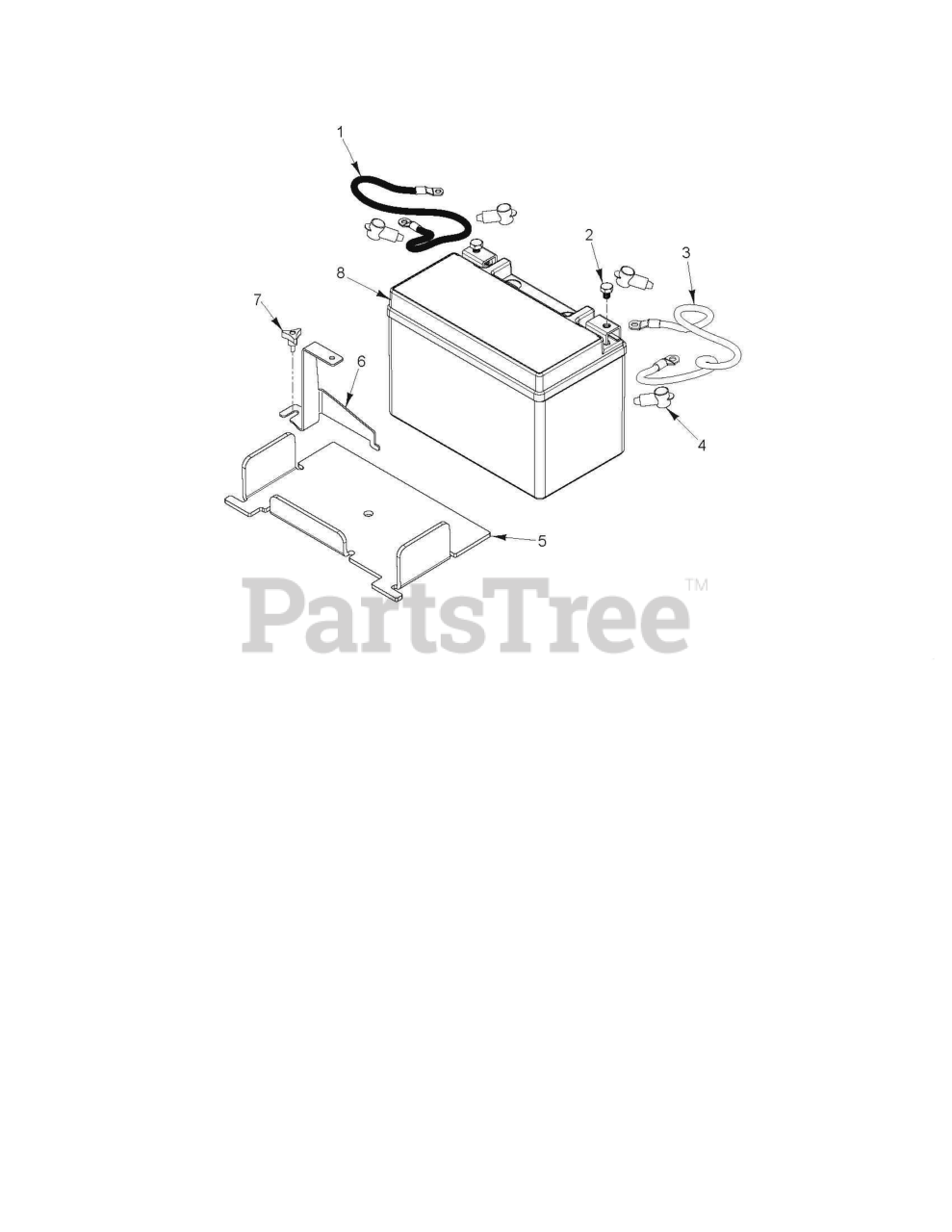

CV 54 (970465101) - RedMax 54" Stand-On Mower, Kawasaki FX (2020-02) ELECTRICAL Parts Diagram

54" Stand-On Mower, Kawasaki FX

ELECTRICAL Parts Diagram

  • Title

1

RedMax 592838401

Harnesses

Note: Ground Cable

$12.99

$

Usually ships in 3-10 days

0

2

RedMax 582460802

Screws

Note: Screw M6 x 8mm

$2.49

$

Usually ships in 3-10 days

0

3

RedMax 592838302

Harnesses

Note: Primary Cable

$24.99

$

Usually ships in 3-10 days

0

4

RedMax 539102759

INSULATOR

Note: Insulator

$4.99

$

In Stock, only 2 left!

0

5

RedMax 590577001

PAD BATTERY TEMP ISOLATION, ST

Note: "Pad, Battery"

$7.99

$

Usually ships in 3-10 days

0

6

RedMax 596992602

Brackets

Note: Bracket

$9.49

$

Usually ships in 3-10 days

0

7

RedMax 539104411

KNOB W/STUD
(Superseded to 597783101)

Note: Knob w/Stud

$4.99

$

In Stock, Qty 20+

0

8

RedMax 589819502

Batteries

Note: Battery

$157.99

$

Usually ships in 3-10 days

0

RedMax 592876801

HARNESS MAIN, V500X V500 CARBU

Note: Harness, Main

$241.99

$

Usually ships in 3-10 days

0

RedMax 592830801

HARNESS ASSY JUMPER, STAND ON

Note: Harness Assy. Jumper

$62.99

$

Usually ships in 3-10 days

0

RedMax 589838501

HARNESS.ADAPTER.KAWASAKI.FX.PZ

Note: Harness, Adapter Kawasaki

$22.99

$

Usually ships in 3-10 days

0

RedMax 592964701

HARNESS JUMPER, BLADE CLUTCH 1

Note: Harness, Jumper

$31.99

$

Usually ships in 3-10 days

0

RedMax 539976856

TIE, PLASTIC

Note: Cable Tie

$5.99

$

Usually ships in 3-10 days

0

RedMax 592621101

Cables

Note: Cable Tie with Edge Clip

$3.49

$

Usually ships in 3-10 days

0
