CV 54 (970465101) - RedMax 54" Stand-On Mower, Kawasaki FX (2020-02) CONSOLE Parts Diagram

54" Stand-On Mower, Kawasaki FX

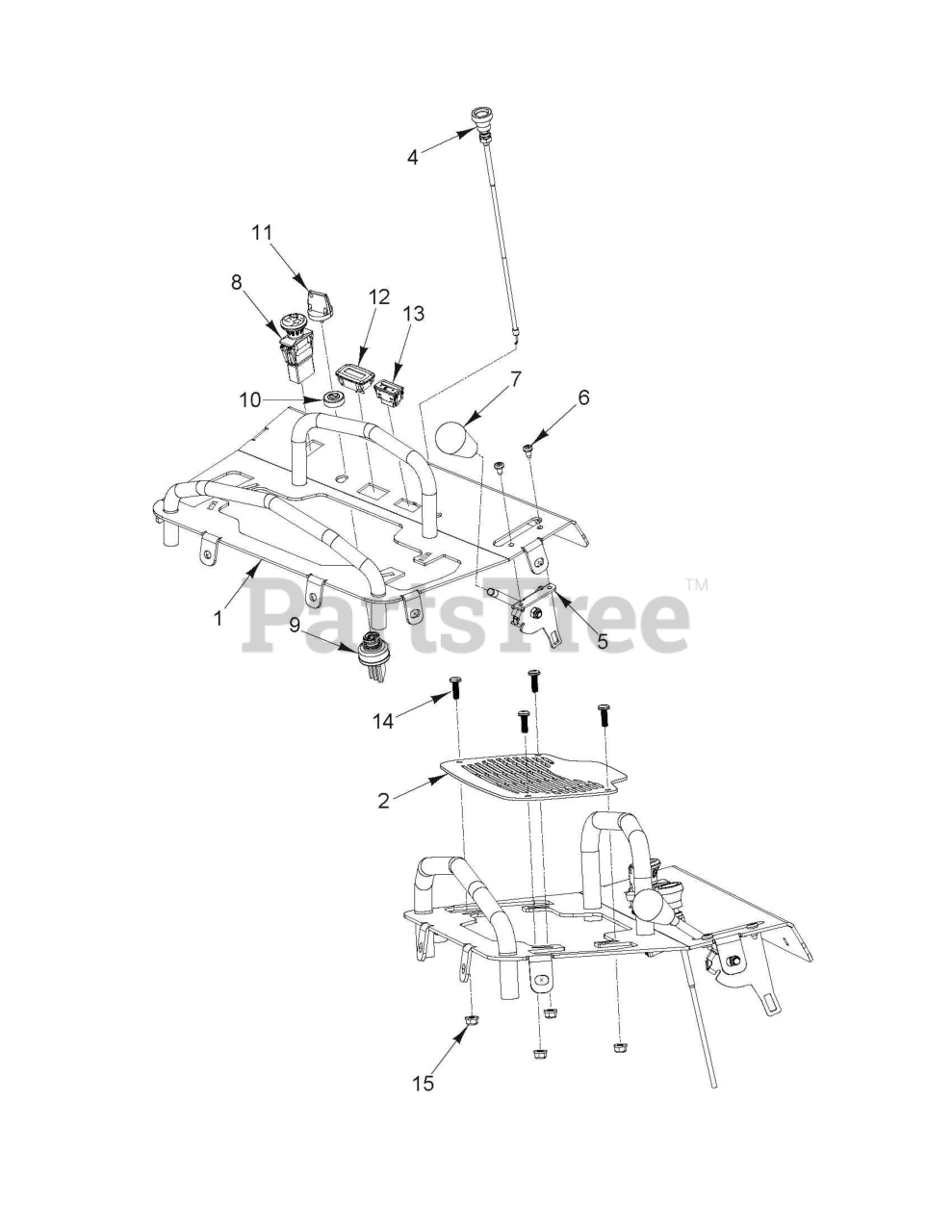

CONSOLE Parts Diagram

  • Title

1

RedMax 501866203

Controls

Note: Control Panel Weldment

$284.99

$

Usually ships in 3-10 days

0

2

RedMax 599146202

Covers

Note: Cover

$24.99

$

Usually ships in 3-10 days

0

4

RedMax 574206907

Cables

Note: "Cable, Choke 38"""

$36.99

$

In Stock, only 2 left!

0

5

RedMax 582688701

THROTTLE, KAWASAKI 33"

Note: "Throttle 33"""

$

$

Not available

6

RedMax 532199855

SCREW T-30 1/4-20 X
(Superseded to 583254901)

Note: "Screw1/4-20 x 1/2"""

$4.99

$

Usually ships in 3-10 days

0

7

RedMax 539132624

KNOB - SHIFT

Note: "Knob, Shift"

$7.99

$

In Stock, Qty 7

0

8

RedMax 589887201

SWITCH.PTO.10AMP.SEALED.6P.SPS

Note: "Switch, PTO"

$60.99

$

In Stock, only 1 left!

0

9

RedMax 574455401

SWITCH, IGNITION, INDAK

Note: "Switch, Ignition"

$34.99

$

Usually ships in 3-10 days

0

10

RedMax 539103178

CAP IGNITION NUT
(Superseded to 539115739)

Note: Nut Cap Cover

$4.99

$

Usually ships in 3-10 days

0

11

RedMax 574455501

KEY, IGNITION

Note: "Key, Ignition"

$6.99

$

Usually ships in 3-10 days

0

12

RedMax 594919101

GUAGE.SRVCMNDR.HRMTR.

Note: Hour Meter

$24.99

$

In Stock, Qty 6

0

13

RedMax 592872702

LED.SMALL.FUEL.LEVEL.V500

Note: Fuel Gauge LED

$26.99

$

Usually ships in 3-10 days

0

14

RedMax 599372301

Screws

Note: Screw 1/4-20 T30

$2.49

$

Usually ships in 3-10 days

0

15

RedMax 582478602

NUT FLG, NYLOCK, 1/4-20 GR G C

Note: Nut 1/4-20 UNC

$2.49

$

In Stock, Qty 20+

0
