CV 48 (970465201) - RedMax 48" Stand-On Mower, Kawasaki FX (2020-02) WHEELS & TIRES Parts Diagram

48" Stand-On Mower, Kawasaki FX

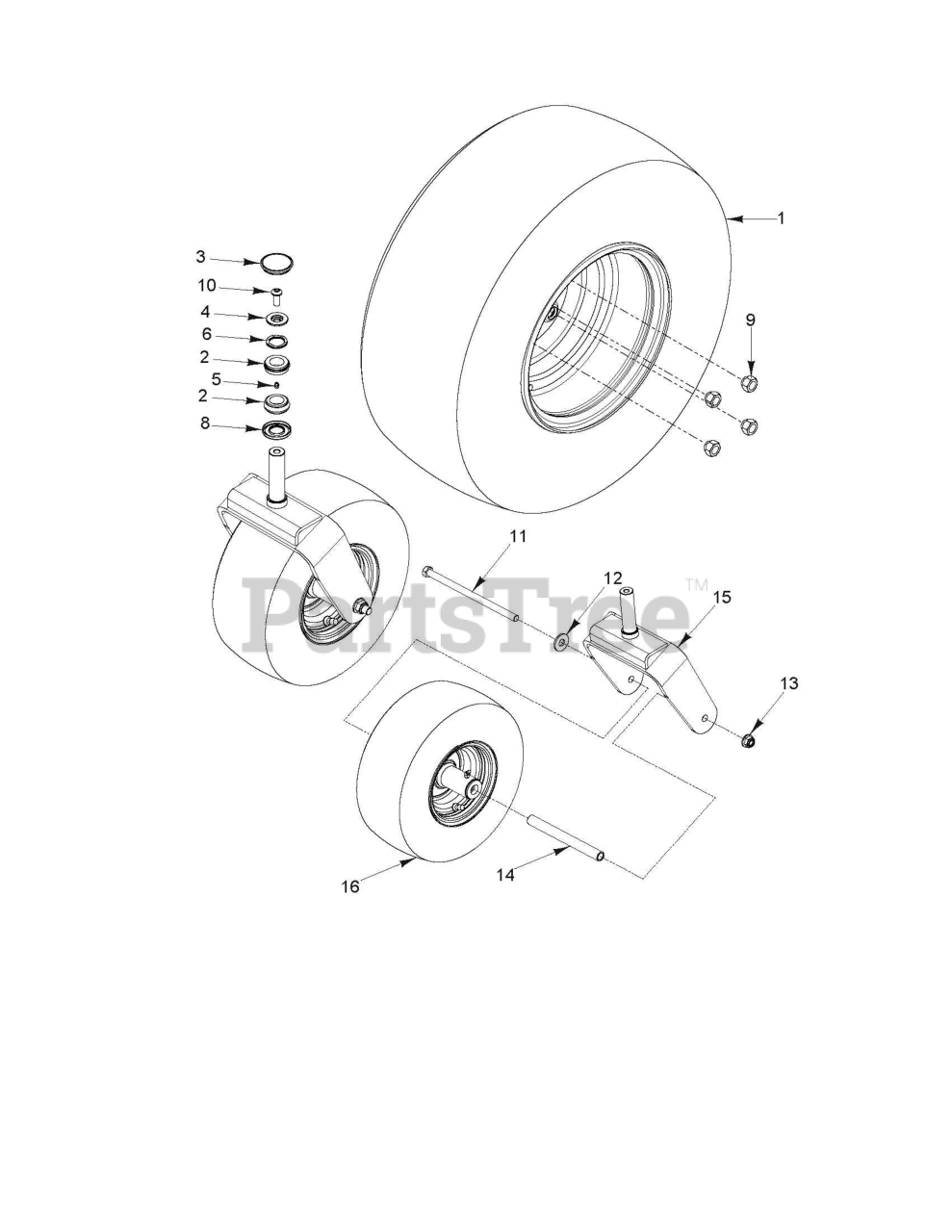

WHEELS & TIRES Parts Diagram

  • Title

1

RedMax 590704802

Wheels

Note: "Assembly, Wheel 20 x 10-10 Rear"

$218.99

$

Usually ships in 3-10 days

0

2

RedMax 539102543

TAPERED ROLLER BRG

Note: Bearing

$40.99

$

Usually ships in 3-10 days

0

3

RedMax 590700003

Caps

Note: "Cap, Dust"

$7.49

$

In Stock, only 3 left!

0

4

RedMax 591425101

CAP SPRING. MZ/MZT CASTER RAW

Note: "Cap, Spring"

$5.99

$

Usually ships in 3-10 days

0

5

RedMax 596623501

Zerks

Note: Zerk

$3.99

$

In Stock, only 3 left!

0

6

RedMax 590681601

SPRING NESTED WAVE MZ/MZT

Note: "Spring, Wave"

$6.49

$

In Stock, only 2 left!

0

8

RedMax 539102851

SEAL

Note: "Sealing, Seal"

$7.99

$

In Stock, only 4 left!

0

9

RedMax 587653903

Nuts

Note: "Nut 1/2-20 x 3/4"""

$4.99

$

In Stock, Qty 20+

0

10

RedMax 591457301

SCREW HEXALOBULAR SOCKET BUTTO

Note: "Screw, Torx 7/16-14 UNC x 1"

$4.99

$

In Stock, only 4 left!

0

11

RedMax 594946501

GSPW Screws

Note: "Bolt 1/2-13 x 9-1/2"" Gr. 5"

$6.99

$

In Stock, Qty 20+

0

12

RedMax 595316401

Washers

Note: Washer

$3.99

$

In Stock, Qty 20+

0

13

RedMax 521991102

NUT 1/2-13 HEX FLANGE NYLOK CL

Note: Nut 1/2-13 Hex Flange Nyloc

$4.99

$

In Stock, Qty 7

0

14

RedMax 575334901

SPACER, PIVOT

Note: "Spacer, Hub"

$24.99

$

In Stock, Qty 8

0

15

RedMax 590674607

Forks

Note: "Fork, Caster"

$45.99

$

Usually ships in 3-10 days

0

16

RedMax 581199503

ASM.TIRE.BLACK.MS.428

Note: Wheel Assy.

$145.99

$

Usually ships in 3-10 days

0
