CV 48 (970465201) - RedMax 48" Stand-On Mower, Kawasaki FX (2020-02) STEERING Parts Diagram

48" Stand-On Mower, Kawasaki FX

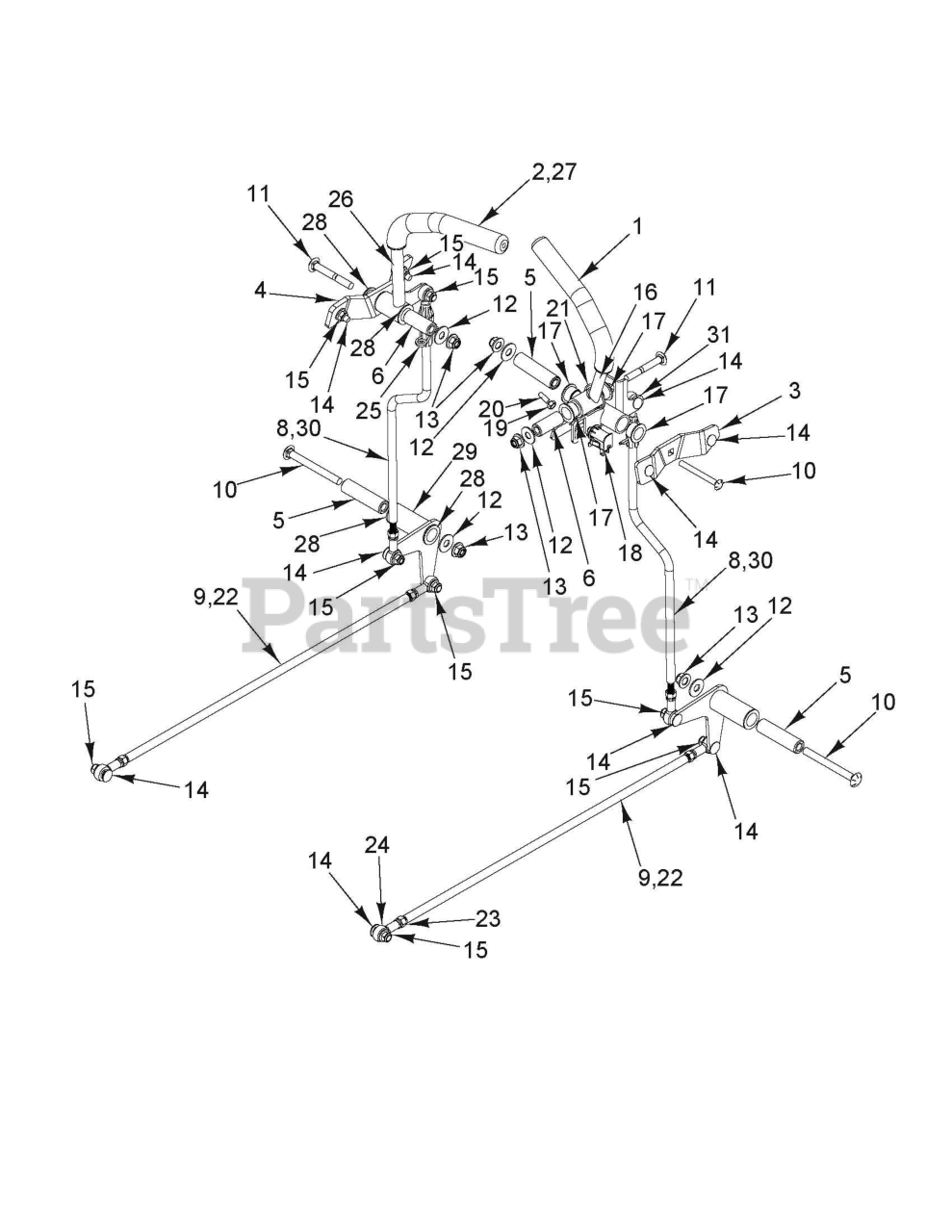

STEERING Parts Diagram

  • Title

1

RedMax 596531801

KIT.SVC.ASM.LEVER.CNTRL.LH

Note: "Controls System Lever Assembly, LH"

$74.99

$

Usually ships in 3-10 days

0

2

RedMax 596517701

KIT.SVC.ASM.LEVER.RH

Note: "Controls System Lever Assembly, RH"

$37.99

$

Usually ships in 3-10 days

0

3

RedMax 590600102

BRACKET LH PIVOT; STAND ON E-D

Note: "Bracket, LH Pivot"

$26.99

$

Usually ships in 3-10 days

0

4

RedMax 590600002

BRACKET RH PIVOT; STAND ON E-D

Note: "Bracket, RH Pivot"

$37.99

$

Usually ships in 3-10 days

0

5

RedMax 582687301

SPACER BELLCRANK PIVOT LONG

Note: "Spacer, Bellcrank, Long"

$10.99

$

Usually ships in 3-10 days

0

6

RedMax 582687303

Pivots

Note: "Spacer, Bellcrank, Short"

$11.99

$

Usually ships in 3-10 days

0

8

RedMax 596931601

Controls

$45.99

$

Usually ships in 3-10 days

0

9

RedMax 582687901

LINKAGE CONTROL LINKAGE ASSY;

Note: "Linkage, Control Assy."

$

$

Not available

10

RedMax 596584303

Screws

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

11

RedMax 872110622

BOLT

Note: Bolt

$4.99

$

In Stock, Qty 9

0

12

RedMax 596140201

Washers

Note: Washer

$3.99

$

In Stock, only 1 left!

0

13

RedMax 521996502

GSPW Nuts

Note: Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

14

RedMax 596435701

Bolts

Note: Bolt

$3.99

$

In Stock, Qty 6

0

15

RedMax 594944401

NUT HEXAGON FLANGE 5/16-18 ST

Note: Nut 5/16-18

$6.99

$

In Stock, Qty 20+

0

16

RedMax 590623502

LEVER ASSY WELDMENT; OPS E-DIP

Note: Lever Assembly

$27.99

$

Usually ships in 3-10 days

0

17

RedMax 539131518

BEARING, FLANGE

Note: "Bearing, Flange"

$11.99

$

In Stock, Qty 5

0

18

RedMax 532421062

SWITCH.SNAPMOUNT.NC

Note: Switch

$14.99

$

In Stock, only 2 left!

0

19

RedMax 873220400

NUT
(Superseded to 532050675)

Note: Nut 1/4-20 Hex

$6.49

$

In Stock, only 1 left!

0

20

RedMax 592727201

SCREW ASME B18.3, HEXAGON SOCK

Note: Screw 1/4-20 x 3/4

$3.99

$

Usually ships in 3-10 days

0

21

RedMax 590624501

SPRING TORSION; OPS

Note: Spring

$5.99

$

Usually ships in 3-10 days

0

22

RedMax 582687902

Links

Note: "Rod, Control"

$45.99

$

Usually ships in 3-10 days

0

23

RedMax 596040901

Hardware

Note: "Nut, Jam 5/16-24"

$3.99

$

In Stock, only 4 left!

0

24

RedMax 579764601

JOINT.HEIM.FEML.5/16.RH.THREAD

Note: "Rod End, Female"

$9.49

$

Usually ships in 3-10 days

0

25

RedMax 582551901

CLIP.RETAINER.CONTROLS

Note: Clip

$6.99

$

In Stock, only 1 left!

0

26

RedMax 582686702

HANDLE ASSY HANDLE WELDMENT, R

Note: Handle Assy.

$27.99

$

Usually ships in 3-10 days

0

27

RedMax 590623901

GRIP 1/2 DIAM; .215 THICK; 8.5

Note: Grip

$7.49

$

Usually ships in 3-10 days

0

28

RedMax 539131518

BEARING, FLANGE

Note: "Bearing, Flange"

$11.99

$

In Stock, Qty 5

0

29

RedMax 582687502

BELLCRANK WELDMENT; STAND ON C

Note: Bellcrank Weldment

$20.99

$

Usually ships in 3-10 days

0

30

RedMax 596931601

Controls

$45.99

$

Usually ships in 3-10 days

0

31

RedMax 590624202

BELLCRANK WELDMENT; CONTROLS;

Note: Bellcrank Weldment

$31.99

$

Usually ships in 3-10 days

0
