CV 48 (970465201) - RedMax 48" Stand-On Mower, Kawasaki FX (2020-02) BRAKE Parts Diagram

48" Stand-On Mower, Kawasaki FX

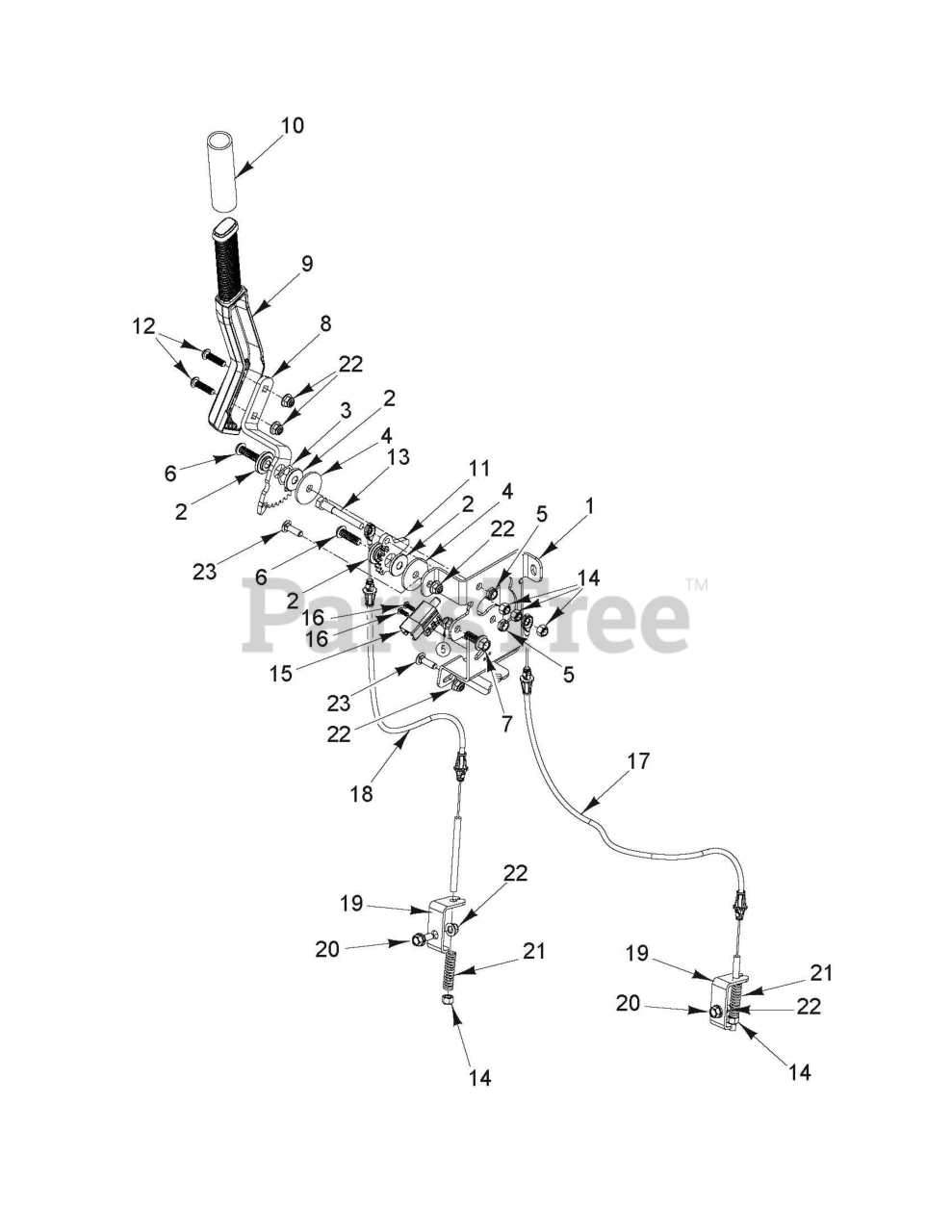

BRAKE Parts Diagram

  • Title

1

RedMax 590706002

BRACKET PARKING BRAKE;STAND ON

Note: "Bracket, Parking Brake"

$60.99

$

Usually ships in 3-10 days

0

2

RedMax 539132161

BUSHING, BRAKE

Note: "Bushing, Brake"

$6.49

$

In Stock, only 2 left!

0

3

RedMax 539133007

WASHER, .825 X 1.087, WAVE

Note: Washer

$4.99

$

In Stock, only 3 left!

0

4

RedMax 596917301

Washers

Note: "Washer 3/8"""

$5.99

$

In Stock, Qty 6

0

5

RedMax 596230801

Nuts

Note: Nut 3/8-16

$3.99

$

In Stock, Qty 15

0

6

RedMax 590862601

SCREW HEXALOBULAR SOCKET BUTTO

Note: "Screw 3/8-16 x 1.25"""

$8.99

$

Usually ships in 3-10 days

0

7

RedMax 525612802

Screws

Note: "HHFS 3/8-16 x 1"" Gr. 5"

$3.99

$

In Stock, Qty 5

0

8

RedMax 590204301

GEAR INPUT;PARKING BRAKE;STAND

Note: "Gear, Input, Parking Brake"

$30.99

$

Usually ships in 3-10 days

0

9

RedMax 588670401

LEVER PARKING BRAKE; STAND ON

Note: "Lever, Parking Brake"

$68.99

$

Usually ships in 3-10 days

0

10

RedMax 592619301

GRIP PARKING BRAKE; STAND ON

Note: "Grip, Parking Brake"

$11.99

$

Usually ships in 3-10 days

0

11

RedMax 590204501

GEAR OUTPUT;PARKING BRAKE;STAN

Note: "Gear, Output, Parking Brake"

$10.99

$

Usually ships in 3-10 days

0

12

RedMax 578296403

SCREW.BUTTHEAD.5/16-18X1-1.25

Note: "Screw 5/16-18 x 1-1/4"""

$3.49

$

Usually ships in 3-10 days

0

13

RedMax 590790801

BOLT HEXAGON SHOULDER 5/16-18

Note: "Bolt 5/16-18 x 2.75"" Gr. 5"

$48.99

$

Usually ships in 3-10 days

0

14

RedMax 596583702

Nuts

Note: Nut 5/16

$3.99

$

In Stock, Qty 20+

0

15

RedMax 532109553

SWITCH INTERLOCKT
(Superseded to 539101080)

Note: "Switch, Interlock, Clutch"

$17.99

$

Usually ships in 3-10 days

0

16

RedMax 586936001

SCREW.BUTTONHD.10-24X1/2.(2 2)

Note: "Screw 10-14 x 1/2"""

$4.99

$

In Stock, only 1 left!

0

17

RedMax 590586601

CABLE PARKING BRAKE;STAND ON;L

Note: "Cable, Parking Brake LH"

$47.99

$

In Stock, only 1 left!

0

18

RedMax 590586701

CABLE PARKING BRAKE;STAND ON;R

Note: "Cable, Parking Brake RH"

$44.99

$

Usually ships in 3-10 days

0

19

RedMax 590721102

Brackets

Note: "Bracket, Brake Arm"

$10.99

$

Usually ships in 3-10 days

0

20

RedMax 596240701

Bolts

Note: "Bolt, Shoulder"

$4.99

$

In Stock, only 4 left!

0

21

RedMax 590878201

SPRING PARKING BRAKE; STAND ON

Note: "Spring, Parking Brake"

$3.99

$

Usually ships in 3-10 days

0

22

RedMax 594944401

NUT HEXAGON FLANGE 5/16-18 ST

Note: Nut 5/16-18

$6.99

$

In Stock, Qty 20+

0

23

RedMax 596435701

Bolts

Note: "Screw 5/16-18 UNC x 1"""

$3.99

$

In Stock, Qty 6
