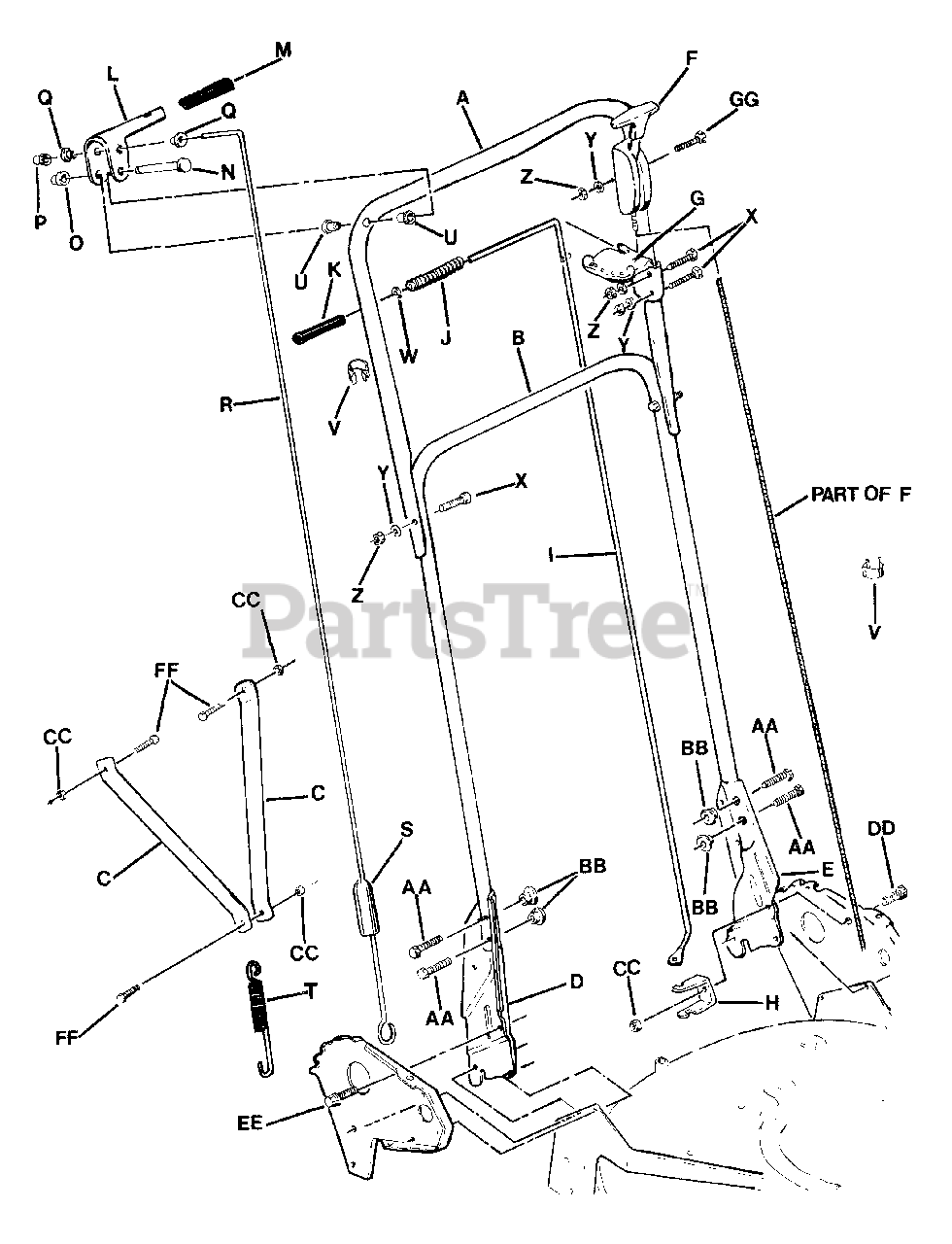

CV 212 (84070) - Snapper 21" Walk-Behind Mower, 5hp Handles, Controls - Commercial Parts Diagram

21" Walk-Behind Mower, 5hp

Handles, Controls - Commercial Parts Diagram

  • Title

A

Snapper 7033444

HANDLE, Upper

Note: Was 39600

$

$

Not available

B

Snapper 7039602

HANDLE, Middle

$

$

Not available

C

Snapper 7032833

STRAP, Handle
(Superseded to 7032833YP)

Note: Was 37729

$33.99

$

Usually ships in 2-12 days

0

D

Snapper 7039592

MOUNT, Right Hand Handle
(Superseded to 7039592YP)

$18.99

$

Usually ships in 2-12 days

0

E

Snapper 7039591

MOUNT, Left Hand Handle
(Superseded to 7039591YP)

$18.99

$

Usually ships in 2-12 days

0

F

Snapper 7018188

CONTROL, Throttle (Briggs)

$

$

Not available

Snapper 7018201

CONTROL, Throttle (Tecumseh)

$

$

Not available

G

Snapper 37727

SECTOR, Speed Control

$

$

Currently unavailable

H

Snapper 7032830

ANCHOR, Speed Control
(Superseded to 7032830YP)

Note: Was 31755

$26.99

$

In Stock, only 1 left!

0

I

Snapper 7012317

LEVER, Speed Control

$

$

Not available

J

Snapper 7012093

SPRING, Speed Control Lever
(Superseded to 7012093YP)

$4.49

$

In Stock, only 4 left!

0

K

Snapper 7023801

GRIP, Speed Control Lever
(Superseded to 7023801YP)

Note: Was 11879

$4.49

$

In Stock, Qty 6

0

L

Snapper 7032826

HANDLE, Clutch
(Superseded to 7074473BMYP)

Note: Was 31881

$16.99

$

In Stock, Qty 20+

0

M

Snapper 7014307

GRIP, Clutch Handle
(Superseded to 7014307YP)

Note: Was 11982

$4.49

$

In Stock, Qty 20+

0

N

Snapper 7023792

PIN, Clutch handle
(Superseded to 704031)

Note: Was 11886

$3.99

$

In Stock, Qty 20+

0

O

Snapper 7091020

NUT, 1/4" Push
(Superseded to 7091020YP)

Note: Was 90489

$4.49

$

In Stock, Qty 20+

0

P

Snapper 7012134

NUT, 1/8" Push

$3.49

$

Usually ships in 2-12 days

0

Q

Snapper 7012135

BUSHING, Pull Rod (Nylon)

$4.49

$

In Stock, only 1 left!

0

R

Snapper 12326

ROD, Clutch Pull

$

$

Currently unavailable

S

Snapper 7012121

COVER, Vinyl
(Superseded to 7012121YP)

$

$

Not available

T

Snapper 7012122

SPRING, Clutch
(Superseded to 7012122YP)

$9.49

$

In Stock, Qty 20+

0

U

Snapper 7014343

BUSHING, Clutch Handle Pin
(Superseded to 7014343YP)

Note: Was 12070

$3.99

$

In Stock, Qty 20+

0

V

Snapper 7010098

CLIP

$

$

Currently unavailable

W

Snapper 7090188

WASHER, 5/16" SAE Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

X

Snapper 7090552

SCREW, 1/4-28 x 1-3/8" Hex Head Cap, Grade 5
(Superseded to 703828)

$3.99

$

Usually ships in 2-12 days

0

Y

Snapper 7090053

WASHER, 1/4" Internal/External Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 6

0

Z

Snapper 7090095

NUT, 1/4-28 Hex
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

AA

Snapper 7027230

SCREW, 1/4-20 x 1" Hex Head Cap, Grade 5
(Superseded to 703820)

Note: Was 90548

$3.99

$

In Stock, only 4 left!

0

BB

Snapper 7012322

NUT, 1/4-20 Curved Head

$

$

Not available

CC

Snapper 7090222

NUT, 5/16-24 Hex Center Lock
(Superseded to 703896)

$3.49

$

In Stock, Qty 20+

0

DD

Snapper 7090238

SCREW, 5/16-24 x 1" Hex Head Cap, Grade 5
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

EE

Snapper 7090240

SCREW, 5/16-24 x 1-1/4" Hex Head Cap, Grade 2
(Superseded to 703568)

$4.99

$

Usually ships in 2-12 days

0

FF

Snapper 7090233

SCREW, 5/16-24 x 3/4" Hex Head Cap, Grade 5
(Superseded to 703336)

$4.49

$

In Stock, Qty 5

0

GG

Snapper 7090111

SCREW, 5/16-28 x 1-3/4" Hex Head Cap, Grade 5

$2.99

$

In Stock, only 3 left!

0
