Cutter Bar - BCS America Sickle Bar Mower Attachment (1995 - 2012) Oil Bath Control w/ Old Style Drive Pin/New Bar Control Bushing (SN: 10000 - 382703) Parts Diagram

3-Dog PTO Cutter Bar Attachment

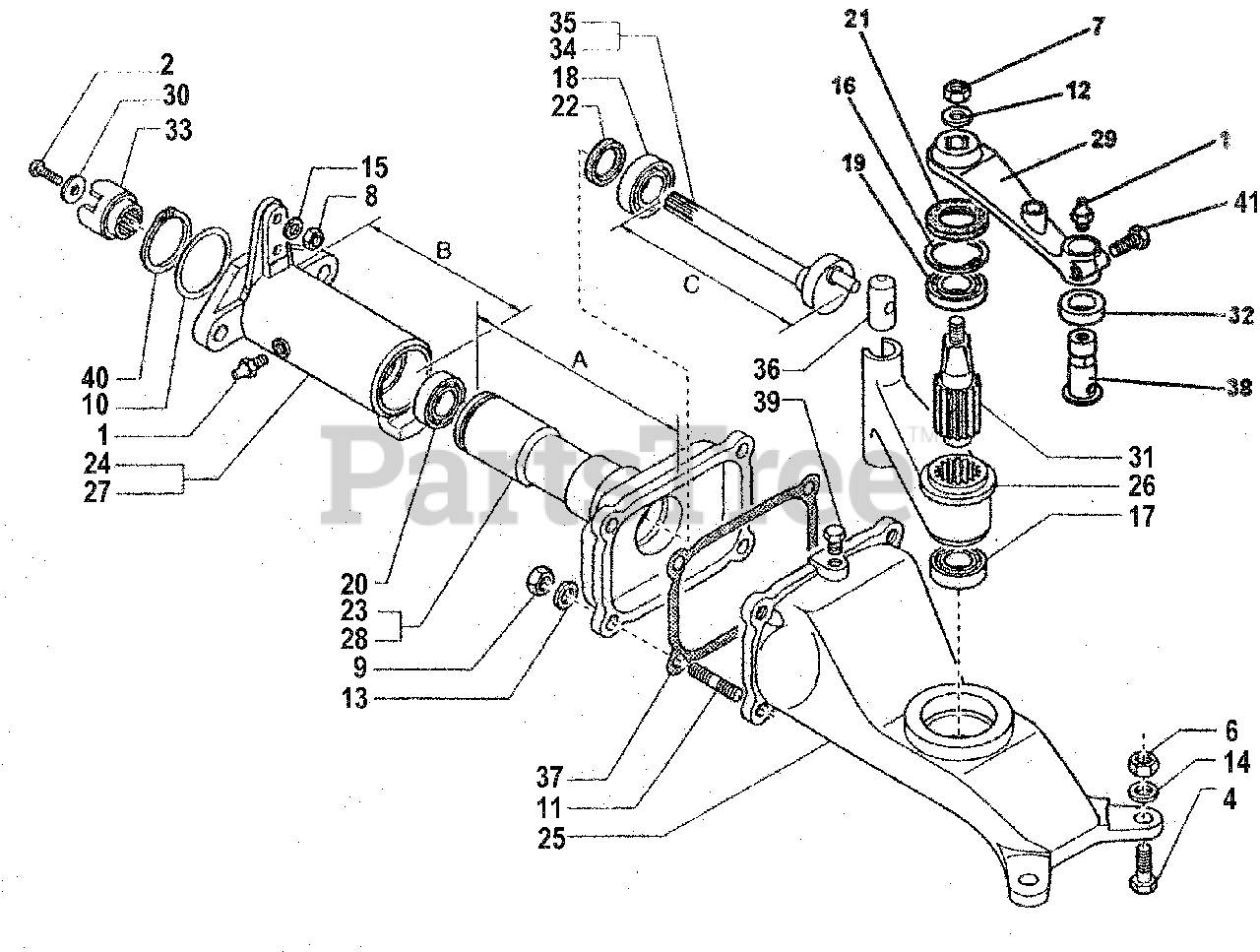

Oil Bath Control w/ Old Style Drive Pin/New Bar Control Bushing (SN: 10000 - 382703) Parts Diagram

  • Title

1

BCS America 300.00001

LUBRICATOR, M10

$

$

Not available

2

BCS America 311.12090

SCREW, M6X20

$0.99

$

In Stock, only 4 left!

0

3

BCS America 311.12282

SCREW M12X65

$2.49

$

Usually ships in 5-8 days

0

4

BCS America 311.12329

SCREW M14X40

$1.99

$

Usually ships in 5-8 days

0

5

BCS America 314.21101

SUPER WASHER, M10

$1.99

$

In Stock, only 3 left!

0

6

BCS America 312.11140

NUT, M14

$1.49

$

Usually ships in 5-8 days

0

7

BCS America 312.31184

NUT, M20

$4.49

$

In Stock, only 1 left!

0

8

BCS America 312.41080

NUT, SELF LOCKING, M8

$0.99

$

In Stock, Qty 11

0

9

BCS America 312.41105

NUT, SELF LOCKING, M10

$1.99

$

Usually ships in 5-8 days

0

10

BCS America 563.58964

SPACER RING

$11.99

$

Usually ships in 5-8 days

0

11

BCS America 313.12114

STUD, M10X50X22X14

$10.99

$

Usually ships in 5-8 days

0

12

BCS America 314.21060

WASHER

$10.99

$

In Stock, only 1 left!

0

13

BCS America 314.21101

SUPER WASHER, M10

$1.99

$

In Stock, only 3 left!

0

14

BCS America 314.21251

SUPER WASHER, M14

$3.99

$

In Stock, only 3 left!

0

15

BCS America 314.23084

WASHER, LOCK, M8.4

$0.99

$

In Stock, Qty 10

0

16

BCS America 351.11062

CIRCLIP, INTERNAL

$2.49

$

Usually ships in 5-8 days

0

17

BCS America 371.11152

BEARING, M15X42X13

$17.99

$

Usually ships in 5-8 days

0

18

BCS America 371.11251

BEARING, M25X62X17

$

$

Currently unavailable

19

BCS America 371.11349

BEARING, 35X62X14

$28.99

$

Usually ships in 5-8 days

0

20

BCS America 371.12203

BEARING, M20X42X12

$16.99

$

Usually ships in 5-8 days

0

21

BCS America 382.02499

OIL SEAL, 35X62X7

$18.99

$

Usually ships in 5-8 days

0

22

BCS America 382.12502

OIL SEAL, 25X52X7

$9.99

$

Usually ships in 5-8 days

0

23

BCS America 513.58960

BAR CONTROL SUPPORT, 10 1/2"

$

$

Currently unavailable

24

BCS America 513.58961

BAR CONTROL BUSHING, 7 11/16"

$

$

Not available

25

BCS America 513.58949

BLADE CONTROL BOX

$

$

Currently unavailable

26

BCS America 513.46701

CONTROL CRANK

$349.99

$

Usually ships in 5-8 days

0

27

BCS America 513.58963

BAR CONTROL BUSHING, 4 1/2" LON

$219.99

$

Usually ships in 5-8 days

0

28

BCS America 513.58962

BAR CONTROL SUPPORT,7 3/8" LON

$

$

Currently unavailable

29

BCS America 523.46715

CONNECTION ROD

$

$

Currently unavailable

30

BCS America 561.42291

3-DOG COUPLING

$1.99

$

Usually ships in 5-8 days

0

31

BCS America 564.46702

SHAFT, CONNECTION ROD

$

$

Currently unavailable

32

BCS America 564.46718

BLADE BUSHING D. 32

$46.99

$

In Stock, only 1 left!

0

33

BCS America 564.58941

PTO COUPLING

$66.99

$

In Stock, only 1 left!

0

34

BCS America 564.58957

CRANK CAM, 7" LONG

$279.99

$

Usually ships in 5-8 days

0

35

BCS America 564.58958

CRANK CAM, 10 3/16" LONG

$315.99

$

Usually ships in 5-8 days

0

36

BCS America 572.46654

Barrell

$

$

Currently unavailable

37

BCS America 580.46661

Box Gasket

$2.99

$

Usually ships in 5-8 days

0

38

BCS America 590.46719

Blade Pin

$108.99

$

Usually ships in 5-8 days

0

39

BCS America 590.51045

Breather Cap

$18.99

$

Usually ships in 5-8 days

0

40

BCS America 351.21060

Snap Ring Internal

$3.49

$

Usually ships in 5-8 days

0

41

BCS America 311.12904

Bolt M12X1.25X30

$1.99

$

Usually ships in 5-8 days

0
