Cutter Bar - BCS America Sickle Bar Mower Attachment (1995 - 2012) Cutter Bar Hood (SN: 10000 & Above) Parts Diagram

3-Dog PTO Cutter Bar Attachment

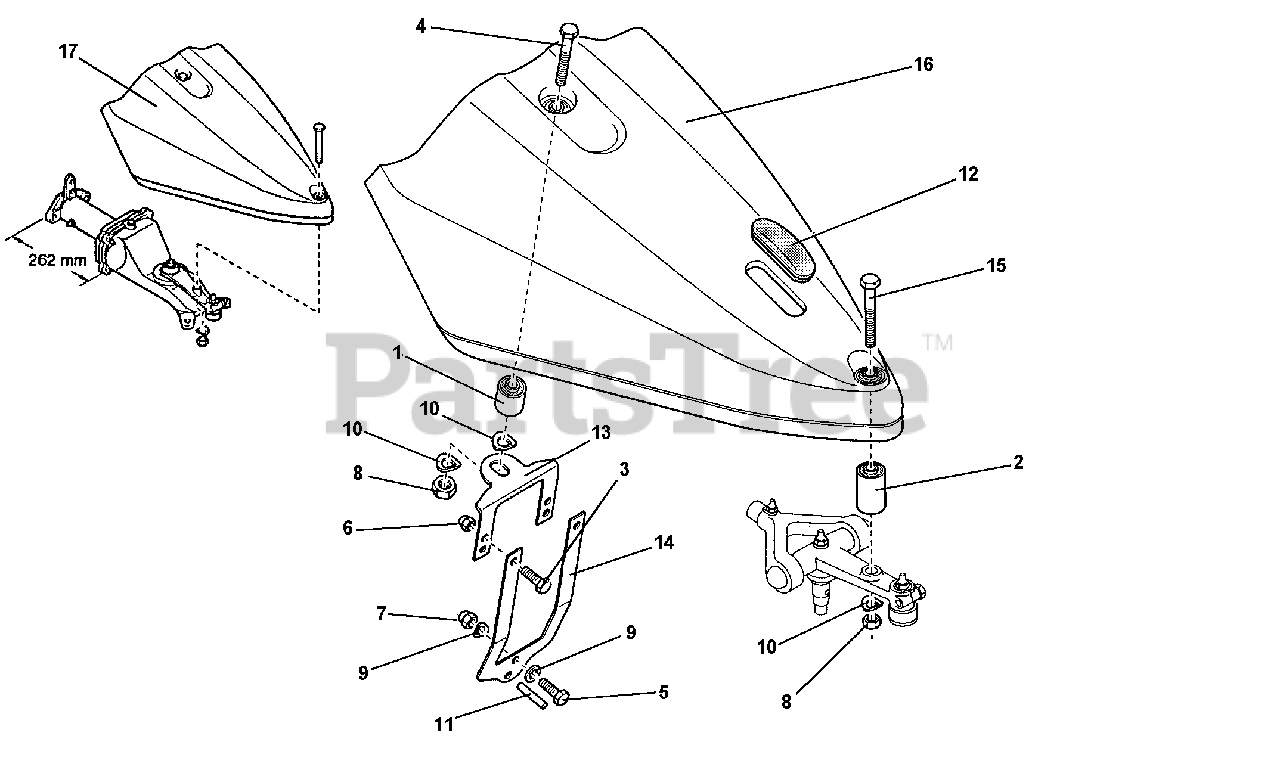

Cutter Bar Hood (SN: 10000 & Above) Parts Diagram

  • Title

1

BCS America 30010140

SILENTBLOCK

$

$

Not available

2

BCS America 300.10141

SILENTBLOCK

$

$

Currently unavailable

3

BCS America 311.11091

SCREW, M6 X 14

$1.49

$

In Stock, only 3 left!

0

4

BCS America 311.11331

SCREW, M14 X 50

$6.99

$

Usually ships in 5-8 days

0

5

BCS America 311.12152

SCREW, M8 X 30

$1.49

$

In Stock, only 4 left!

0

6

BCS America 31241060

NUT, SELF LOCKING M6

$0.99

$

In Stock, only 2 left!

0

7

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 11

0

8

BCS America 31241140

NUT, SELF LOCKING M14

$1.99

$

Usually ships in 5-8 days

0

9

BCS America 314.23084

WASHER, LOCK M8.4

$0.99

$

In Stock, Qty 10

0

10

BCS America 31423150

WASHER, LOCK M15

$1.99

$

Usually ships in 5-8 days

0

11

BCS America 342.11087

PIN, LOCKING M8 X 20

$1.49

$

Usually ships in 5-8 days

0

12

BCS America 551.43495

OVAL PLUG FOR PROTECTION

$8.99

$

Usually ships in 5-8 days

0

13

BCS America 563.59179

UPPER COUPLING

$32.99

$

Usually ships in 5-8 days

0

14

BCS America 56359180

LOWER COUPLING

$34.99

$

Usually ships in 5-8 days

0

15

BCS America 563.435

SCREW M14 X 90

$

$

Currently unavailable

16

BCS America 592.59178

GUARD

$

$

Currently unavailable

17

BCS America 592.59182

GUARD FOR OIL BATH

$

$

Currently unavailable
