Cutter Bar - BCS America Sickle Bar Mower Attachment (1995 - 2012) Cutter Bar Control w/ New Style Drive Pin Parts Diagram

3-Dog PTO Cutter Bar Attachment

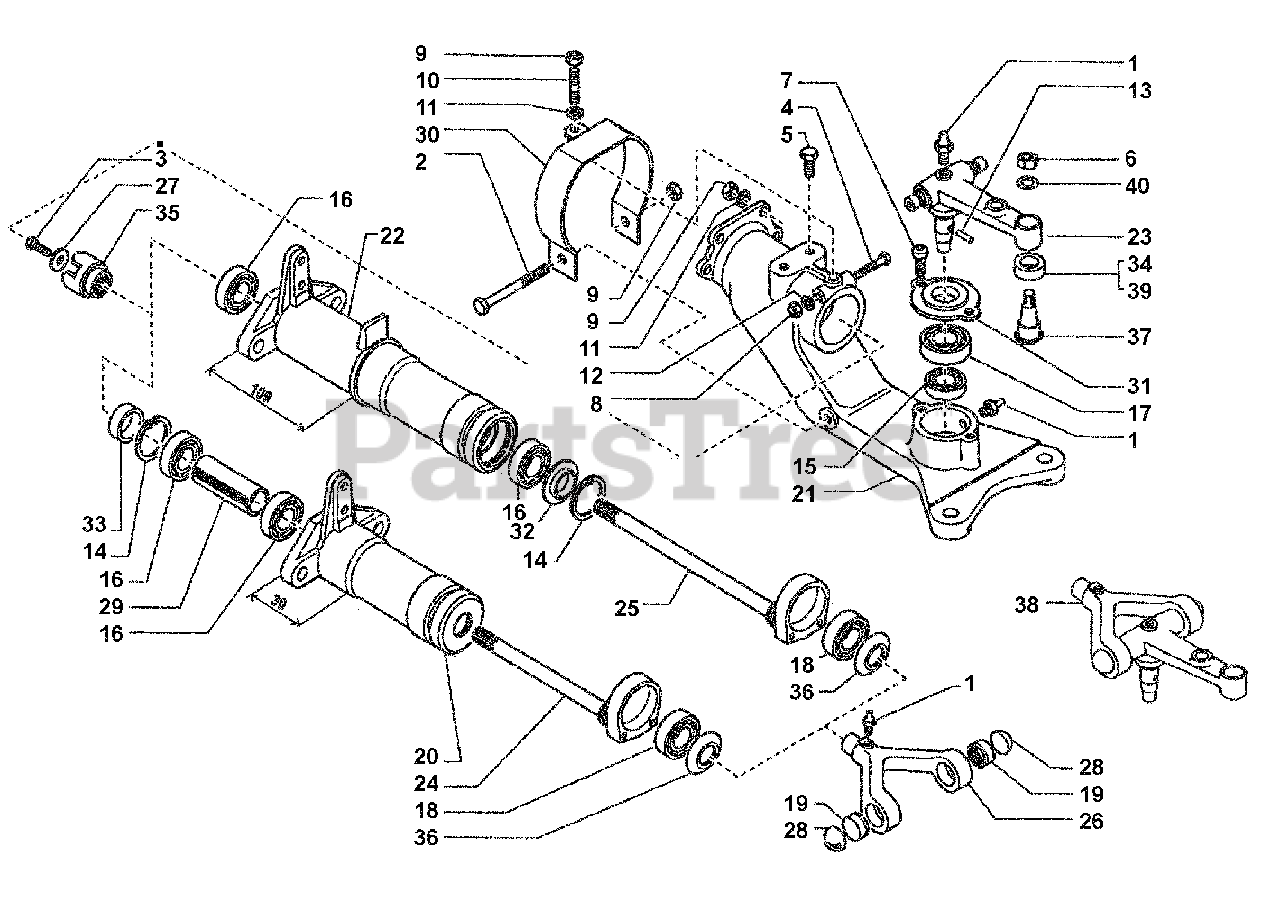

Cutter Bar Control w/ New Style Drive Pin Parts Diagram

  • Title

1

BCS America 300.00001

GREASE ZERK M10

$

$

Not available

2

BCS America 311.11165

SCREW, M8X100

$1.99

$

Usually ships in 5-8 days

0

3

BCS America 311.12093

SCREW, M6X20

$0.99

$

In Stock, only 1 left!

0

4

BCS America 311.12097

SCREW, M6X70

$1.99

$

Usually ships in 5-8 days

0

5

BCS America 311.12149

SCREW, M8X12

$1.49

$

Usually ships in 5-8 days

0

6

BCS America 312.41105

LOCK NUT DEFORMED

$1.99

$

Usually ships in 5-8 days

0

7

BCS America 311.21006

SCREW M6X16

$1.99

$

Usually ships in 5-8 days

0

8

BCS America 312.41061

NUT, SELF LOCKING, M6

$0.99

$

Usually ships in 5-8 days

0

9

BCS America 312.41080

NUT, SELF LOCKING, M8

$0.99

$

Usually ships in 5-8 days

0

10

BCS America 313.12076

STUD, M8X26

$3.99

$

Usually ships in 5-8 days

0

11

BCS America 314.11084

WASHER, FLAT, M8.4

$0.99

$

In Stock, only 4 left!

0

12

BCS America 314.24064

WASHER, LOCK, M6.4

$0.99

$

Usually ships in 5-8 days

0

13

BCS America 342.11041

PIN, LOCKING, M4X35

$1.49

$

In Stock, only 4 left!

0

14

BCS America 351.11047

CIRCLIP, INTERNAL

$1.99

$

In Stock, Qty 5

0

15

BCS America 371.11150

BEARING, M15X35X11

$

$

Currently unavailable

16

BCS America 371.12200

BEARING M20X47X14

$

$

Currently unavailable

17

BCS America 371.12253

BEARING, M25X52X15

$

$

Currently unavailable

18

BCS America 371.13201

BEARING, M20X52X15

$19.99

$

Usually ships in 5-8 days

0

19

BCS America 373.32001

BUSHING PIT

$47.99

$

In Stock, only 2 left!

0

20

BCS America 512.43501

BUSHING WITH FLANGE

$

$

Not available

21

BCS America 513.58948

BAR SUPPORT

$590.99

$

Usually ships in 5-8 days

0

22

BCS America 513.58950

SHAFT HOUSING

$412.99

$

Usually ships in 5-8 days

0

23

BCS America 524.58966

BLADE CRANK

$612.99

$

Usually ships in 5-8 days

0

24

BCS America 524.58955

ECCENTRIC SHAFT

$398.99

$

Usually ships in 5-8 days

0

25

BCS America 524.58956

LONG ECCENTRIC SHAFT

$451.99

$

Usually ships in 5-8 days

0

26

BCS America 525.48510

FORK

$176.99

$

Usually ships in 5-8 days

0

27

BCS America 561.42291

WASHER

$1.99

$

Usually ships in 5-8 days

0

28

BCS America 561.43497

BOTTOM

$2.99

$

In Stock, only 2 left!

0

29

BCS America 561.43506

SPACER

$33.99

$

Usually ships in 5-8 days

0

30

BCS America 561.43507

ECCENTRIC PROTECTION

$34.99

$

Usually ships in 5-8 days

0

31

BCS America 561.43516

COVER, BEARING

$7.99

$

In Stock, only 1 left!

0

32

BCS America 561.49389

GUARD END

$5.99

$

Usually ships in 5-8 days

0

33

BCS America 561.58954

SPACER

$3.99

$

Usually ships in 5-8 days

0

34

BCS America 564.46718

BLADE PIN BUSHING 32MM

$46.99

$

In Stock, only 1 left!

0

35

BCS America 564.58941

PTO COUPLER

$66.99

$

In Stock, only 1 left!

0

36

BCS America 571.40533

END, LOWER

$10.99

$

In Stock, only 1 left!

0

37

BCS America 564.58967

BLADE PIN

$

$

Currently unavailable

38

590.58965

CRANK WITH FORK

$

$

Not available

39

BCS America 564.46667

BLADE PIN BUSHING 37MM

$34.99

$

Usually ships in 5-8 days

0

40

BCS America 314.21101

WASHER SUPER 37MM

$1.99

$

In Stock, only 3 left!

0
