Cutter Bar - BCS America Sickle Bar Mower Attachment (1994 & Before) Spline Shaft Mulch Bar (SN: 010000 - 024000) Parts Diagram

PTO Cutter Bar Attachment

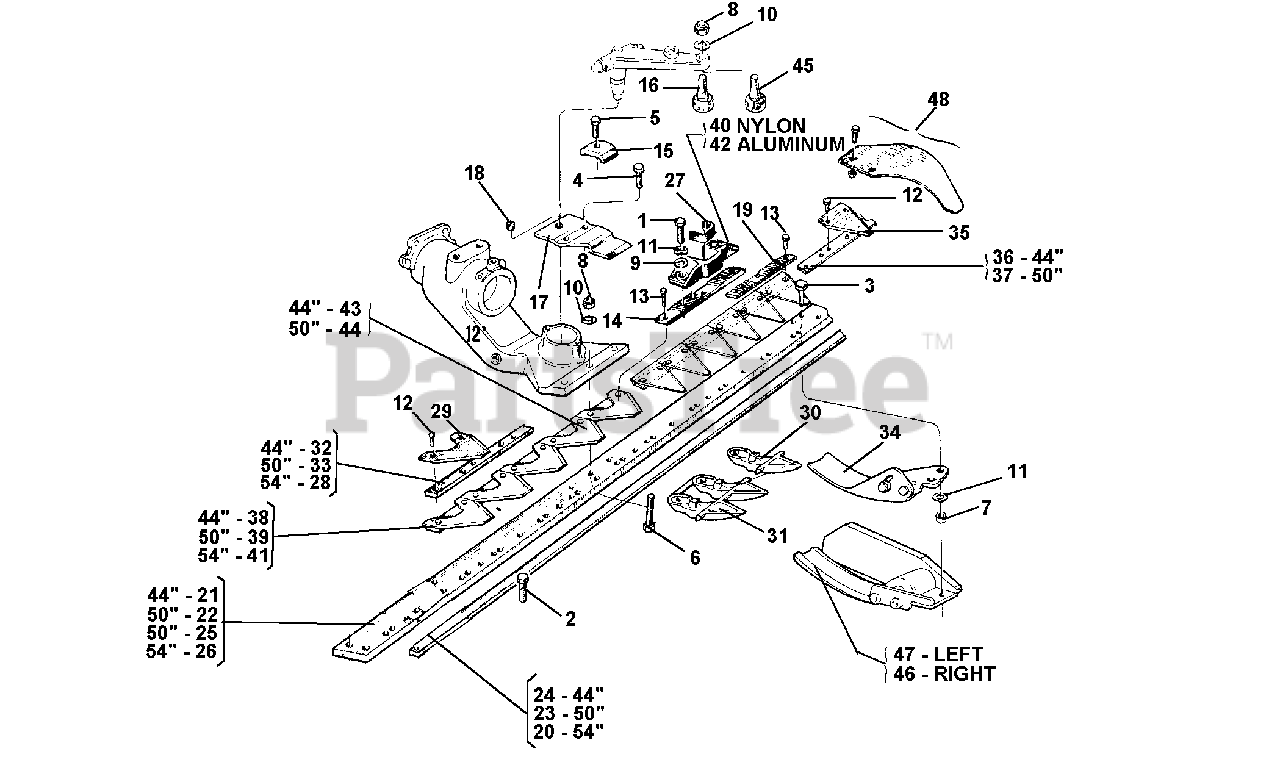

Spline Shaft Mulch Bar (SN: 010000 - 024000) Parts Diagram

  • Title

1

BCS America 311.11151

SCREW M8 X 16

$1.99

$

In Stock, only 4 left!

0

2

BCS America 311.11212

SCREW TE M10 X 25

$

$

Currently unavailable

3

BCS America 311.12151

SCREW M8 X 25

$1.49

$

In Stock, Qty 5

0

4

BCS America 311.12211

SCREW M10 X 30

$1.49

$

Usually ships in 5-8 days

0

5

BCS America 311.12212

SCREW TE M10 X 35 UNI 5739-8G

$1.99

$

In Stock, only 1 left!

0

6

BCS America 311.13097

SCREW

$1.99

$

In Stock, only 3 left!

0

7

BCS America 31211080

NUT M8

$0.99

$

In Stock, only 3 left!

0

8

BCS America 312.41104

NUT

$5.99

$

Usually ships in 5-8 days

0

9

BCS America 314.11084

WASHER, FLAT 8.4

$0.99

$

In Stock, only 4 left!

0

10

BCS America 314.21101

SUPER WASHER 10 DIN 6796

$1.99

$

In Stock, only 3 left!

0

11

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 10

0

12

BCS America 33112530

RIVET 5.3 X 14

$

$

Not available

13

BCS America 331.12531

RIVET TSV 5.3 X 14

$0.99

$

In Stock, Qty 10

0

14

BCS America 521.43541

SUPPORT, BLADE CONNECTION

$

$

Not available

15

BCS America 523.02828

HOLDER, STRIP

$6.49

$

Usually ships in 5-8 days

0

16

BCS America 52448920

BLADE CONTROL PIN

$44.99

$

In Stock, only 1 left!

0

17

BCS America 561.43559

HOLDER, BLADE, MULCHING

$28.99

$

Usually ships in 5-8 days

0

18

BCS America 561.43571

SCREW, HEADLESS M16 X 12

$8.49

$

Usually ships in 5-8 days

0

19

BCS America 561.48908

BLADE PLATE

$29.99

$

Usually ships in 5-8 days

0

20

BCS America 563.02709

19 SECTIONS BLADE GUIDE

$

$

Currently unavailable

21

BCS America 563.43551

BAR, CENTRAL, 1.10

$244.99

$

Usually ships in 5-8 days

0

22

BCS America 563.43552

BAR, CENTRAL, 1.27

$343.99

$

Usually ships in 5-8 days

0

23

BCS America 563.43555

GUIDE, BLADE L 1270

$49.99

$

Usually ships in 5-8 days

0

24

BCS America 563.43574

GUIDE, BLADE, 15 SECTIONS

$40.99

$

Usually ships in 5-8 days

0

25

BCS America 563.48488

HEAVY FRONT BAR 1.27 MT.

$

$

Currently unavailable

26

BCS America 563.48508

FRONT BAR 1.40 MT.

$407.34

$

Usually ships in 5-8 days

0

27

BCS America 563.48539

PLATE

$

$

Currently unavailable

28

BCS America 580.02465

STRIP, FOR 19-SECTION BLADE

$39.99

$

Usually ships in 5-8 days

0

29

BCS America 580.02466

SECTION, SCORED BLADE

$4.49

$

Usually ships in 5-8 days

0

30

BCS America 580.20189

FINGER, SINGLE

$

$

Currently unavailable

31

BCS America 580.20207

TOOTH, DOUBLE MULCHING

$64.99

$

In Stock, Qty 5

0

32

BCS America 580.20707

STRIP, 15 SEC. BLADE

$29.99

$

Usually ships in 5-8 days

0

33

BCS America 580.20708

STRIP, 17 SEC. BLADE

$

$

Currently unavailable

34

BCS America 580.46677

SKID, INTERMEDIATE

$39.99

$

Usually ships in 5-8 days

0

35

BCS America 580.48945

SECTION OF LONG SCORED BLADE

$4.99

$

Usually ships in 5-8 days

0

36

BCS America 580.48947

STRIP WITH 22 SECTIONS

$

$

Currently unavailable

37

BCS America 580.48949

STRIP WITH 25 SECTIONS

$

$

Currently unavailable

38

BCS America 590.43544

BLADE, 15 SECTIONS

$

$

Not available

39

BCS America 590.43553

BLADE, 17 SECTIONS

$68.99

$

Usually ships in 5-8 days

0

40

BCS America 590.48494

NYLON BLADE COUPLING

$

$

Currently unavailable

41

BCS America 590.48503

BLADE 19 SECTIONS

$

$

Not available

42

BCS America 590.48536

BLADE CONNECTION

$

$

Currently unavailable

43

BCS America 590.48946

BLADE WITH 22 NARROW SECTIONS

$150.99

$

Usually ships in 5-8 days

0

44

BCS America 590.48948

BLADE WITH 25 NARROW SECTIONS

$175.99

$

Usually ships in 5-8 days

0

45

BCS America 590.49367

BALL BEARING PIN

$

$

Currently unavailable

46

BCS America 59250660

RIGHT SLEDGE

$170.99

$

Usually ships in 5-8 days

0

47

BCS America 592.50661

LEFT SLEDGE

$175.99

$

Usually ships in 5-8 days

0

48

BCS America 922.4374

CUTTER BAR SIDE PROTECTION

$

$

Currently unavailable
