Cutter Bar - BCS America Sickle Bar Mower Attachment (1994 & Before) Spline Shaft Cutter Bar Control (SN: 92051 & Above) Parts Diagram

PTO Cutter Bar Attachment

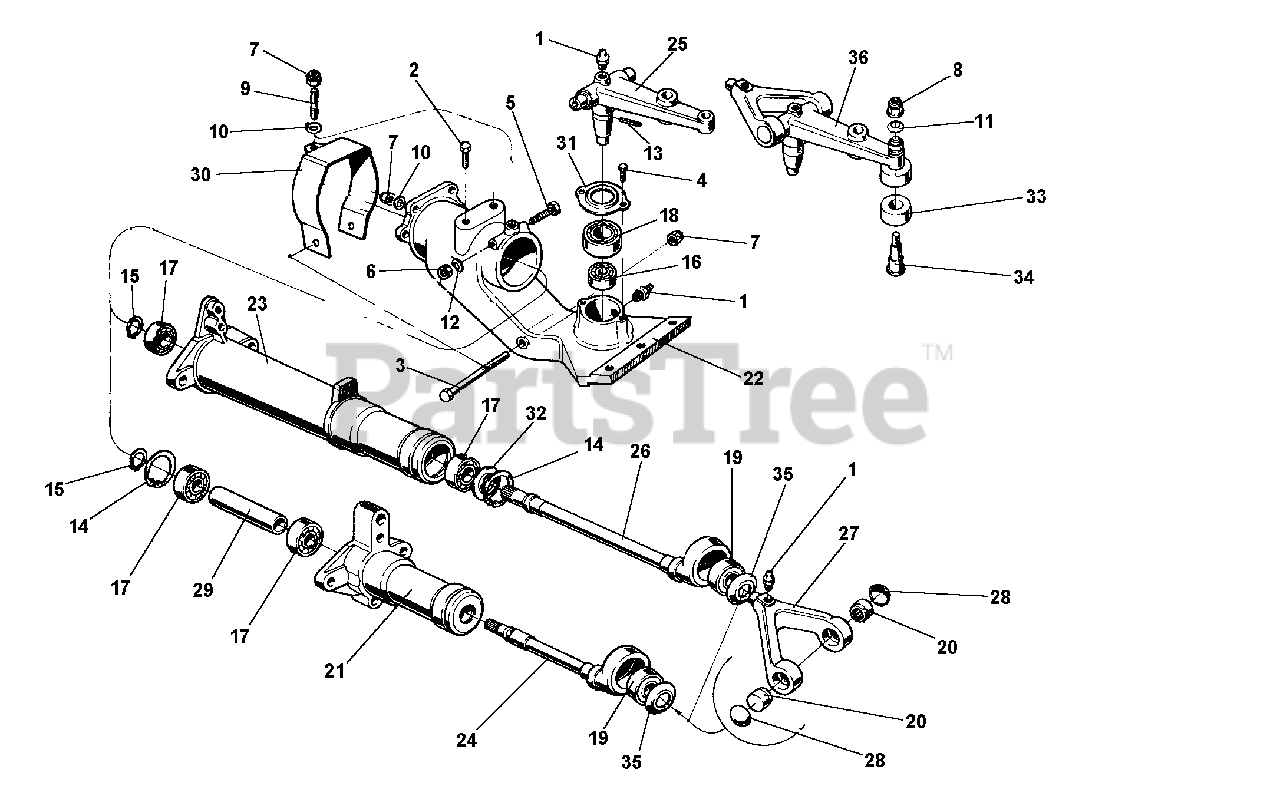

Spline Shaft Cutter Bar Control (SN: 92051 & Above) Parts Diagram

  • Title

1

BCS America 300.00001

GREASE ZIRT M10

$

$

Not available

2

BCS America 311.11150

SCREW TE M8 X 12

$

$

Currently unavailable

3

BCS America 311.11165

SCREW TE M8 X 100

$1.99

$

Usually ships in 5-8 days

0

4

BCS America 31112090

SCREW TE M6 X 16

$0.99

$

In Stock, Qty 5

0

5

BCS America 311.12097

SCREW TE M6 X 70

$1.99

$

Usually ships in 5-8 days

0

6

BCS America 31241060

NUT, SELF LOCKING M6

$0.99

$

In Stock, only 4 left!

0

7

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 11

0

8

BCS America 312.41105

NUT, SELF LOCKING

$1.99

$

Usually ships in 5-8 days

0

9

BCS America 313.12076

STUD

$3.99

$

Usually ships in 5-8 days

0

10

BCS America 314.11084

WASHER, FLAT 8.4

$0.99

$

In Stock, only 4 left!

0

11

BCS America 314.21101

SUPER WASHER 10

$1.99

$

In Stock, only 3 left!

0

12

BCS America 314.24064

LOCK WASHER 6.4

$0.99

$

Usually ships in 5-8 days

0

13

BCS America 342.11041

PIN, LOCKING 4 X 35

$1.49

$

In Stock, only 4 left!

0

14

BCS America 351.11047

CIRCLIP, INTERNAL D 47

$1.99

$

In Stock, only 1 left!

0

15

BCS America 35121020

CIRCLIP, EXTERNAL D 20

$1.49

$

In Stock, Qty 6

0

16

BCS America 37111150

BEARING 15 XZ 35 X 11 6202

$

$

Not available

17

BCS America 37112200

BEARING 20 X 47 X 14 6204 2RS

$

$

Not available

18

BCS America 371.12253

BEARING

$

$

Currently unavailable

19

BCS America 371.13201

BEARING

$19.99

$

Usually ships in 5-8 days

0

20

BCS America 373.32001

BUSHING PIT VIO 44855000

$47.99

$

In Stock, only 2 left!

0

21

BCS America 512.43501

BUSHING WITH FLANGE

$

$

Not available

22

BCS America 512.43512

BAR SUPPORT

$1217.99

$

Usually ships in 5-8 days

0

23

BCS America 51249390

SHAFT HOUSING

$848.99

$

Usually ships in 5-8 days

0

24

BCS America 524.48512

ECCENTRIC SHAFT

$154.68

$

Usually ships in 5-8 days

0

25

BCS America 524.48966

BLADE CRANK

$525.99

$

Usually ships in 5-8 days

0

26

BCS America 524.49392

LONG ECCENTRIC SHAFT

$420.99

$

Usually ships in 5-8 days

0

27

BCS America 52548510

FORK

$176.99

$

Usually ships in 5-8 days

0

28

BCS America 561.43497

BOTTOM

$2.99

$

In Stock, only 2 left!

0

29

BCS America 561.43506

SPACER

$33.99

$

In Stock, only 1 left!

0

30

BCS America 561.43507

ECCENTRIC PROTECTION

$34.99

$

Usually ships in 5-8 days

0

31

BCS America 561.43516

COVER, BEARING

$7.99

$

In Stock, only 1 left!

0

32

BCS America 561.49389

GUARD END

$5.99

$

Usually ships in 5-8 days

0

33

BCS America 564.46667

BLADE BUSHING

$34.99

$

Usually ships in 5-8 days

0

34

BCS America 564.46668

BLADE PIN

$58.99

$

Usually ships in 5-8 days

0

35

BCS America 571.40533

END, LOWER

$10.99

$

In Stock, only 1 left!

0

36

BCS America 590.48965

CRANK WITH FORK

$746.99

$

Usually ships in 5-8 days

0
