Cutter Bar - BCS America Sickle Bar Mower Attachment (1994 & Before) Spline Shaft Combo Bar (SN: 139000 & Above) Parts Diagram

PTO Cutter Bar Attachment

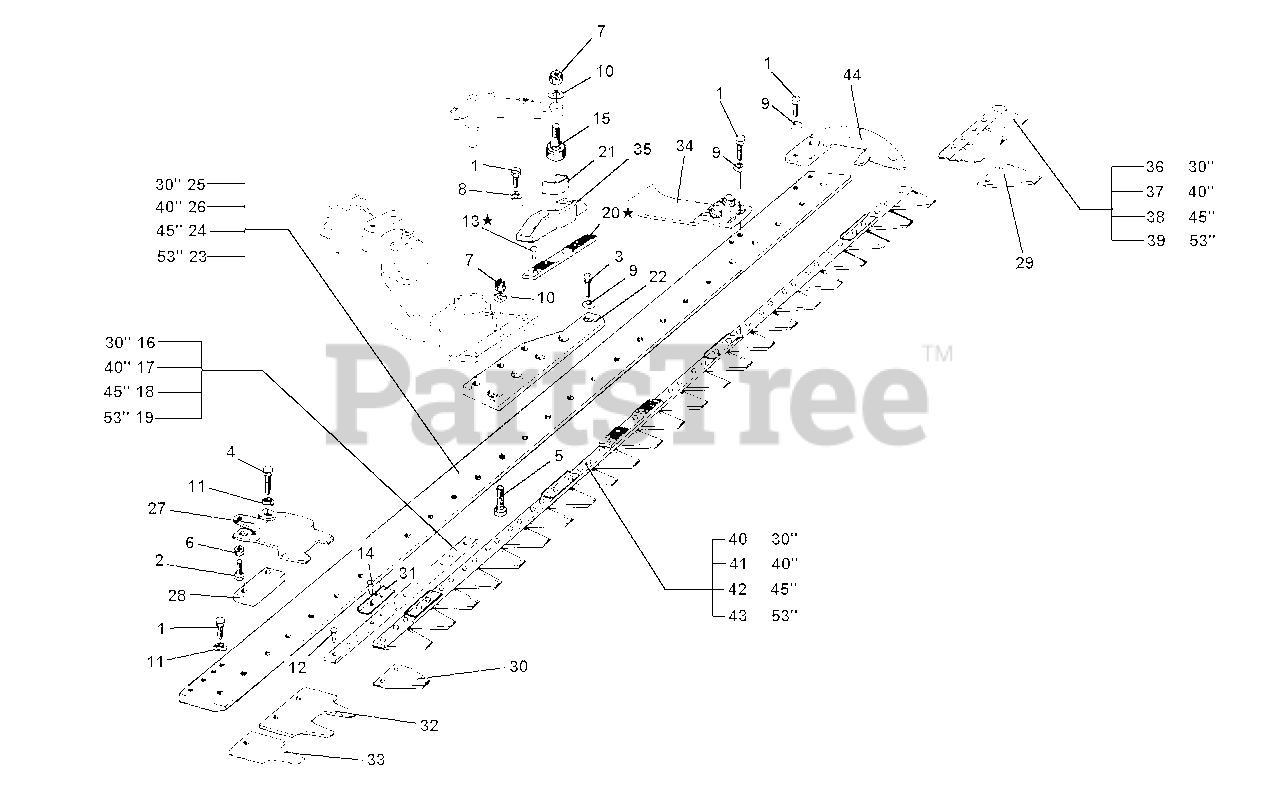

Spline Shaft Combo Bar (SN: 139000 & Above) Parts Diagram

  • Title

1

BCS America 311.11151

SCREW M8X16

$1.99

$

In Stock, only 4 left!

0

2

BCS America 31112150

SCREW M8X20

$1.49

$

In Stock, only 4 left!

0

3

BCS America 311.12151

SCREW M8X25

$1.49

$

In Stock, Qty 5

0

4

BCS America 311.12153

SCREW M8X35

$1.49

$

In Stock, only 2 left!

0

5

BCS America 311.13097

SCREW M10X35

$1.99

$

In Stock, only 3 left!

0

6

BCS America 31211080

NUT M8

$0.99

$

In Stock, only 3 left!

0

7

BCS America 312.41105

NUT, SELF LOCKING

$1.99

$

Usually ships in 5-8 days

0

8

BCS America 314.11084

WASHER, FLAT 8,4

$0.99

$

In Stock, only 4 left!

0

9

BCS America 314.21083

SUPER WASHER 8

$1.49

$

In Stock, Qty 7

0

10

BCS America 314.21101

SUPER WASHER 10

$1.99

$

In Stock, only 3 left!

0

11

BCS America 314.23084

WASHER, LOCK 8,4

$0.99

$

In Stock, Qty 10

0

12

BCS America 33112530

RIVET 5.3X14

$

$

Not available

13

BCS America 331.12531

RIVET 5.3X18

$0.99

$

In Stock, Qty 10

0

14

BCS America 331.12534

RIVET 5.3X16

$

$

Not available

15

BCS America 52448920

BLADE CONTROL PIN

$44.99

$

In Stock, only 1 left!

0

16

BCS America 561.5905

BLADE STRIP 30"

$

$

Currently unavailable

17

BCS America 561.59051

BLADE STRIP 40"

$

$

Currently unavailable

18

BCS America 561.59052

BLADE STRIP 45"

$

$

Currently unavailable

19

BCS America 561.59053

BLADE STRIP 53"

$

$

Currently unavailable

20

BCS America 561.59058

PLATE FOR BLADE COUPLING

$27.99

$

Usually ships in 5-8 days

0

21

BCS America 563.48539

PLATE

$

$

Currently unavailable

22

BCS America 563.48912

BAR COUPLING

$166.99

$

Usually ships in 5-8 days

0

23

BCS America 563.48914

SLIDE FOR CUTTER BAR 53"

$461.99

$

Usually ships in 5-8 days

0

24

BCS America 563.48915

SLIDE FOR CUTTER BAR 45"

$415.99

$

Usually ships in 5-8 days

0

25

BCS America 563.48929

SLIDE FOR CUTTER BAR 30"

$257.99

$

In Stock, only 1 left!

0

26

BCS America 56348930

SLIDE FOR CUTTER BAR 40"

$366.99

$

Usually ships in 5-8 days

0

27

BCS America 56351400

BLADE HOLDER

$34.99

$

In Stock, only 1 left!

0

28

BCS America 563.51402

BLADE GUIDE BLOCK

$

$

Currently unavailable

29

BCS America 563.59015

INDIVIDUAL BLADE, SERATED

$4.99

$

Usually ships in 5-8 days

0

30

BCS America 563.59016

INDIVIDUAL BLADE, SMOOTH

$4.99

$

Usually ships in 5-8 days

0

31

BCS America 563.59061

PLATE FOR CLEANING

$3.99

$

In Stock, only 4 left!

0

32

BCS America 565.50648

DOUBLE FINGER

$58.99

$

Usually ships in 5-8 days

0

33

BCS America 565.50649

SINGLE FINGER

$34.99

$

Usually ships in 5-8 days

0

34

BCS America 580.46677

SKID

$39.99

$

Usually ships in 5-8 days

0

35

BCS America 590.48536

BLADE COUPLER

$

$

Currently unavailable

36

BCS America 590.59063

BLADE ASSEMBLY, SERATED 30"

$

$

Currently unavailable

37

BCS America 590.59064

BLADE ASSEMBLY, SERATED 40"

$

$

Currently unavailable

38

BCS America 590.59065

BLADE ASSEMBLY, SERATED 45"

$

$

Currently unavailable

39

BCS America 590.59066

BLADE ASSEMBLY, SERATED 53"

$

$

Currently unavailable

40

BCS America 590.59069

BLADE ASSEMBLY, SMOOTH 30"

$

$

Currently unavailable

41

BCS America 59059070

BLADE ASSEMBLY, SMOOTH 40"

$

$

Not available

42

BCS America 590.59071

BLADE ASSEMBLY, SMOOTH 45"

$

$

Currently unavailable

43

BCS America 590.59072

BLADE ASSEMBLY, SMOOTH 53"

$

$

Currently unavailable

44

BCS America 922.48918

END GUARD, PAIR

$

$

Not available
