Cutter Bar - BCS America Duplex Sickle Bar Mower Attachment Cutter Bar (2006 & Before) Parts Diagram

Duplex Cutter Bar Attachment

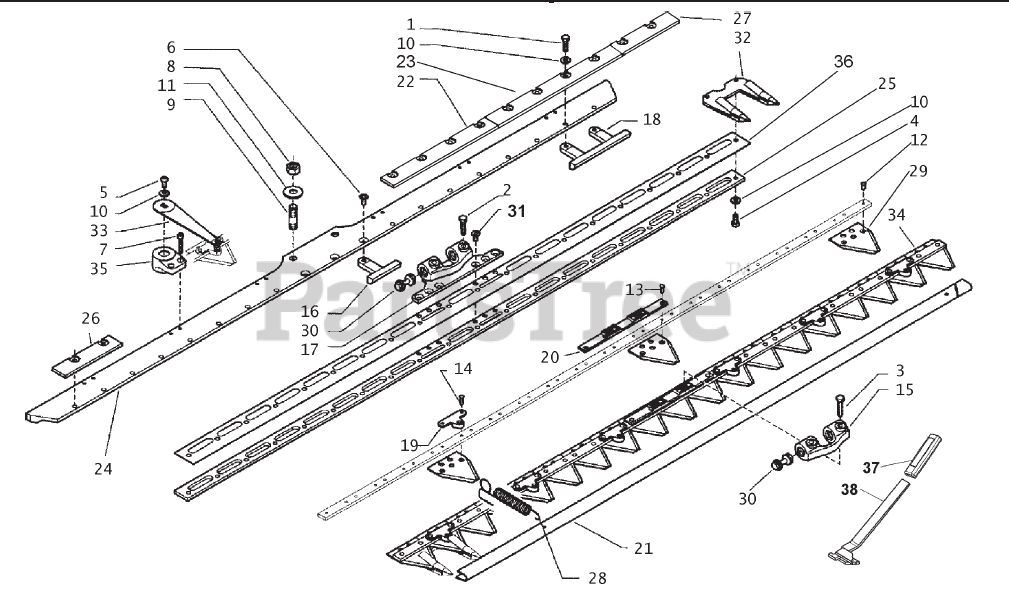

Cutter Bar (2006 & Before) Parts Diagram

  • Title

1

BCS America 311.12150

CAPSCREW, M8X20

Note:

$1.49

$

In Stock, only 4 left!

0

2

BCS America 311.12152

CAPSCREW, M8X30

$1.49

$

In Stock, only 4 left!

0

3

BCS America 311.12153

CAPSCREW, M8X35

$1.49

$

In Stock, only 2 left!

0

4

BCS America 311.13092

CAPSCREW, M8X1X15

$1.99

$

Usually ships in 5-8 days

0

5

BCS America 311.21013

SCREW, M8X16

$3.99

$

Usually ships in 5-8 days

0

6

BCS America 311.32565

SCREW, M8X16

$1.49

$

Usually ships in 5-8 days

0

7

BCS America 311.52063

SCREW, M8X20

$1.49

$

Usually ships in 5-8 days

0

8

BCS America 312.21151

NUT, M14X1 5.6S

$1.99

$

In Stock, Qty 5

0

9

BCS America 313.12141

STUD, M14X1.5X48X12X20

$5.49

$

In Stock, only 4 left!

0

10

BCS America 314.21083

WASHER, SUPER, M8

$1.49

$

In Stock, Qty 7

0

11

BCS America 314.21251

WASHER, SUPER, M14

$3.99

$

In Stock, only 3 left!

0

12

BCS America 331.25312

RIVET, 5.3X12

$

$

Not available

13

BCS America 331.25314

RIVET, 5.3X14

$0.99

$

Usually ships in 5-8 days

0

14

BCS America 331.25316

RIVET, 5.3X16

$

$

Not available

15

BCS America 521.46665

STEEL BLADE COUPLING

$

$

Currently unavailable

16

BCS America 521.58580

GUIDE LOWER

Note:

$50.99

$

Usually ships in 5-8 days

0

17

BCS America 521.58581

COUPLER XL COMB

$156.99

$

Usually ships in 5-8 days

0

18

BCS America 521.58589

GUIDE LOWER

$71.99

$

Usually ships in 5-8 days

0

19

BCS America 524.58599

COUPLER BLADE HOLDER

$

$

Currently unavailable

20

BCS America 561.58613

KNIFE PLATE

$

$

Not available

21A

BCS America 561.58627

GUARD, BLADE 47"

$44.99

$

Usually ships in 5-8 days

0

21B

BCS America 561.58559

GUARD, BLADE 59"

$

$

Currently unavailable

21C

BCS America 561.58626

GUARD, BLADE 71"

$

$

Currently unavailable

22

BCS America 563.58578

LOW BLADE GUIDE INTERNAL

$58.99

$

Usually ships in 5-8 days

0

23

BCS America 563.58579

LOW BLADE GUIDE INT. 59 & 71"

$71.99

$

Usually ships in 5-8 days

0

24A

BCS America 563.58621

ROD CENTER 47"

$553.99

$

Usually ships in 5-8 days

0

24B

BCS America 563.58582

ROD CENTER 59"

$403.64

$

Usually ships in 5-8 days

0

24C

BCS America 563.58602

ROD CENTER 71"

$

$

Currently unavailable

25A

BCS America 563.58622

STRIP 47"

$95.99

$

Usually ships in 5-8 days

0

25B

BCS America 563.58583

STRIP 59"

$113.99

$

Usually ships in 5-8 days

0

25C

BCS America 563.58603

STRIP 71"

$

$

Currently unavailable

26A

BCS America 563.58628

BLADE GUIDE 47"

$61.99

$

Usually ships in 5-8 days

0

26B

BCS America 563.58606

BLADE GUIDE 71"

$

$

Currently unavailable

27A

BCS America 563.58628

BLADE GUIDE 47"

$61.99

$

Usually ships in 5-8 days

0

27B

BCS America 563.58605

BLADE GUIDE 71"

$

$

Currently unavailable

28

BCS America 580.27286

SPRING

$19.99

$

Usually ships in 5-8 days

0

29

BCS America 580.28096

KNIFE SECTION XL THICK

$6.49

$

In Stock, only 1 left!

0

30

BCS America 580.46666

SCREW BLADE COUPLING

$32.99

$

Usually ships in 5-8 days

0

31

BCS America 580.58522

SCREW M8X1X14

$4.99

$

Usually ships in 5-8 days

0

32

BCS America 590.28930

FINGER COMPLETE

Note:

$81.99

$

In Stock, only 1 left!

0

33

BCS America 590.58601

SPRING COMPLETE

$

$

Not available

34A

BCS America 590.58625

BLADE COMPLETE 47"

$

$

Currently unavailable

34B

BCS America 590.58585

BLADE COMPLETE 59"

$

$

Currently unavailable

34C

BCS America 590.58611

BLADE COMPLETE 71"

$

$

Not available

35

BCS America 592.58614

KNIFE GUIDE SUPPORT ASSEMBL

$204.99

$

Usually ships in 5-8 days

0

36A

BCS America 563.58623

STRIP 47"

$78.99

$

Usually ships in 5-8 days

0

36B

BCS America 563.58584

STRIP 59"

$112.99

$

Usually ships in 5-8 days

0

36C

BCS America 563.58604

STRIP 71"

$

$

Currently unavailable

37

BCS America 551.02714

GRIP

$14.99

$

Usually ships in 5-8 days

0

38

BCS America 590.58593

TOOL

$70.99

$

Usually ships in 5-8 days

0
