Cutter Bar - BCS America 30", 32", 40" Sickle Bar Attachment 40" Cutter Bar Control Parts Diagram

30", 32", 40" Cutter Bar Attachment

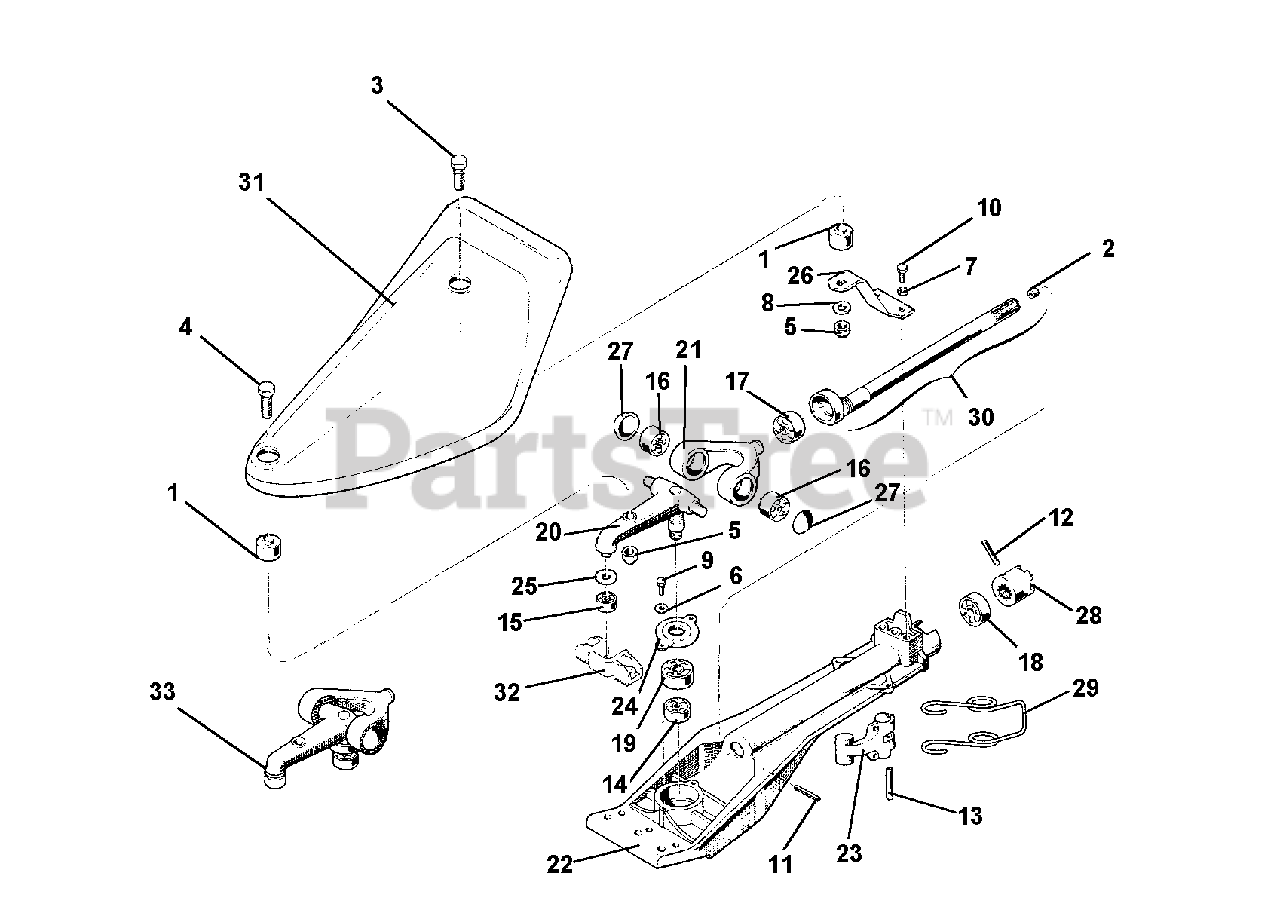

40" Cutter Bar Control Parts Diagram

  • Title

1

BCS America 300.10102

SILENTBLOC

$68.99

$

In Stock, only 1 left!

0

2

BCS America 30030010

BUSHING

$9.49

$

Usually ships in 5-8 days

0

3

BCS America 311.12214

SCREW M10 X 45

$1.99

$

Usually ships in 5-8 days

0

4

BCS America 311.12215

SCREW M10 X 60

$1.99

$

Usually ships in 5-8 days

0

5

BCS America 31241100

NUT, SELF LOCKING M10

$1.49

$

In Stock, only 2 left!

0

6

BCS America 314.22064

WASHER, LOCK 6.4

$0.99

$

Usually ships in 5-8 days

0

7

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 10

0

8

BCS America 314.23105

WASHER, LOCK 10.5

$1.49

$

In Stock, Qty 5

0

9

BCS America 31510060

SCREW M6 X 12

$

$

Not available

10

BCS America 315.10082

SCREW M8 X 15

$

$

Currently unavailable

11

BCS America 342.11055

PIN, LOCKING 5 X 40

$1.49

$

Usually ships in 5-8 days

0

12

BCS America 342.11064

PIN, LOCKING 6 X 40

$1.49

$

Usually ships in 5-8 days

0

13

BCS America 342.13084

SPIRAL PIN 8 X 40

$1.99

$

Usually ships in 5-8 days

0

14

BCS America 37111120

BEARING 12 X 37 X 12 6301

$39.99

$

Usually ships in 5-8 days

0

15

BCS America 371.12101

BEARING 62200-2RS 10 X 30 X 14

$64.99

$

Usually ships in 5-8 days

0

16

BCS America 37112150

BEARING 15 X 35 X 11 6202 2RS

$13.99

$

Usually ships in 5-8 days

0

17

BCS America 371.12171

BEARING SKF 17 X 40 X 12 6203 ST

$10.99

$

In Stock, only 3 left!

0

18

BCS America 371.12203

BEARING 20 X 42 X 12 6004 2RS

$16.99

$

Usually ships in 5-8 days

0

19

BCS America 37113200

BEARING 20 X 47 X 14 6204-Z

$12.99

$

Usually ships in 5-8 days

0

20

BCS America 525.50677

BLADE CONTROL CRANK

$

$

Currently unavailable

21

BCS America 525.50678

FORK

$

$

Currently unavailable

22

BCS America 532.50658

CUTTER BAR SUPPORT

$404.68

$

Usually ships in 5-8 days

0

23

BCS America 552.50638

LEVER

$17.99

$

Usually ships in 5-8 days

0

24

BCS America 561.50609

BEARING COVER

$11.99

$

Usually ships in 5-8 days

0

25

BCS America 563.43518

PROTECTION WASHER

$2.99

$

Usually ships in 5-8 days

0

26

BCS America 563.50633

ELASTIC CONNECTION

$19.99

$

In Stock, only 1 left!

0

27

BCS America 563.50681

CLOSING DISC

$2.99

$

Usually ships in 5-8 days

0

28

BCS America 564.50605

PTO COUPLING

$156.99

$

In Stock, only 1 left!

0

29

BCS America 580.50639

HOOK

$27.99

$

Usually ships in 5-8 days

0

30

BCS America 590.50601

SHAFT WITH BUSHING

$394.99

$

Usually ships in 5-8 days

0

31

BCS America 59050640

HOOD

$303.99

$

Usually ships in 5-8 days

0

32

BCS America 590.50674

NYLON COUPLING

$

$

Not available

33

BCS America 590.50685

CRANK COMPLETE

$

$

Currently unavailable
