Cutter Bar - BCS America 30", 32", 40" Sickle Bar Attachment 32" Cutter Bar Assembly Parts Diagram

30", 32", 40" Cutter Bar Attachment

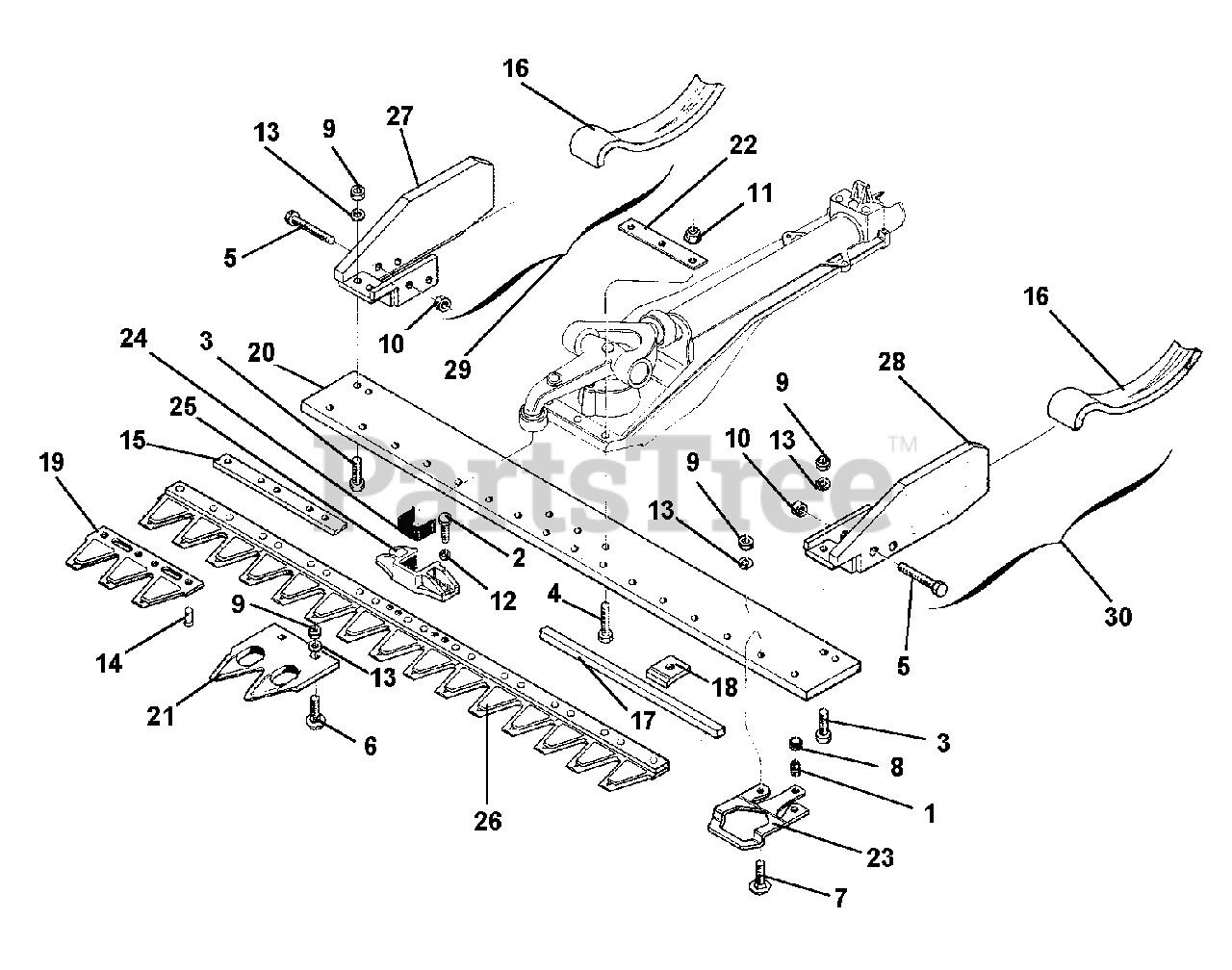

32" Cutter Bar Assembly Parts Diagram

  • Title

1

BCS America 311.00781

SCREW M8 X 14

$1.99

$

In Stock, Qty 6

0

2

BCS America 31112090

SCREW TE M6 X 16

$0.99

$

In Stock, only 4 left!

0

3

BCS America 311.12151

SCREW M8 X 25

$1.49

$

In Stock, Qty 5

0

4

BCS America 311.12153

SCREW M8 X 35

$1.49

$

In Stock, only 2 left!

0

5

BCS America 311.12162

SCREW M8 X 80

$2.49

$

Usually ships in 5-8 days

0

6

BCS America 311.22803

SCREW M8 X 25

$1.49

$

Usually ships in 5-8 days

0

7

BCS America 311.22804

SCREW M8 X 30

$1.99

$

Usually ships in 5-8 days

0

8

BCS America 312.00124

NUT M8

$1.49

$

Usually ships in 5-8 days

0

9

BCS America 31211080

NUT M8

$0.99

$

In Stock, only 3 left!

0

10

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 11

0

11

BCS America 312.41083

NUT, SELF LOCKING M8

$1.49

$

Usually ships in 5-8 days

0

12

BCS America 314.22064

WASHER, LOCK 6.4

$0.99

$

Usually ships in 5-8 days

0

13

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 10

0

14

BCS America 33112530

RIVET 5.3 X 14

$

$

Not available

15

BCS America 561.50621

BLADE STRIP 32"

$41.99

$

Usually ships in 5-8 days

0

16

BCS America 561.50669

SKID

$46.30

$

Usually ships in 5-8 days

0

17

BCS America 563.27566

BLADE GUIDE

$17.02

$

Usually ships in 5-8 days

0

18

BCS America 56327610

GUIDE HOLDER

$2.49

$

Usually ships in 5-8 days

0

19

BCS America 563.50618

THREE BLADE SECTION

$57.99

$

Usually ships in 5-8 days

0

20

BCS America 563.50623

CENTRAL BAR 32"

$

$

Currently unavailable

21

BCS America 563.50624

DOUBLE BLADE

$

$

Currently unavailable

22

BCS America 563.50631

SUPPORT PLATE

$1.99

$

Usually ships in 5-8 days

0

23

BCS America 56350650

BLADE HOLDER

$

$

Not available

24

BCS America 565.50629

PLATE

$1.99

$

In Stock, only 1 left!

0

25

BCS America 590.50616

NYLON COUPLING

$16.99

$

Usually ships in 5-8 days

0

26

BCS America 59050620

BLADE SECTION 32"

$147.12

$

Usually ships in 5-8 days

0

27

BCS America 590.50664

RIGHT SKID MOUNT

$

$

Currently unavailable

28

BCS America 590.50665

LEFT SKID MOUNT

$

$

Currently unavailable

29

BCS America 59250660

RIGHT SKID ASSEMBLY

$170.99

$

Usually ships in 5-8 days

0

30

BCS America 592.50661

LEFT SKID ASSEMBLY

$175.99

$

Usually ships in 5-8 days

0
