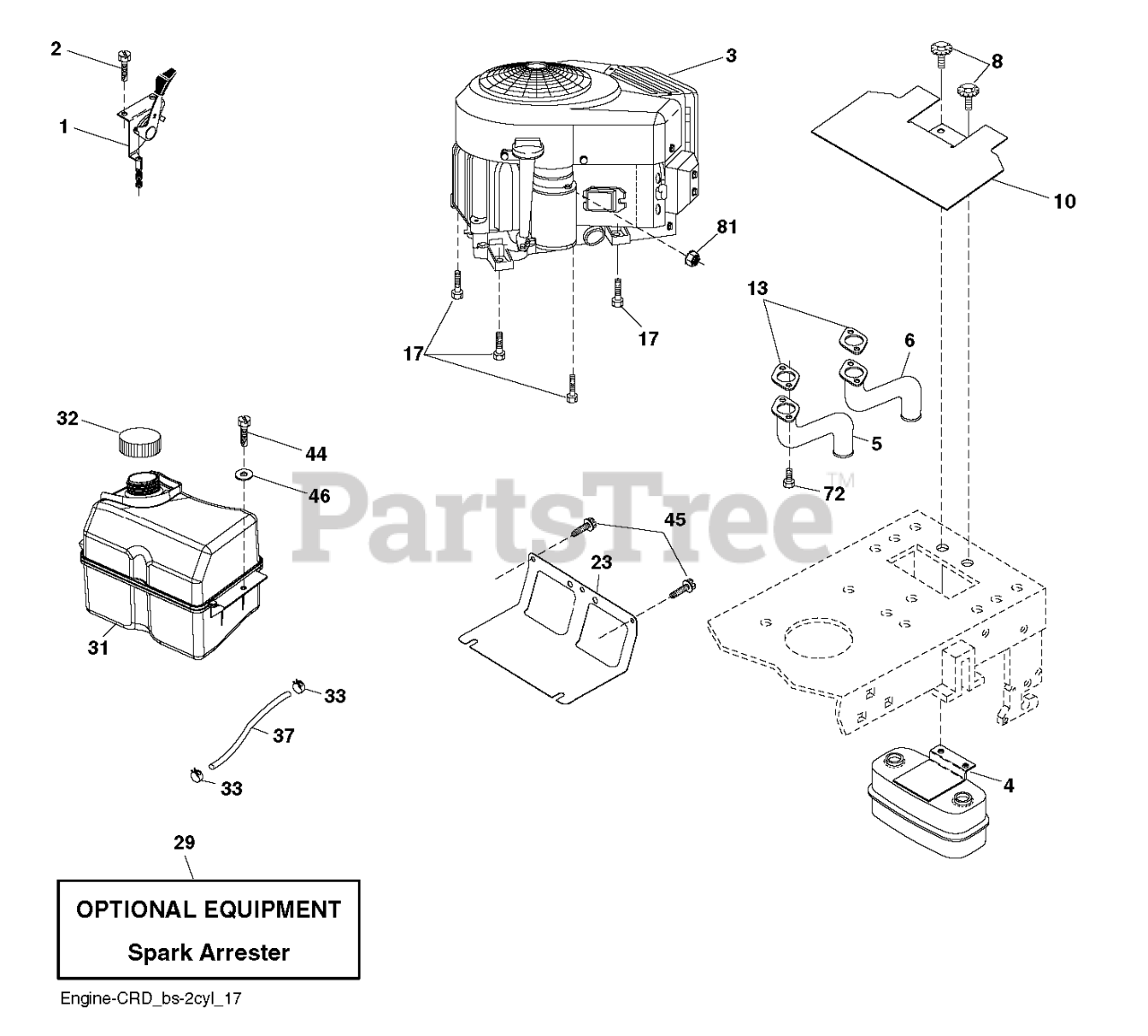

CTH 2642 TE (960610338-00) - Husqvarna Lawn Tractor (2011-05) ENGINE Parts Diagram

Lawn Tractor

ENGINE Parts Diagram

  • Title

81

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

6

Husqvarna 581881001

EXHAUST.TUBE.RH.B&S.TWIN.INTEK

$27.99

$

In Stock, only 1 left!

0

4

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

Usually ships in 3-10 days

0

5

Husqvarna 581881101

EXHAUST.TUBE.LH.BS/TWIN

$44.99

$

In Stock, only 1 left!

0

31

Husqvarna 532407489

TANK.ASM.FUEL.FR.2.5GA.
(Superseded to 581290101)

$120.99

$

In Stock, only 1 left!

0

23

Husqvarna 532436086

SHIELD.BROWNING.PNT.GT.V2
(Superseded to 532439870)

$17.99

$

In Stock, only 2 left!

0

13

Husqvarna 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$11.99

$

In Stock, Qty 11

0

8

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 5

0

72

Husqvarna 532183906

SCREW.SOCKET.HEAD.5/16-18

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

17

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

1

Husqvarna 532423502

CONTROL.TH/CK.COBRA.B&S.TWN.BK

$30.99

$

In Stock, only 1 left!

0

45

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

3

000000000

Note: ENGINE B&S MODEL 44P777-1573-G5 (442257)

$

$

Not available

2

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

44

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

Usually ships in 3-10 days

0

46

Husqvarna 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0
