CTH 2642 TE (960610338-00) - Husqvarna Lawn Tractor (2011-05) CHASSIS / FRAME Parts Diagram

Lawn Tractor

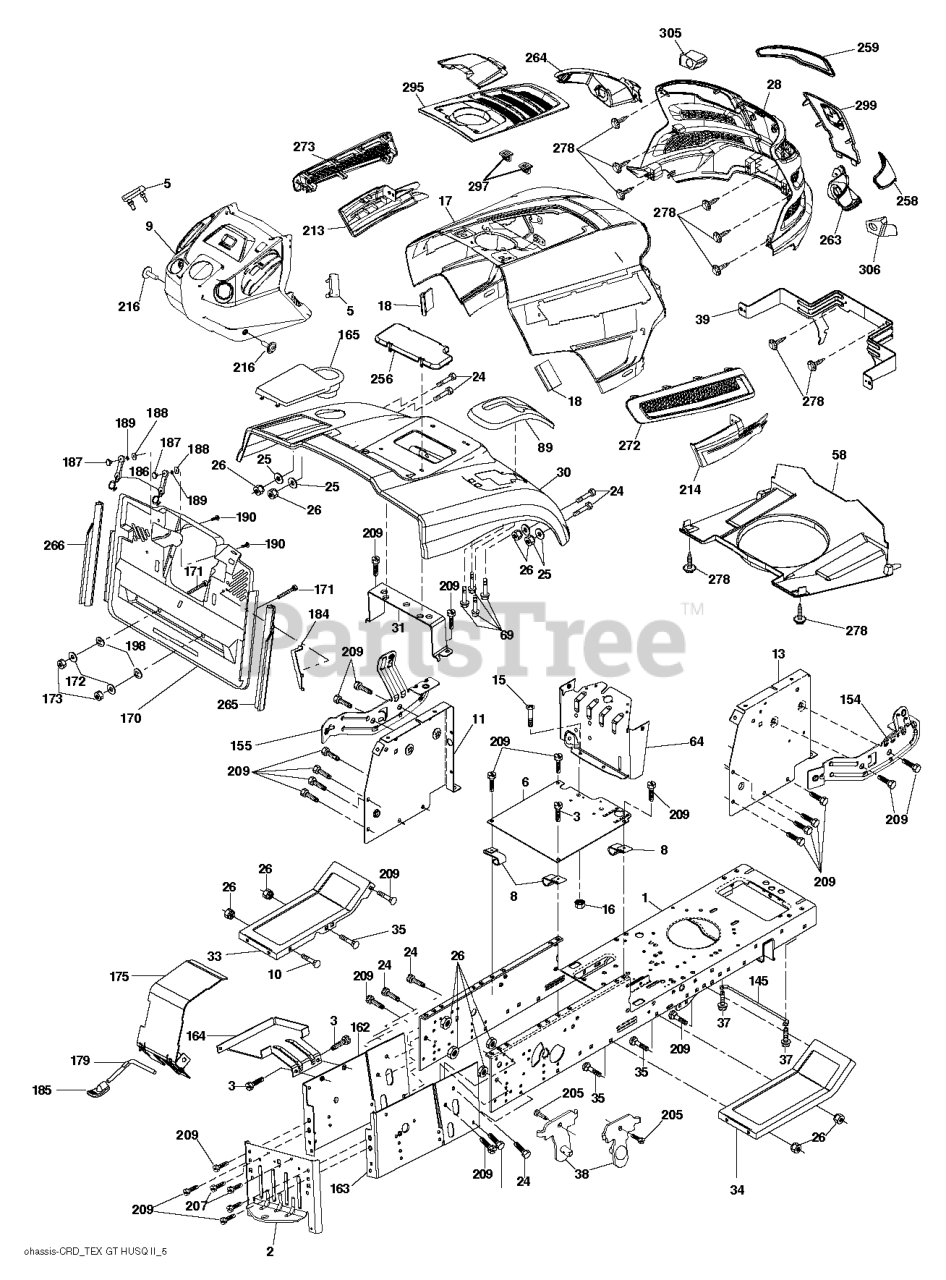

CHASSIS / FRAME Parts Diagram

  • Title

5

Husqvarna 532407590

BUMPER DASH

$6.49

$

In Stock, Qty 6

0

170

Husqvarna 532199488

$

$

Not available

186

532160793

LATCH ASSY

$

$

Not available

198

Husqvarna 532168937

NUT

$4.99

$

Usually ships in 3-10 days

0

171

Husqvarna 872140620

BOLT

$3.99

$

Usually ships in 3-10 days

0

214

Husqvarna 532439730

SIDE.TRIM.RH.GT.HUSQ.II

$14.99

$

Usually ships in 3-10 days

0

306

Husqvarna 532437455

INSERT.REFLECTIVE.RH.HUSQ.GTII

$18.99

$

Usually ships in 3-10 days

0

163

Husqvarna 532180383

BRACKET EXTEN CHASSIS RH CRD
(Superseded to 583100901)

$42.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532440653

GRILLE.SUBSTRATE.2011.
(Superseded to 597247201)

$100.99

$

In Stock, only 1 left!

0

25

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

213

Husqvarna 532439729

SIDE.TRIM.LH.GT.HUSQ.II.GRAY

$17.99

$

In Stock, only 1 left!

0

13

Husqvarna 532178298

PANEL DASH RH

$

$

Not available

33

Husqvarna 532442578

FOOTREST.PNT.LH.GREY
(Superseded to 532182507)

$43.99

$

Usually ships in 3-10 days

0

295

Husqvarna 532444484

VENT.TOP.ASM.HUSQ.GT2
(Superseded to 587485801)

$26.99

$

In Stock, only 4 left!

0

17

Husqvarna 532441177

HOOD.ASM.HUSQVARNA.GT.TEX.ORAN
(Superseded to 587483301)

$85.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532165156

BRACKET SUPPORT FENDER

$

$

Not available

258

Husqvarna 532443385

LENS.HEADLIGHT.RH.GTII.2011

$13.99

$

In Stock, only 1 left!

0

155

Husqvarna 532408691

$

$

Currently unavailable

58

Husqvarna 532439774

AIR.DUCT.GTV.BLACK

$53.99

$

Usually ships in 3-10 days

0

24

Husqvarna 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

154

Husqvarna 532408690

$

$

Currently unavailable

278

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

264

Husqvarna 532439735

BEZEL LIGHT.LH.GT.II.MYLAR
(Superseded to 587464501)

$13.99

$

In Stock, only 1 left!

0

179

Husqvarna 532188202

ROD PIVOT FBI
(Superseded to 583170601)

$27.99

$

Usually ships in 3-10 days

0

209

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

2

Husqvarna 532180384

DRAWBAR
(Superseded to 583101001)

$

$

Not available

3

Husqvarna 817060612

SCREW 3/8-16X3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

175

Husqvarna 532188203

DOOR TRAP
(Superseded to 583707801)

$24.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532442698

NEEDS DESCRIPTION

$

$

Currently unavailable

305

Husqvarna 532437456

INSERT.REFLECTIVE.LH.HUSQ.GTII

$18.99

$

In Stock, only 1 left!

0

--

Husqvarna 532424918

KIT.GUARD.BRUSH.HUSQVARNA
(Superseded to 532431882)

$153.99

$

Usually ships in 3-10 days

0

26

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 874180512

Screw, Machine, Truss Head 5/16-18 UNC x 3/4

$

$

Not available

256

Husqvarna 532181361

COVER FENDER CRD
(Superseded to 532197364)

$133.99

$

Usually ships in 3-10 days

0

89

Husqvarna 532441574

CONSOLE.CRD.AUTO.GRY

$8.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532174620

CHASSIS

$136.99

$

Usually ships in 3-10 days

0

185

Husqvarna 532441416

KNOB.BRAKE.PARKING.ROD

$11.99

$

Usually ships in 3-10 days

0

145

Husqvarna 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 2 left!

0

273

Husqvarna 532439727

VENT.SIDE.LH.GT.HUSQ.II.498

$17.99

$

In Stock, only 3 left!

0

216

Husqvarna 817060410

SCREW 14-20 X 5/8

$7.49

$

Usually ships in 3-10 days

0

165

Husqvarna 532441772

COVER.BATTERY.BAG.ELE.CRD.498

$

$

Not available

207

Husqvarna 817670508

SCREW, 5/16-18 X 1/2

$9.49

$

In Stock, only 2 left!

0

--

Husqvarna 532187801

PLUG

$4.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532199395

$

$

Not available

30

Husqvarna 532441265

FENDER.PNT.CRD.MS-668

$

$

Not available

6

Husqvarna 532184419

PLATE
(Superseded to 583133601)

$12.99

$

Usually ships in 3-10 days

0

263

Husqvarna 532439734

BEZEL LIGHT.RH.GT.II.MYLAR
(Superseded to 587464801)

$13.99

$

In Stock, Qty 10

0

39

Husqvarna 532436670

BRACKET.PIVOT.HOOD.GT.HUSQ.II

$54.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532167203

PANEL DASH LH

$24.99

$

Usually ships in 3-10 days

0

10

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$4.99

$

Usually ships in 3-10 days

0

189

Husqvarna 810071000

LOCKWASHER #10

$4.99

$

In Stock, Qty 11

0

205

Husqvarna 817490608

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

272

Husqvarna 532439728

VENT.SIDE.RH.GT.HUSQ.II.

$17.99

$

In Stock, only 2 left!

0

265

Husqvarna 532185704

SEALING
(Superseded to 583146701)

$21.99

$

Usually ships in 3-10 days

0

297

Husqvarna 532199145

CLIP.RETAINER.TINNER.

$6.49

$

In Stock, only 4 left!

0

38

Husqvarna 532181748

BRACKET ASM PIVOT MOWER REAR
(Superseded to 583117401)

$11.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532442579

FOOTREST.PNT.RH.GREY
(Superseded to 532182508)

$

$

Not available

18

Husqvarna 532404742

BUMPER.HOOD.TEX.HUSQVARNA

$6.99

$

In Stock, only 2 left!

0

164

Husqvarna 532165605

SUPPORT

$

$

Not available

8

Husqvarna 532126471

CLIP,INSULATOR

$4.99

$

Usually ships in 3-10 days

0

37

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

299

Husqvarna 532444481

APPLIQUE.SUBASM.GT.HUSQ.II

$40.99

$

Usually ships in 3-10 days

0

162

Husqvarna 532180382

BRACKET
(Superseded to 583100801)

$47.99

$

Usually ships in 3-10 days

0

16

Husqvarna 873510500

NUT
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

190

Husqvarna 871081010

SCREW
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

69

Husqvarna 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

35

Husqvarna 872110606

BOLT

$4.99

$

Usually ships in 3-10 days

0

187

Husqvarna 532125004

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

172

Husqvarna 819132016

WASHER
(Superseded to 819132012)

$3.49

$

Usually ships in 3-10 days

0

173

Husqvarna 873510600

NUT

$6.49

$

Usually ships in 3-10 days

0

266

Husqvarna 532185703

SEALING
(Superseded to 583146601)

$21.99

$

Usually ships in 3-10 days

0

188

Husqvarna 819061216

WASHER

$4.99

$

Usually ships in 3-10 days

0

259

Husqvarna 532439733

LENS.HEADLIGHT.LH.GTII.2011

$13.99

$

In Stock, only 1 left!

0

184

Husqvarna 532174662

BRACKET.ACTUATOR.BAGGER.SRD

$5.99

$

Usually ships in 3-10 days

0
