CTH 2642 (960610306-01) - Husqvarna Lawn Tractor (2011-02) ENGINE Parts Diagram

Lawn Tractor

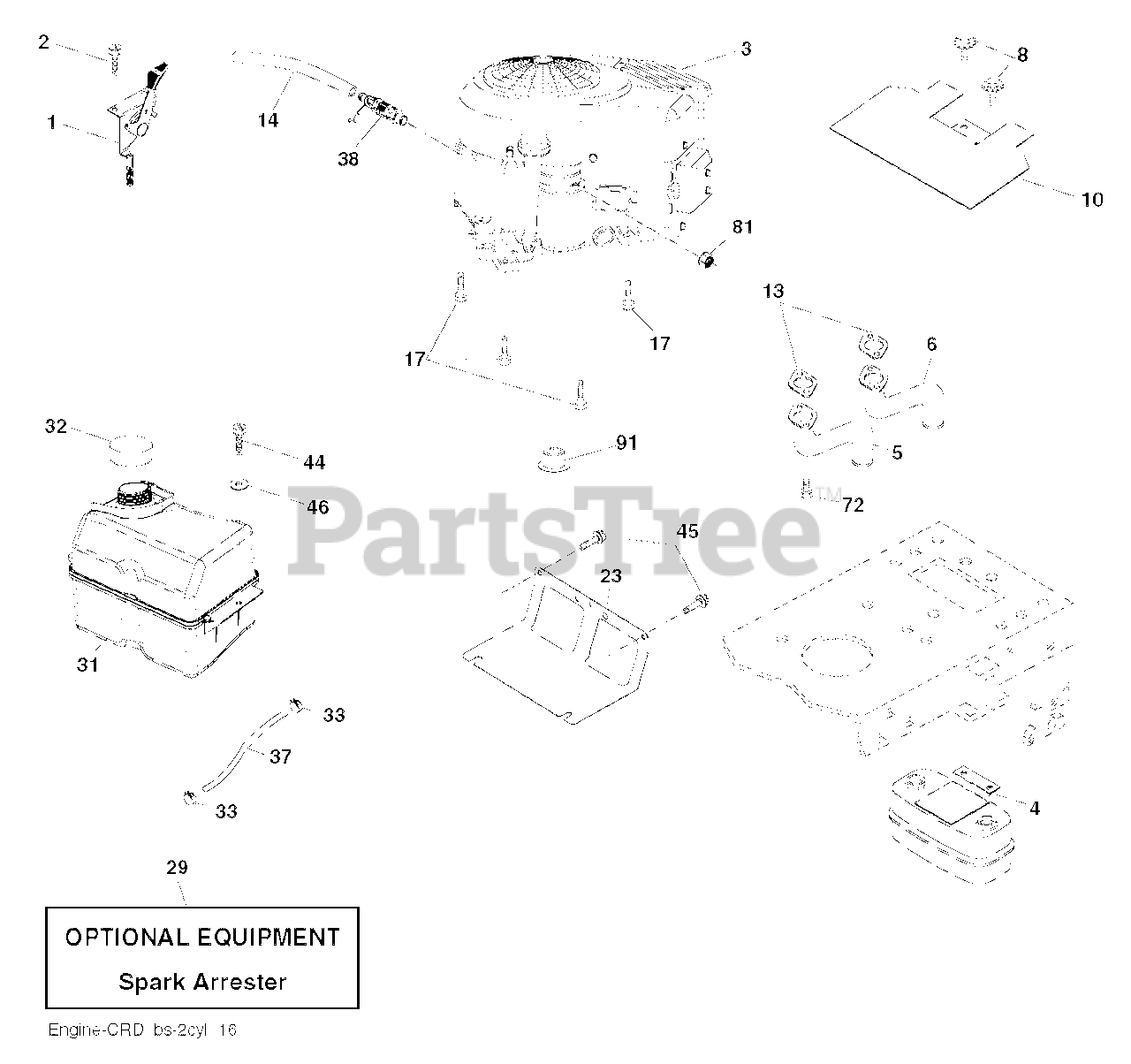

ENGINE Parts Diagram

  • Title
1

Husqvarna 532423502

CONTROL.TH/CK.COBRA.B&S.TWN.

$30.99

$

In Stock, only 1 left!

0

2

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

3

000000000

Note: ENGINE B S MODEL 44P777-1573-G5 (442257)

$

$

Not available

4

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532159955

RP.EXHAUST.TUBE.LH.BS/TWIN
(Superseded to 581881101)

$44.99

$

In Stock, only 1 left!

0

6

Husqvarna 532160589

EXHAUST.TUBE.RH.BS/TWIN
(Superseded to 581881001)

$27.99

$

In Stock, only 1 left!

0

8

Husqvarna 532171877

BOLT, 5/16-18 X 1 3/4

$7.49

$

In Stock, Qty 5

0

10

Husqvarna 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 4 left!

0

17

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

23

Husqvarna 532169837

SHIELD.BROWNING.DBR.GUARD

$10.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

31

Husqvarna 532407489

TANK.ASM.FUEL.FR.2.5GA.
(Superseded to 581290101)

$120.99

$

In Stock, only 1 left!

0

32

Husqvarna 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

37

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$11.99

$

In Stock, Qty 11

0

38

Husqvarna 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, only 4 left!

0

44

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

Usually ships in 3-10 days

0

45

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

72

Husqvarna 532183906

SCREW.SOCKET.HEAD.5/16-18

$6.49

$

Usually ships in 3-10 days

0

81

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

91

Husqvarna 532187495

BUSHING.1.375OD

$6.49

$

In Stock, only 1 left!

0
